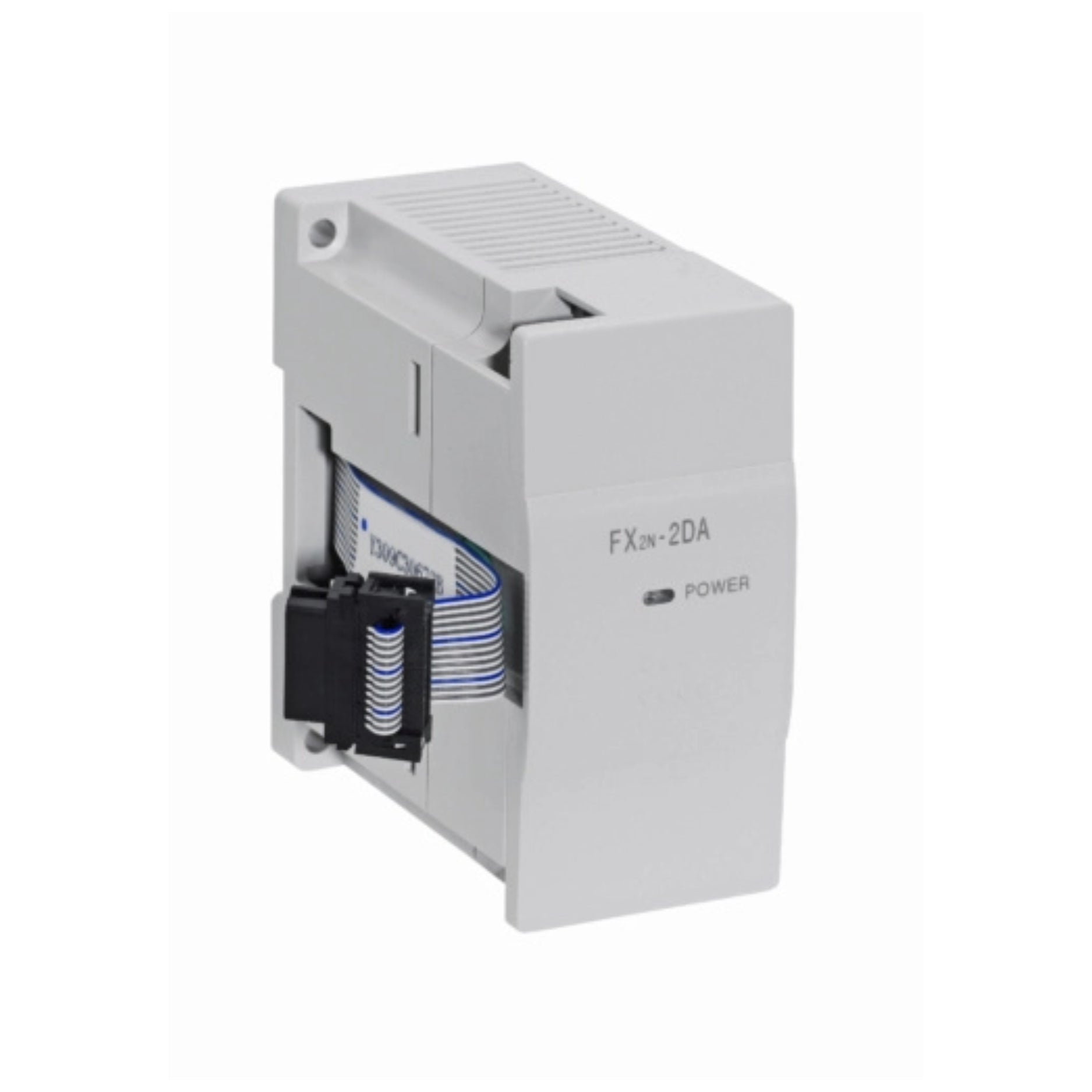

Mitsubishi FX2N-2DA

Mitsubishi FX2N-2DA | 2-Channel Analog Output Module – FX2N Series

Overview

The Mitsubishi FX2N-2DA is a 2-channel analog output expansion module designed for use with the FX2N Series PLCs. It supports both voltage and current output, making it suitable for a wide range of industrial control applications requiring analog signal generation such as speed regulation, actuator positioning, and process control.

Key Features

• Channels: 2 analog outputs

• Output Types: Voltage (0–10V) and Current (4–20 mA)

• Resolution: 12-bit (1/4096 steps)

• Conversion Speed: Approx. 2 ms/channel

• Installation: Direct mount on FX2N main unit or extension base

• LED Indicators: Status and diagnostic indicators

Technical Specifications

• Model: FX2N-2DA

• Series: Mitsubishi FX2N

• Voltage Output Range: 0 to 10V

• Current Output Range: 4 to 20 mA

• Power Supply: 24V DC from PLC base unit

• Isolation: Non-isolated

• Ambient Temperature: 0°C to 55°C

• Weight: Approx. 0.2 kg (0.44 lbs)

• Certifications: CE, UL

Applications

• Analog control for variable speed drives

• Proportional valve control

• Temperature regulation systems

• Signal transmission to analog devices

• Industrial machinery requiring analog outputs

Why Choose the FX2N-2DA?

• Versatile Outputs: Supports both voltage and current signal types

• Compact Expansion: Ideal for adding analog capability to FX2N PLCs

• Reliable Mitsubishi Engineering: Proven industrial performance

• Quick Installation: Direct plug-in design saves time and space

Order Now

The Mitsubishi FX2N-2DA is available and ready to ship.
