Omron CJ1W-OD232 | Digital Output Module

Omron CJ1W-OD232 | High-Density NPN Output Module for CJ-Series PLCs

Overview

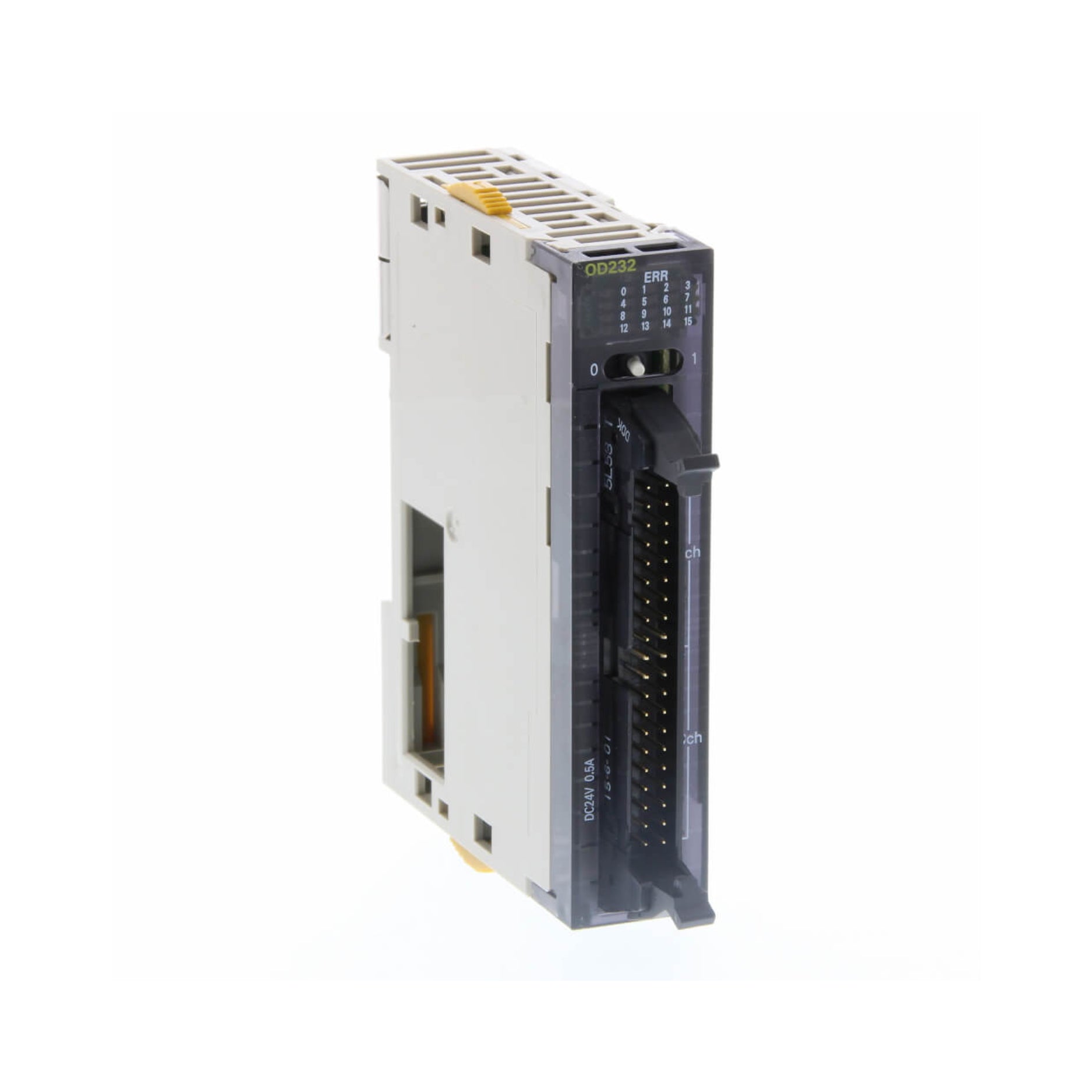

The Omron CJ1W-OD232 is a digital output module with 32 NPN transistor (sinking) outputs, designed for the CJ-series PLC platform. It supports high-speed switching for controlling external devices such as relays, lamps, solenoids, and more. Its compact design helps reduce panel space, and it's ideal for applications requiring many output points.

Key Features

• Output Type: NPN transistor (sinking)

• Number of Outputs: 32 points

• Voltage Range: 12–24 VDC

• Max Output Current: 0.3 A per point, 4 A per common

• High-Speed Switching: Suitable for rapid control signals

• Built-in Indicators: LED for each output channel

• Terminal Block: Detachable for easy maintenance

• Compact Width: Saves space in dense control cabinets

• Compatible With: Omron CJ1, CJ2, and CPU units supporting expansion I/O

Technical Specifications

• Model: CJ1W-OD232

• Output Type: NPN (open collector)

• Output Voltage: 12–24 VDC

• Rated Current: 0.3 A/point, 4 A/common

• Response Time: ON: 0.5 ms / OFF: 0.5 ms

• Isolation: Photocoupler between output and internal circuit

• Power Consumption: 0.9 W max

• External Power Supply: 20.4–26.4 VDC

• Operating Temperature: 0°C to +55°C

• Mounting: DIN rail (CJ-series backplane)

• Dimensions: 31 × 89 × 65 mm

• Weight: Approx. 160 g

Applications

• Solenoid and Valve Actuation

• Lamp and Buzzer Control

• Conveyor Motor Start/Stop

• Digital Output Expansion

• OEM Equipment Panels

Why Choose Omron CJ1W-OD232?

• High-density output reduces module count

• Fast switching capability for real-time systems

• NPN transistor outputs compatible with standard industrial devices

• Easy integration with CJ-series PLC architecture

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
