Beckhoff KL1809

Beckhoff KL1809

Overview

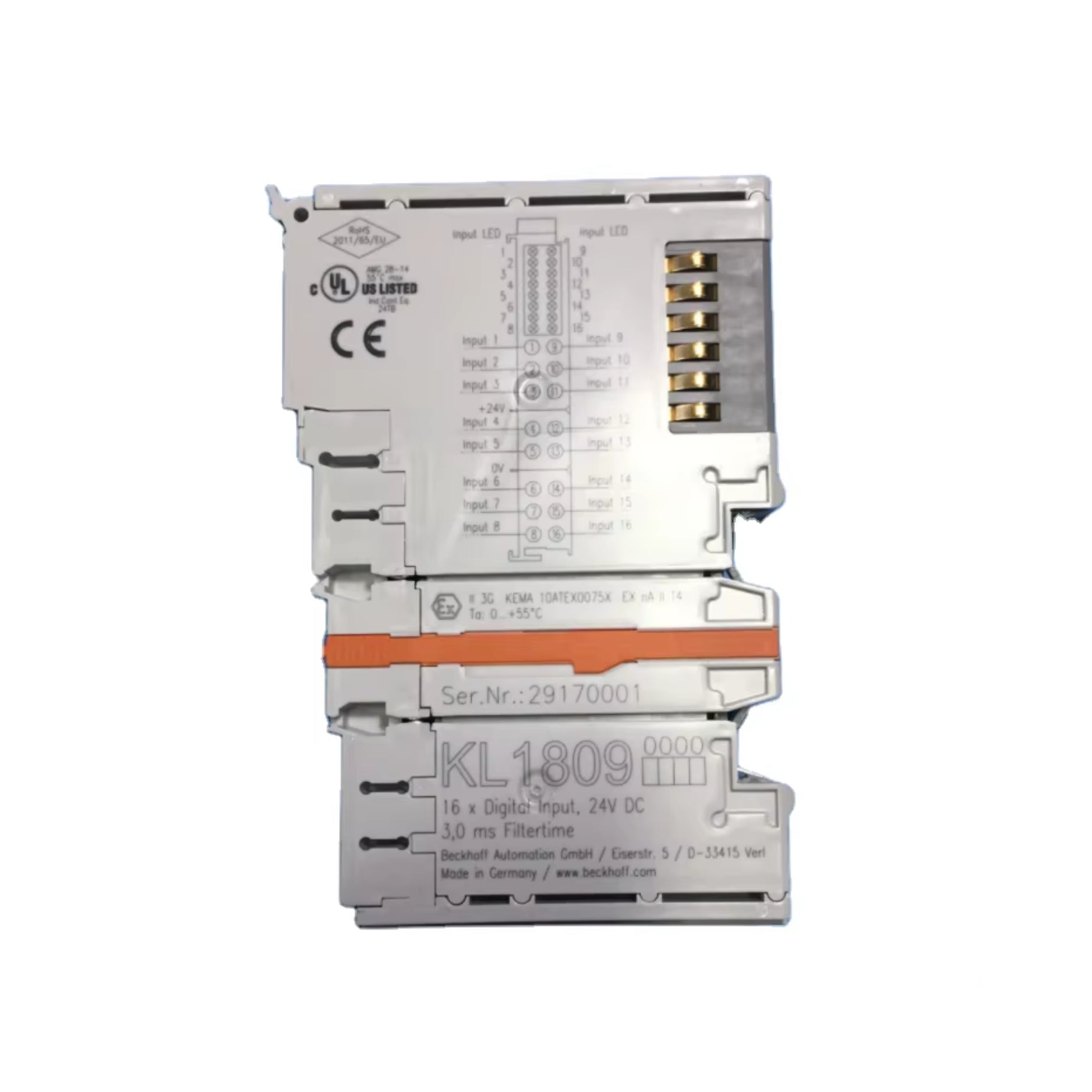

The Beckhoff KL1809 is a 16-channel digital input Bus Terminal designed for 24 V DC signal acquisition. Each input is equipped with a 3 ms filter to ensure reliable detection of binary signals even in noisy environments. Compact and efficient, the KL1809 reduces wiring and space requirements, making it ideal for industrial control systems that need high-density input handling.

Key Features

• 16 digital input channels

• 24 V DC input voltage

• 3 ms input filter for stable signal acquisition

• Compact design for space-saving installation

• LED indicators for channel status monitoring

• Bus Terminal technology for modular expansion

• Cost-effective high-density input solution

Technical Specifications

• Part Number: KL1809

• Manufacturer: Beckhoff

• Channels: 16 digital inputs

• Input Voltage: 24 V DC

• Input Filter: 3 ms

• Signal Type: 0/1 (binary)

• Interface: Bus Terminal (K-Bus)

• Housing Width: 12 mm

• Mounting: DIN rail terminal

• Operating Temperature: –25 °C to +60 °C

Applications

• High-density digital input acquisition

• Industrial automation and control systems

• Machine and plant monitoring

• Packaging and conveyor technology

• Signal collection from switches and sensors

Why Choose the KL1809

• High channel density in just 12 mm width

• Reliable input filtering for consistent performance

• Modular Bus Terminal system for flexible expansion

• Cost and space-efficient solution for large I/O requirements

Order Now

The Beckhoff KL1809 16-channel digital input terminal is available and ships worldwide.
