Beckhoff EP6224-2022

Beckhoff EP6224-2022

Overview

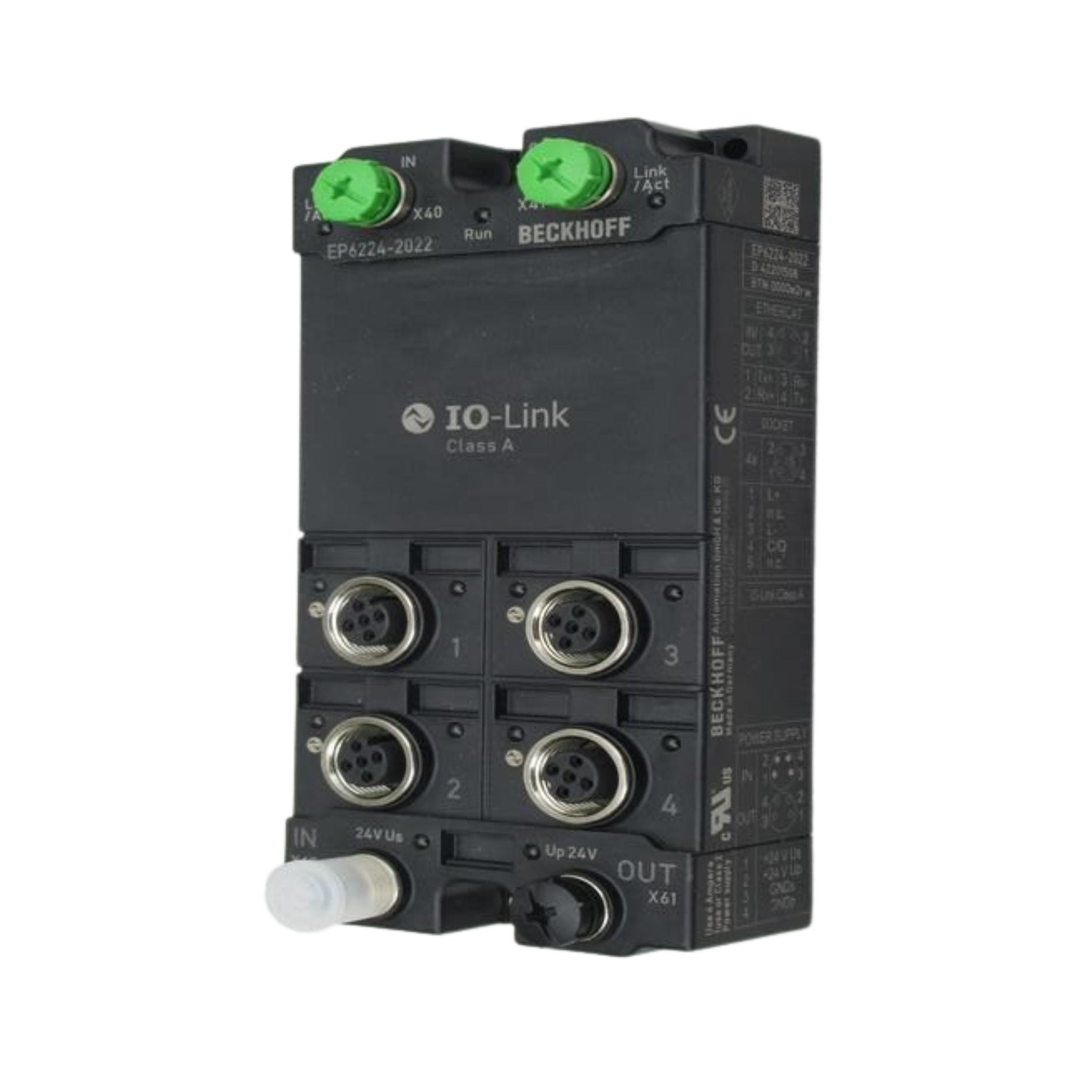

The Beckhoff EP6224-2022 is a 4-channel IO-Link master EtherCAT Box designed for direct field installation. With an IP67-rated housing and M12 connectors, it allows the connection of IO-Link sensors and actuators directly at the machine. Each channel supports full IO-Link functionality, enabling parameterization, diagnostics, and data exchange with connected devices.

Key Features

• 4 IO-Link master channels

• EtherCAT interface for real-time communication

• Rugged IP67-rated housing for harsh environments

• M12 connectors for sensors, actuators, and power

• Supports parameterization and diagnostics via IO-Link

• Plug-and-play integration with TwinCAT

• Status LEDs for each channel and bus diagnostics

Technical Specifications

• Part Number: EP6224-2022

• Manufacturer: Beckhoff

• Function: EtherCAT IO-Link master box

• Channels: 4 IO-Link master ports

• Interface: EtherCAT

• Protection Class: IP67

• Connectors: M12 (I/O, EtherCAT, power)

• Power Supply: 24 V DC

• Housing: Rugged industrial-grade design

• Operating Temperature: –25 °C to +60 °C

Applications

• Direct field connection of IO-Link sensors and actuators

• Machine and process automation with modular I/O

• Robotics and material handling with distributed intelligence

• Packaging and assembly lines with flexible device integration

• Harsh industrial environments requiring IP67 field modules

Why Choose the EP6224-2022

• Provides 4 IO-Link master ports in a compact IP67 box

• Eliminates need for control cabinet wiring

• Ensures reliable EtherCAT real-time communication

• Simplifies sensor integration with parameterization and diagnostics

• Backed by Beckhoff quality and TwinCAT support

Order Now

The Beckhoff EP6224-2022 EtherCAT Box IO-Link master is available and ships worldwide.
