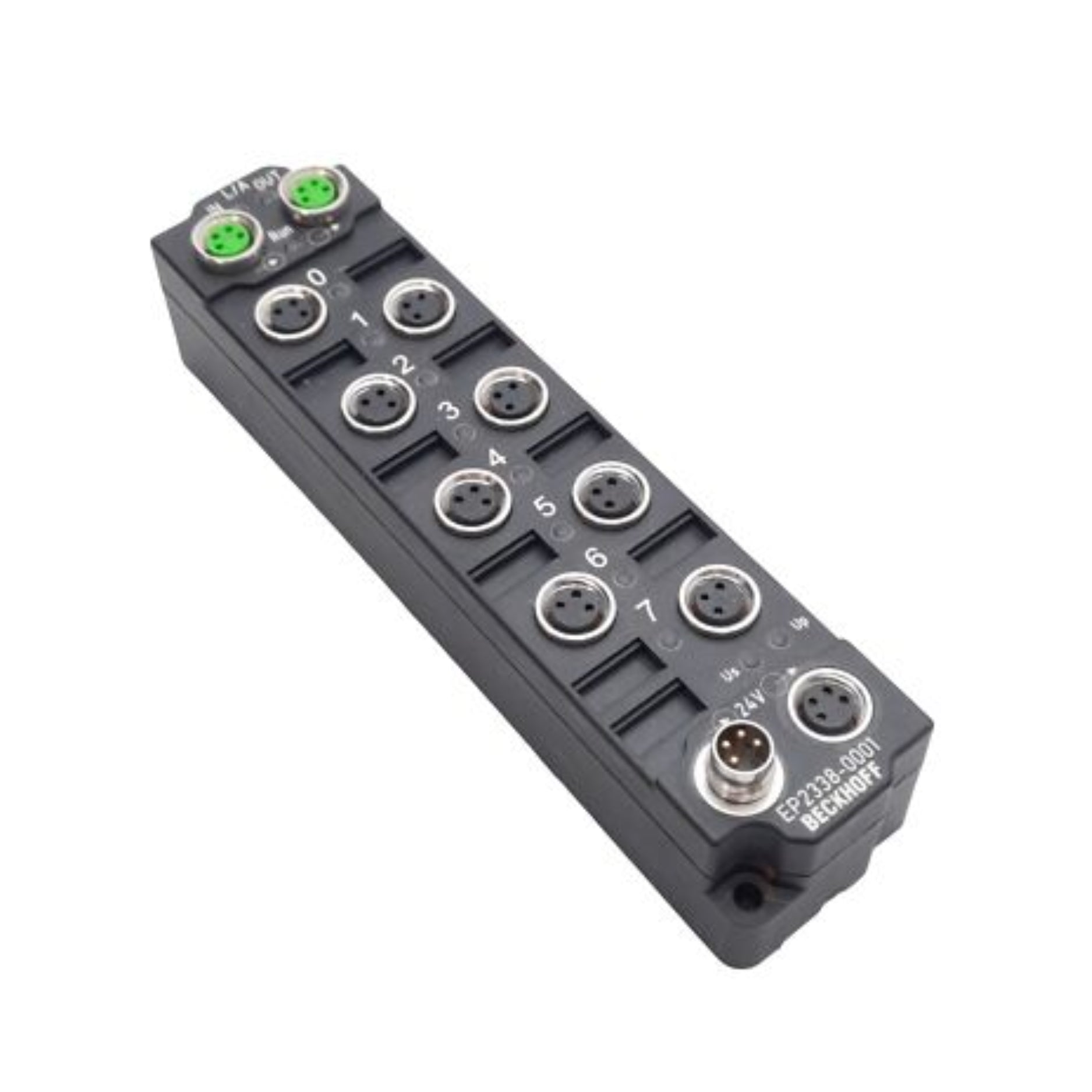

Beckhoff EP2338-0001

Beckhoff EP2338-0001

Overview

The Beckhoff EP2338-0001 is a rugged EtherCAT Box I/O module designed for direct installation in harsh industrial environments. It offers 8 digital inputs and 8 digital outputs in a compact, fully encapsulated housing with IP67 protection. This device enables decentralized machine automation without the need for control cabinets, ensuring reliable performance in dust, moisture, and vibration-prone areas.

Key Features

• 8 digital inputs, 8 digital outputs

• IP67-rated for direct field installation

• M12 connectors for secure connections

• Fast EtherCAT communication

• Fully encapsulated housing for durability

• Output current up to 0.5 A per channel

• Diagnostic LEDs for easy status monitoring

Technical Specifications

• Part Number: EP2338-0001

• Manufacturer: Beckhoff

• Inputs: 8 digital (24 V DC)

• Outputs: 8 digital (24 V DC, 0.5 A each)

• Protection Class: IP67

• Connection: M12 connectors

• Power Supply: 24 V DC (via EtherCAT P or separate supply)

• Housing: Fully encapsulated, vibration-resistant

• Operating Temperature: –25 °C to +60 °C

• Mounting: Direct machine installation

Applications

• Machine and plant automation

• Decentralized I/O in harsh environments

• Packaging and material handling systems

• Outdoor and washdown areas

• Robotics and conveyor systems

Why Choose the EP2338-0001

• Combines high I/O density with field-ready protection

• Eliminates the need for control cabinets

• Designed for reliable operation in demanding conditions

• Seamless EtherCAT integration

Order Now

The Beckhoff EP2338-0001 EtherCAT Box with 8 digital inputs and 8 digital outputs is available and ships worldwide.
