Beckhoff EL9576

Beckhoff EL9576

Overview

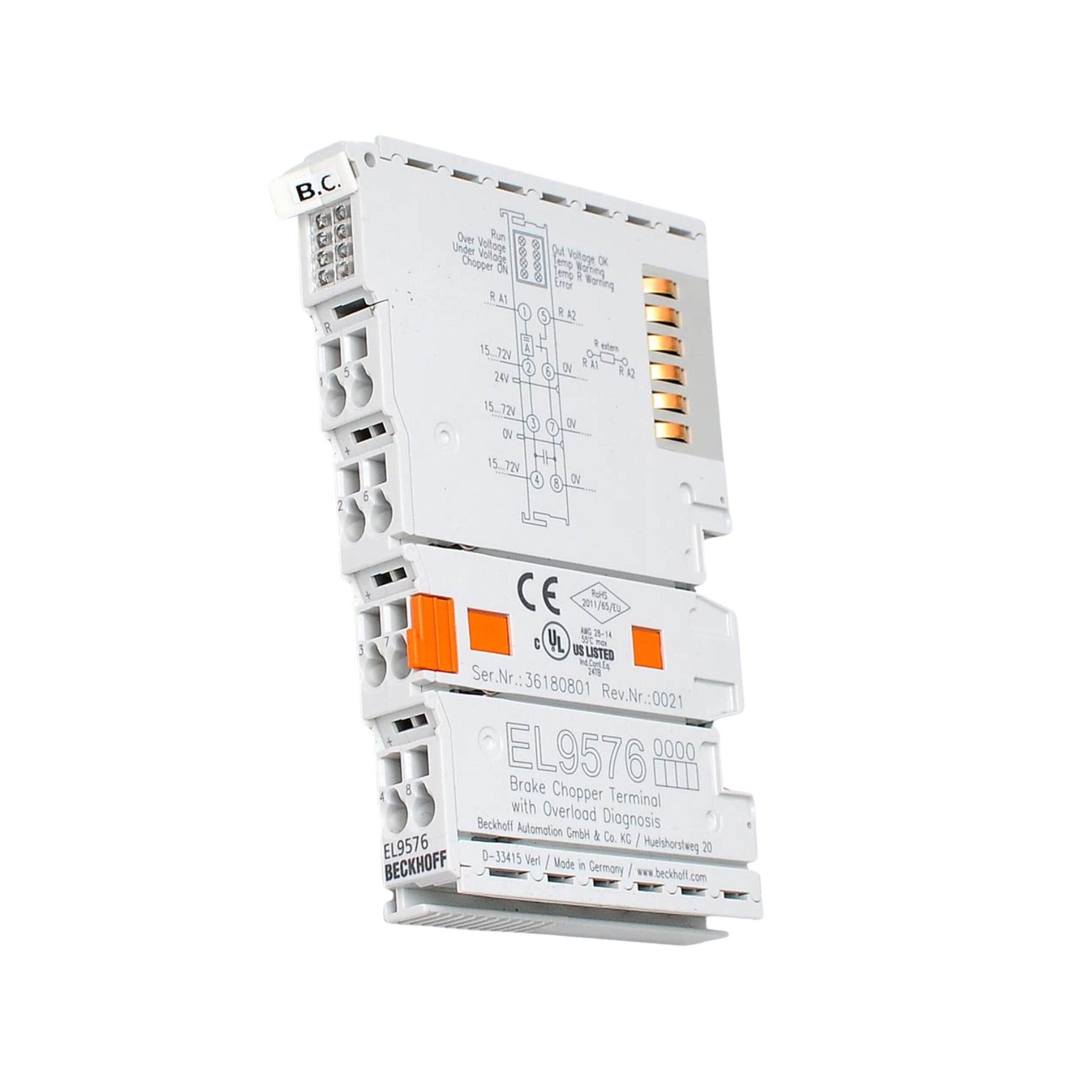

The Beckhoff EL9576 is a brake chopper terminal for the EtherCAT I/O system. It safely dissipates regenerative braking energy from drives and motors by converting excess electrical energy into heat, preventing overvoltage in the DC link. This compact DIN-rail terminal is designed for reliable use in automation systems with regenerative loads.

Key Features

• EtherCAT brake chopper terminal

• Handles regenerative energy from drives/motors

• Nominal DC link voltage: up to 150 V DC

• Integrated resistor for energy dissipation

• Protects against overvoltage conditions

• Compact 12 mm housing for DIN-rail mounting

• Fully integrated into EtherCAT systems with TwinCAT support

Technical Specifications

• Part Number: EL9576

• Manufacturer: Beckhoff

• Function: Brake chopper terminal

• Nominal DC Link Voltage: 150 V DC

• Integrated Braking Resistor: Yes

• Housing Width: 12 mm

• Mounting: DIN rail (EtherCAT Terminal system)

• Operating Temperature: –25 °C to +60 °C

Applications

• Dissipation of regenerative energy in servo systems

• Machine automation with frequent braking cycles

• Packaging and material handling equipment

• Robotics and motion systems

• Distributed EtherCAT automation requiring energy management

Why Choose the EL9576

• Ensures safe dissipation of excess braking energy

• Prevents DC link overvoltage and system shutdown

• Compact and EtherCAT-integrated for easy use

• Designed for regenerative load applications

• Backed by Beckhoff’s industrial reliability

Order Now

The Beckhoff EL9576 brake chopper terminal is available and ships worldwide.

Return to Beckhoff EL/ELM7xxx Compact Drive Technology

Return to Beckhoff Category
