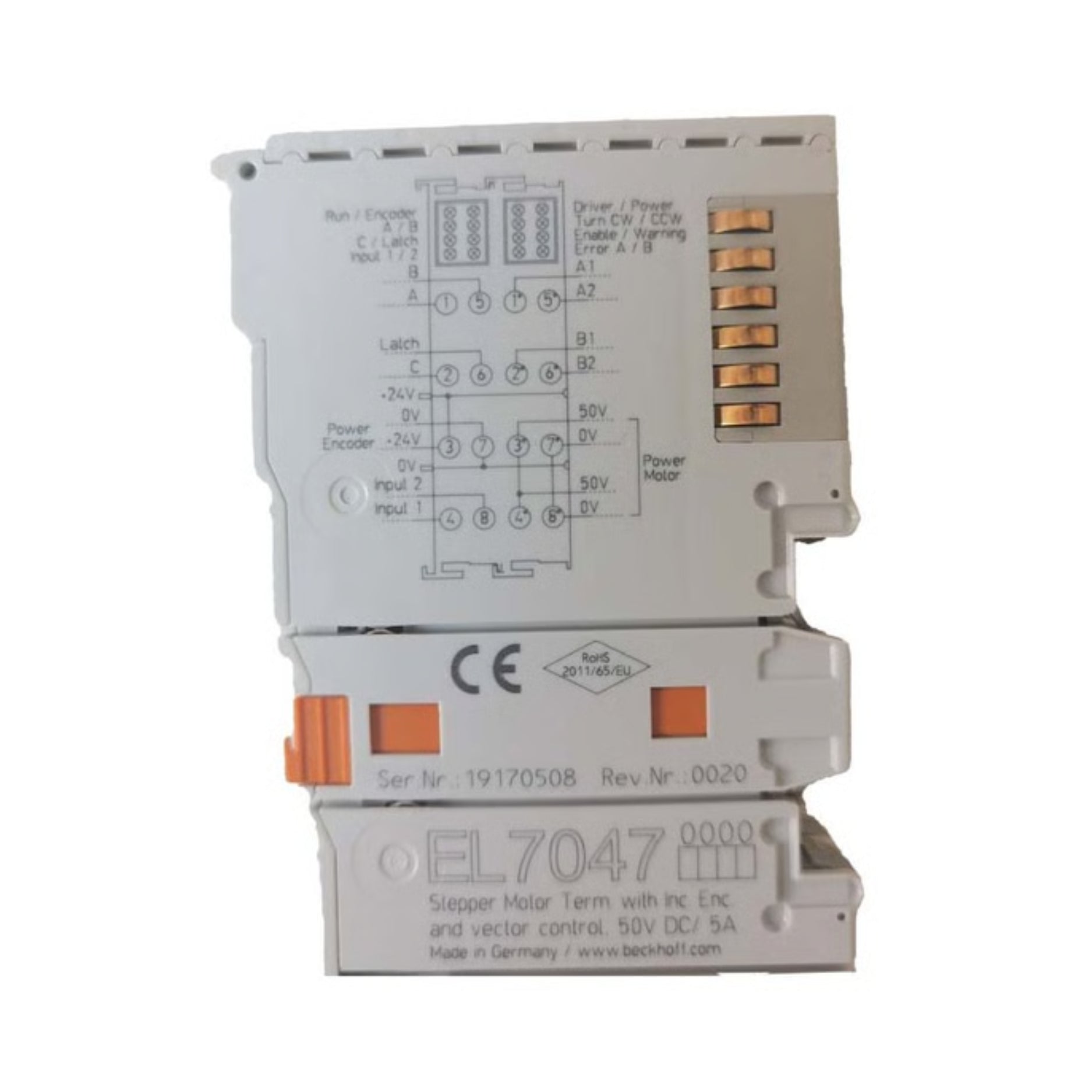

Beckhoff EL7047

Beckhoff EL7047

Overview

The Beckhoff EL7047 is a 1-channel stepper motor output terminal designed for precise motion control in automation systems. Supporting motor voltages up to 50 V DC and output currents up to 5 A, it provides smooth motor operation with encoder feedback for enhanced accuracy. Its EtherCAT interface ensures fast communication and seamless integration into Beckhoff I/O environments.

Key Features

• 1 stepper motor output channel

• Supports motor voltages up to 50 V DC

• Output current up to 5 A

• Integrated encoder feedback for closed-loop operation

• Configurable step and direction control

• Diagnostic LEDs for status monitoring

• EtherCAT-compatible for high-speed data transfer

Technical Specifications

• Part Number: EL7047

• Manufacturer: Beckhoff

• Channels: 1

• Motor Voltage: Up to 50 V DC

• Continuous Output Current: Up to 5 A

• Encoder Support: Yes, incremental encoder feedback

• Control Method: Step and direction, closed-loop with encoder

• Mounting: DIN-rail terminal

• Housing Width: 12 mm

• Operating Temperature: –25 °C to +60 °C

Applications

• Stepper motor-driven machinery

• Positioning and handling systems

• Automated test setups

• Conveyor and packaging equipment

• Robotics and laboratory automation

Why Choose the EL7047

• Integrated closed-loop control with encoder feedback

• High precision and reliability for motion control

• Compact form factor with EtherCAT communication

• Ideal for industrial stepper motor applications

Order Now

The Beckhoff EL7047 1-channel stepper motor output terminal is available and ships worldwide.
