Beckhoff EL7041

Beckhoff EL7041

Overview

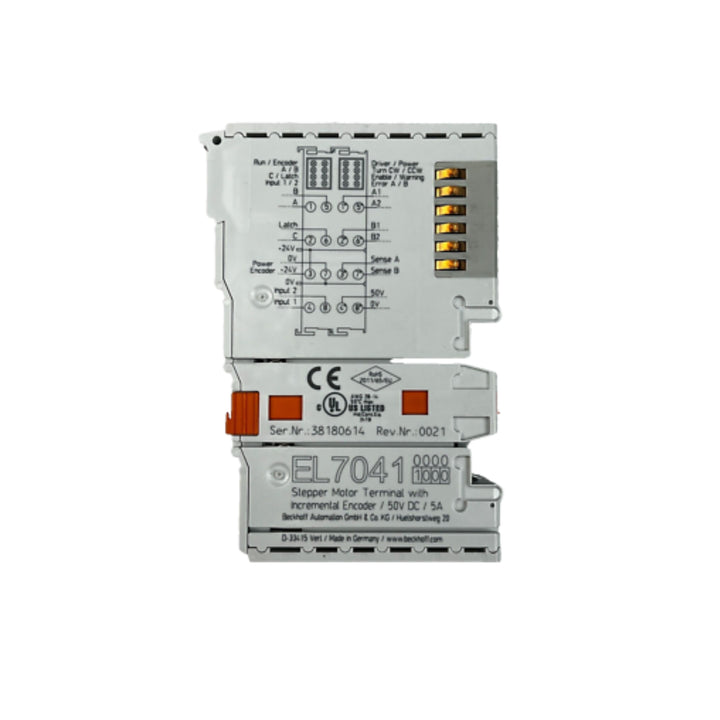

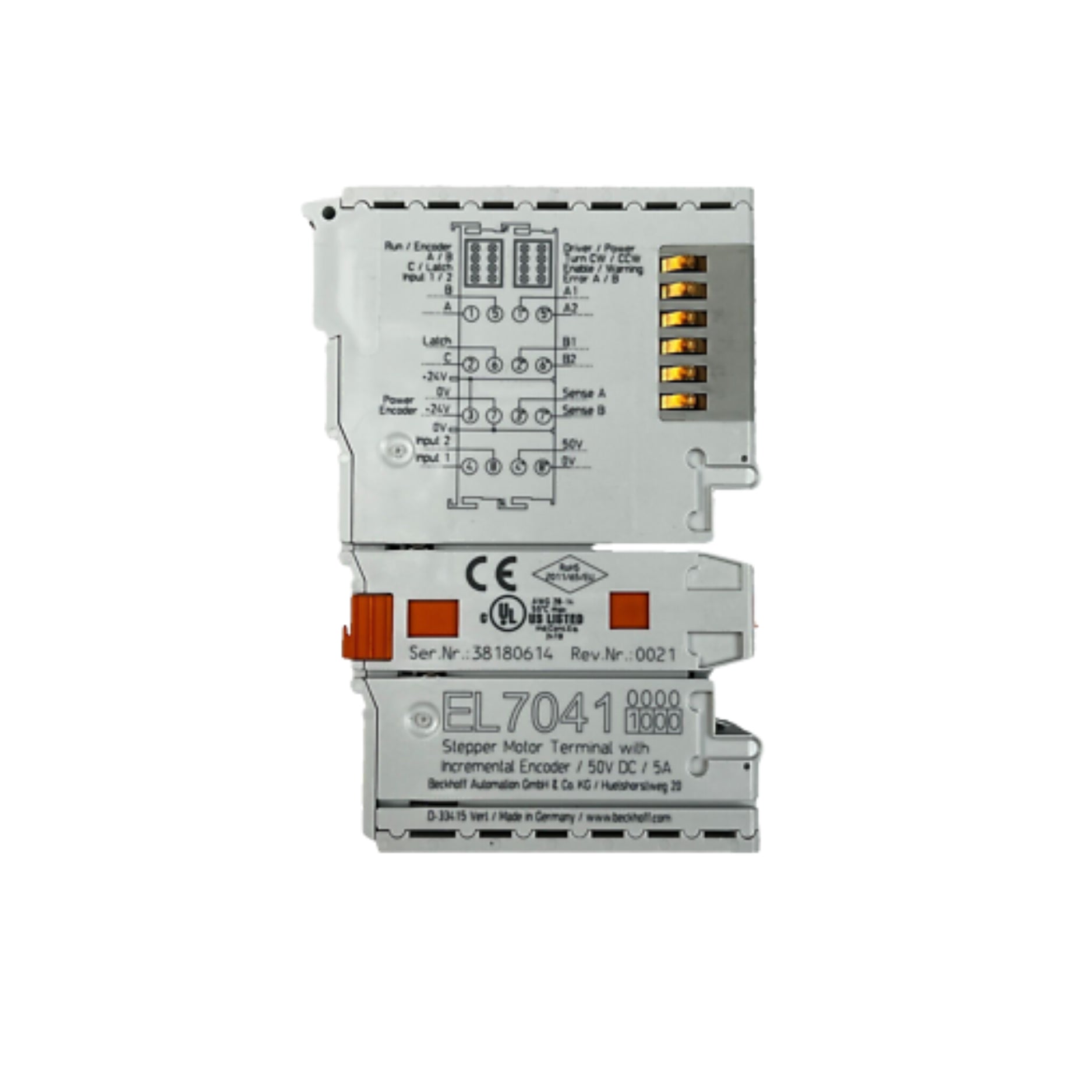

The Beckhoff EL7041 is a 1-channel stepper motor terminal that provides direct control of a stepper motor via EtherCAT. With up to 5 A output current and 50 V DC supply, it offers microstepping, diagnostics, and high-resolution positioning. Designed for compact, DIN-rail-mounted I/O systems, it integrates motion control and EtherCAT communication in one unit.

Key Features

• 1-channel EtherCAT stepper motor terminal

• Output current up to 5 A

• Supply voltage up to 50 V DC

• Microstepping capability up to 1/256

• Integrated diagnostics and LED status indicators

• Supports step/direction interface

• Ideal for space-saving motion control

• DIN-rail mount, compact 12 mm housing

Technical Specifications

• Part Number: EL7041

• Manufacturer: Beckhoff

• Function: Stepper motor control

• Channels: 1

• Output Current: Up to 5 A

• Supply Voltage: Up to 50 V DC

• Microstepping: Up to 1/256

• Communication: EtherCAT

• Mounting Type: DIN-rail

• Protection Class: IP20

• Operating Temperature: –25 °C to +60 °C

• Dimensions: 12 mm width

Applications

• Precision motion control systems

• Compact pick-and-place units

• Laboratory automation

• Small-scale CNC machinery

• OEM equipment with EtherCAT-based I/O

Why Choose the EL7041

• Compact, integrated stepper motor control

• High-performance motion in small form factor

• Seamless integration with EtherCAT networks

• Built-in diagnostics and monitoring

• Reliable for industrial and OEM environments

Order Now

The Beckhoff EL7041 EtherCAT stepper motor terminal is available and ships worldwide.
