Beckhoff EL3204

Beckhoff EL3204

Overview

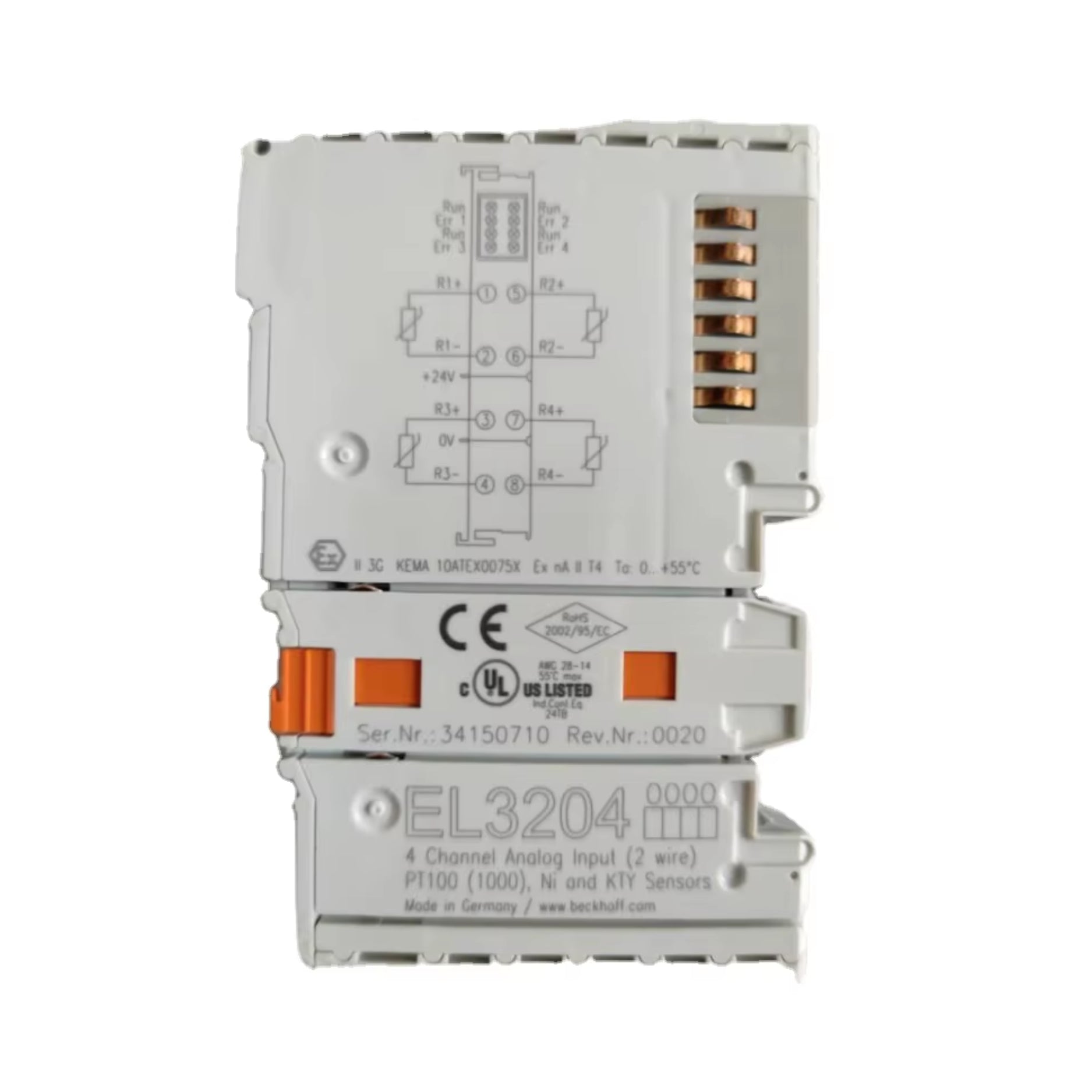

The Beckhoff EL3204 is a high-precision 4-channel RTD input terminal designed for temperature measurement with PT100 and PT1000 sensors. It offers excellent accuracy and stability, making it ideal for industrial process monitoring, environmental control, and laboratory applications. The terminal supports 2-, 3-, and 4-wire connections, providing flexibility for different installation requirements.

Key Features

• 4 independent RTD input channels

• Supports PT100 and PT1000 sensors

• High measurement accuracy and stability

• Supports 2-, 3-, and 4-wire connections

• Compact 12 mm housing for space-saving installation

• EtherCAT-compatible for fast communication

• Integrated diagnostics for sensor and wiring errors

Technical Specifications

• Part Number: EL3204

• Manufacturer: Beckhoff

• Channels: 4 RTD inputs

• Sensor Types: PT100, PT1000

• Connection Types: 2-wire, 3-wire, 4-wire

• Measurement Range: -200 °C to +850 °C

• Resolution: 0.01 °C

• Housing Width: 12 mm

• Operating Temperature: –25 °C to +60 °C

Applications

• Industrial process monitoring

• HVAC and building automation

• Laboratory temperature control

• Food and beverage processing

• Pharmaceutical manufacturing

Why Choose the EL3204

• High accuracy for demanding temperature control tasks

• Flexible connection options for various RTD sensor types

• Compact design saves space in control cabinets

• Seamless integration into Beckhoff EtherCAT I/O systems

Order Now

The Beckhoff EL3204 4-channel RTD input terminal is available and ships worldwide.

Return to Beckhoff EL/ELM7xxx Compact Drive Technology

Return to Beckhoff Category

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
