Beckhoff EL3102

Beckhoff EL3102

Overview

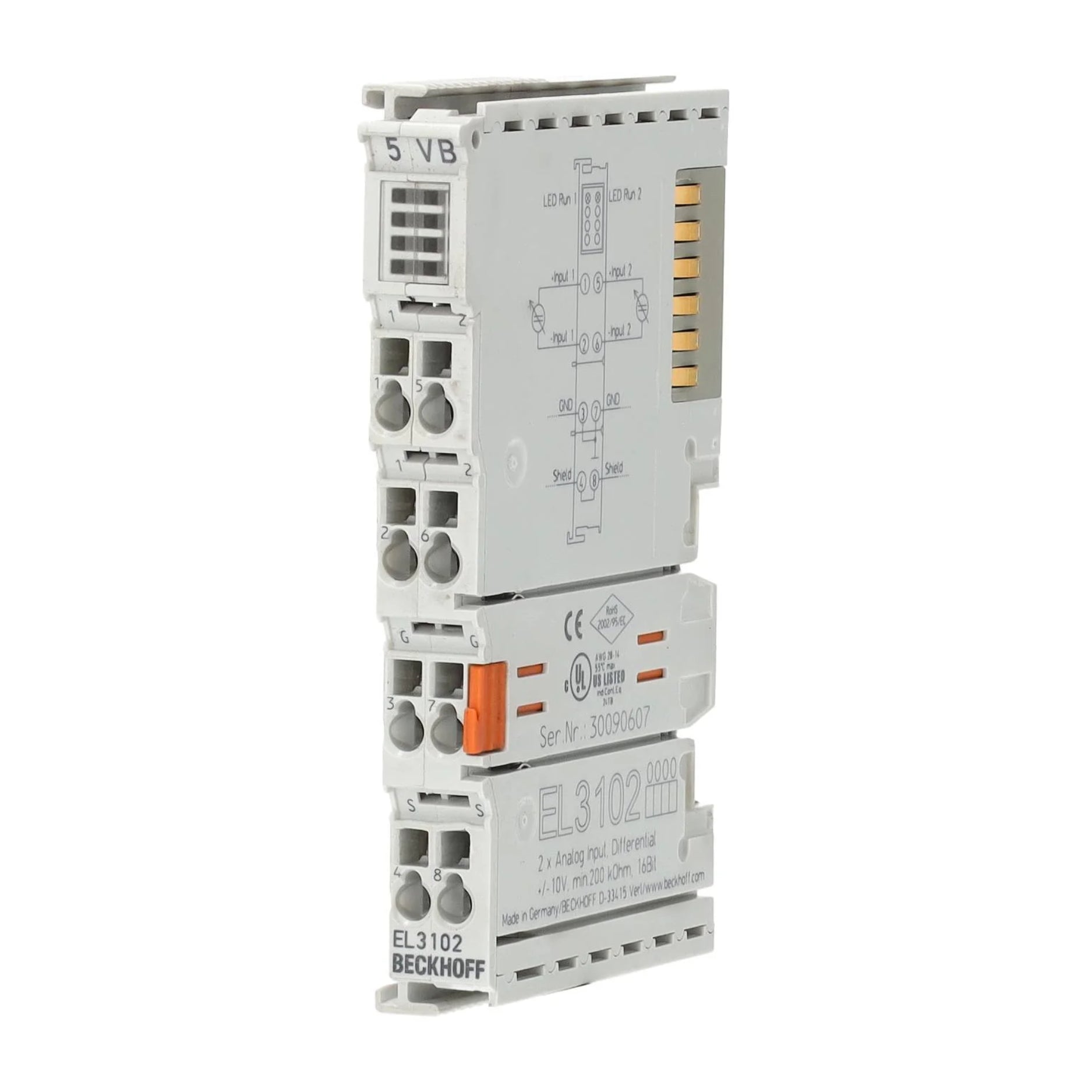

The Beckhoff EL3102 is a 2-channel analog input terminal that provides high-resolution (16-bit) measurement of differential voltage signals in the ±10 V range. Designed for use within EtherCAT I/O systems, it offers precise signal acquisition with robust noise immunity. The EL3102 is ideal for industrial applications that require reliable analog data processing on a compact DIN-rail form factor.

Key Features

• 2 analog input channels

• Differential voltage measurement: ±10 V

• High 16-bit resolution for precise readings

• EtherCAT communication for fast data transfer

• Robust against electrical noise

• Diagnostic LEDs for status indication

• Compact 12 mm DIN-rail housing

• Galvanic isolation from the EtherCAT system

Technical Specifications

• Part Number: EL3102

• Manufacturer: Beckhoff

• Input Channels: 2 (differential)

• Input Range: ±10 V

• Resolution: 16-bit

• Interface: EtherCAT

• Conversion Time: ≤1 ms per channel

• Mounting Type: DIN-rail

• Protection Class: IP20

• Operating Temperature: –25 °C to +60 °C

• Terminal Width: 12 mm

• Isolation: Channel-to-bus isolation

Applications

• Industrial signal monitoring

• Machine condition monitoring

• Process control systems

• Sensor signal acquisition

• Laboratory data collection

Why Choose the EL3102

• High-resolution analog input for precise measurements

• Differential inputs reduce noise interference

• Seamless integration into EtherCAT systems

• Space-saving design with robust performance

• Beckhoff quality for industrial automation

Order Now

The Beckhoff EL3102 2-channel analog input terminal is available and ships worldwide.
