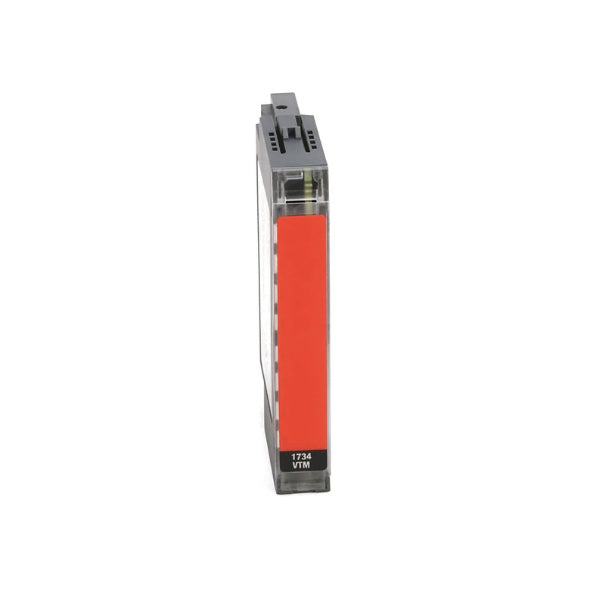

Allen-Bradley 1734-VTM

Product Description:

The Allen-Bradley 1734-VTM is a terminal module that attaches to POINT I/O terminal bases (like the 1734-TOP) to provide additional termination points for voltage signals. It's designed for applications requiring a high density of connections, allowing the connection of up to eight voltage signals in a single module.

Key Features:

• 8 Voltage Termination Channels: Offers eight connection points for voltage signals.
• High Density: Allows connection of a large number of signals in a compact space.
• DIN Rail Mounting: Facilitates installation in electrical panels.
• POINT I/O Terminal Base Compatibility: Designed for use with POINT I/O terminal bases, such as the 1734-TOP.
• Multi-Point Signal Termination: Offers multi-point signal termination in the circuit, from 0-common at 0 V output to 7-common at 7 V output.
• c-UL-us Certified: Certified for safety.
• Open-Style Enclosure: Open-style enclosure type.

Technical Specifications:

• Number of Channels: 8
• Termination Type: Voltage
• Mounting: DIN Rail
• Enclosure: Open-Style
• Certifications: c-UL-us
• Isolation Voltage Test: Tested to 1600 Vrms for 60 seconds (important for safety and isolation considerations, although the module itself does not provide galvanic isolation between channels).
• Compatibility: POINT I/O terminal bases (e.g., 1734-TOP)

Applications:

• Control Systems with High I/O Density: Ideal for applications with many sensors or actuators using voltage signals.
• Compact Control Panels: Optimizes space within the panel.
• Voltage Signal Distribution: Facilitates the distribution and organization of voltage signals within a control system.

Why Choose the Allen-Bradley 1734-VTM?

• Increased Connection Density: Allows connecting more signals in a smaller space.
• Organization and Ease of Maintenance: Helps organize wiring and facilitates identification and maintenance of connections.
• Allen-Bradley Reliability: Allen-Bradley products are known for their quality and durability in industrial environments.

Important Additional Information:

• Requires Terminal Base: The 1734-VTM does not function on its own. It requires a compatible POINT I/O terminal base, such as the 1734-TOP, to operate. The terminal base provides the connections to the POINT I/O system.
• Non-Isolated: This module does not offer galvanic isolation between channels. The need for isolation should be evaluated according to the application and safety standards.
• Datasheet: Always consult the official Rockwell Automation datasheet for detailed technical information, wiring diagrams, and other important details. Search for "1734-VTM Datasheet".
