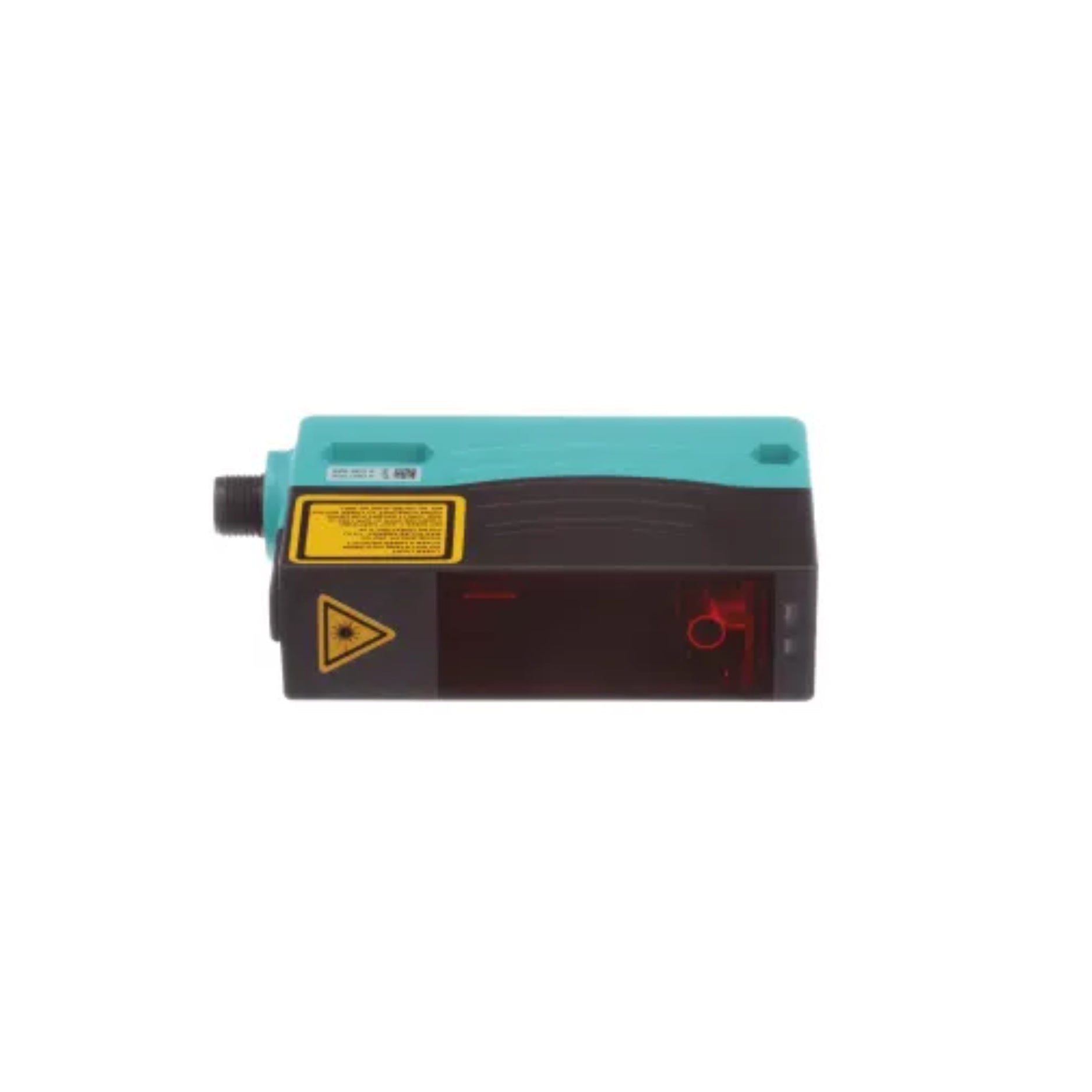

Pepperl+Fuchs VDM28-8-L1-IO/73C/110/122 – 8m Laser Distance Sensor, IO-Link

Pepperl+Fuchs VDM28-8-L1-IO/73C/110/122 – Compact Distance Sensor with PRT and IO-Link

Overview

The Pepperl+Fuchs VDM28-8-L1-IO/73C/110/122 is a laser distance sensor designed for precise, non-contact measurement using Pulse Ranging Technology (PRT). With an 8-meter measuring range, this Class 1 laser sensor delivers accurate, fast, and repeatable measurements, ideal for automation, positioning, and level detection tasks.

It features dual outputs—analog (4–20 mA) and PNP digital—as well as IO-Link communication for advanced diagnostics and integration.

Key Features

• Measuring Range: 0.2 to 8 meters

• Light Source: Red laser diode, Class 1 (660 nm)

• Output Types:

  • Analog: 4–20 mA

  • Digital: Push-pull (PNP), 100 mA max

• Communication: IO-Link V1.0

• Accuracy: ±25 mm

• Repeat Accuracy: <5 mm

• Response Time: <30 ms

• Connection: 4-pin M12 connector

• Protection Rating: IP67

• Operating Voltage: 10–30 V DC

• Operating Temperature: -30°C to +55°C

Technical Specifications

• Model: VDM28-8-L1-IO/73C/110/122

• Technology: Pulse Ranging Technology (PRT)

• Output: Analog (4–20 mA), PNP digital (push-pull)

• Interface: IO-Link V1.0

• Laser Class: 1

• Housing: Compact rectangular design

• Indicator LEDs: Status and output

Applications

• Level Measurement: Detect liquids, powders, or bulk solids

• Automated Storage Systems: Precise object positioning

• Packaging and Logistics: Box detection and sorting

• Robotics: Safe, accurate object distance control

Why Choose the VDM28-8-L1-IO/73C/110/122?

• Dual outputs (analog + digital) for flexible integration

• Compact and rugged with IP67 protection

• PRT delivers superior accuracy in varying lighting conditions

• Supports IO-Link for advanced diagnostics and ease of use

Order Now

The VDM28-8-L1-IO/73C/110/122 is available and ready to ship.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
