Pepperl+Fuchs VBA-4E4A-KE-ZEJQ/E2L | AS-Interface Module | 4 Inputs & 4 Outputs

Pepperl+Fuchs VBA-4E4A-KE-ZEJQ/E2L | Compact AS-Interface Module for Efficient Sensor and Actuator Integration

Overview

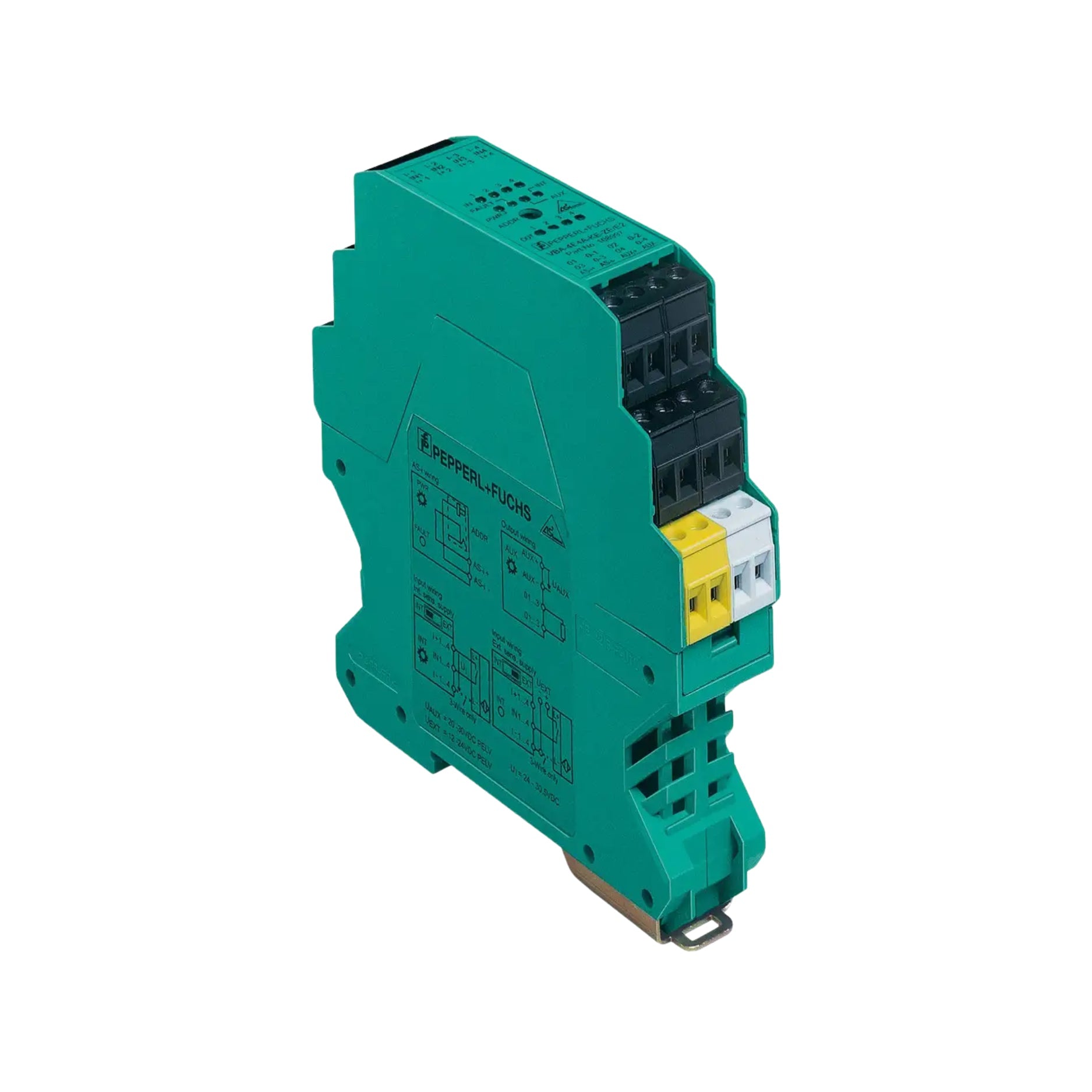

The Pepperl+Fuchs VBA-4E4A-KE-ZEJQ/E2L is a compact AS-Interface sensor/actuator module designed to facilitate seamless integration of sensors and actuators into AS-Interface networks. Featuring 4 inputs for 2- or 3-wire sensors and 4 electronic outputs, this module ensures reliable performance in industrial automation applications. Its slim 22.5 mm housing allows for space-saving DIN rail mounting in control cabinets.

Key Features

• Inputs: 4 channels compatible with 2- and 3-wire sensors (PNP), supporting both internal (from AS-Interface) and external power supply options.

• Outputs: 4 electronic PNP outputs, each capable of handling up to 2 A, with overload and short-circuit protection.

• Removable Terminals: Mechanical and color-coded terminals simplify wiring and maintenance.

• Communication Monitoring: Ensures reliable data transmission by monitoring network communication.

• Addressing Jack: Facilitates easy module addressing within the AS-Interface network.

• Sensor Power Supply Selection: Switchable between internal module supply and external auxiliary voltage.

• Diagnostic LEDs: Provide visual status indications for bus communication, auxiliary voltage, sensor supply, inputs, and outputs.

• Lead Breakage Detection: Switchable detection for output lead breakage enhances system diagnostics.

Technical Specifications

• Model Number: VBA-4E4A-KE-ZEJQ/E2L

• Node Type: A/B node

• AS-Interface Specification: V3.0

• Profile: S-7.A.7

• IO Code: 7

• ID Code: A

• ID1 Code: 7

• ID2 Code: 7

• Operating Voltage: 26.5 to 31.6 V from AS-Interface

• Operating Current: ≤ 35 mA (without sensors); max. 190 mA

• Auxiliary Voltage (Input): 12 to 30 V DC (PELV)

• Auxiliary Voltage (Output): 20 to 30 V DC (PELV)

• Input Voltage: 21 to 31 V DC (internal supply)

• Input Current: ≤ 9 mA

• Output Current: Up to 2 A per output; total up to 4 A (depending on ambient temperature and mounting)

• Protection Class: III

• Degree of Protection: IP20

• Ambient Temperature Range: -25°C to +60°C (-13°F to +140°F)

• Housing Material: PA 66-FR

• Dimensions: Height 99 mm, Width 22.5 mm, Length 102 mm

• Mounting: DIN rail

• Compliance: CE, cULus Listed

Applications

• Factory Automation: Integrates sensors and actuators into AS-Interface networks for streamlined control.

• Material Handling: Manages inputs from conveyors and outputs to sorting mechanisms.

• Packaging Machinery: Coordinates sensor inputs and actuator outputs for packaging processes.

• Process Control: Facilitates data acquisition and control in various industrial processes.

Why Choose Pepperl+Fuchs VBA-4E4A-KE-ZEJQ/E2L?

• Compact Design: Slim 22.5 mm width conserves space in control cabinets.

• Flexible Sensor Integration: Supports both 2- and 3-wire sensors with selectable power supply options.

• Robust Outputs: Electronic outputs with overload and short-circuit protection ensure reliable actuator control.

• Enhanced Diagnostics: Comprehensive LED indicators and communication monitoring improve system transparency.

• Ease of Installation: Removable, color-coded terminals and DIN rail mounting simplify setup and maintenance.
