Pepperl+Fuchs VAZ-T1-FK-G10-2M-PUR-V1-G

Pepperl+Fuchs VAZ-T1-FK-G10-2M-PUR-V1-G | Durable AS-Interface Splitter Box for Industrial Applications

Overview

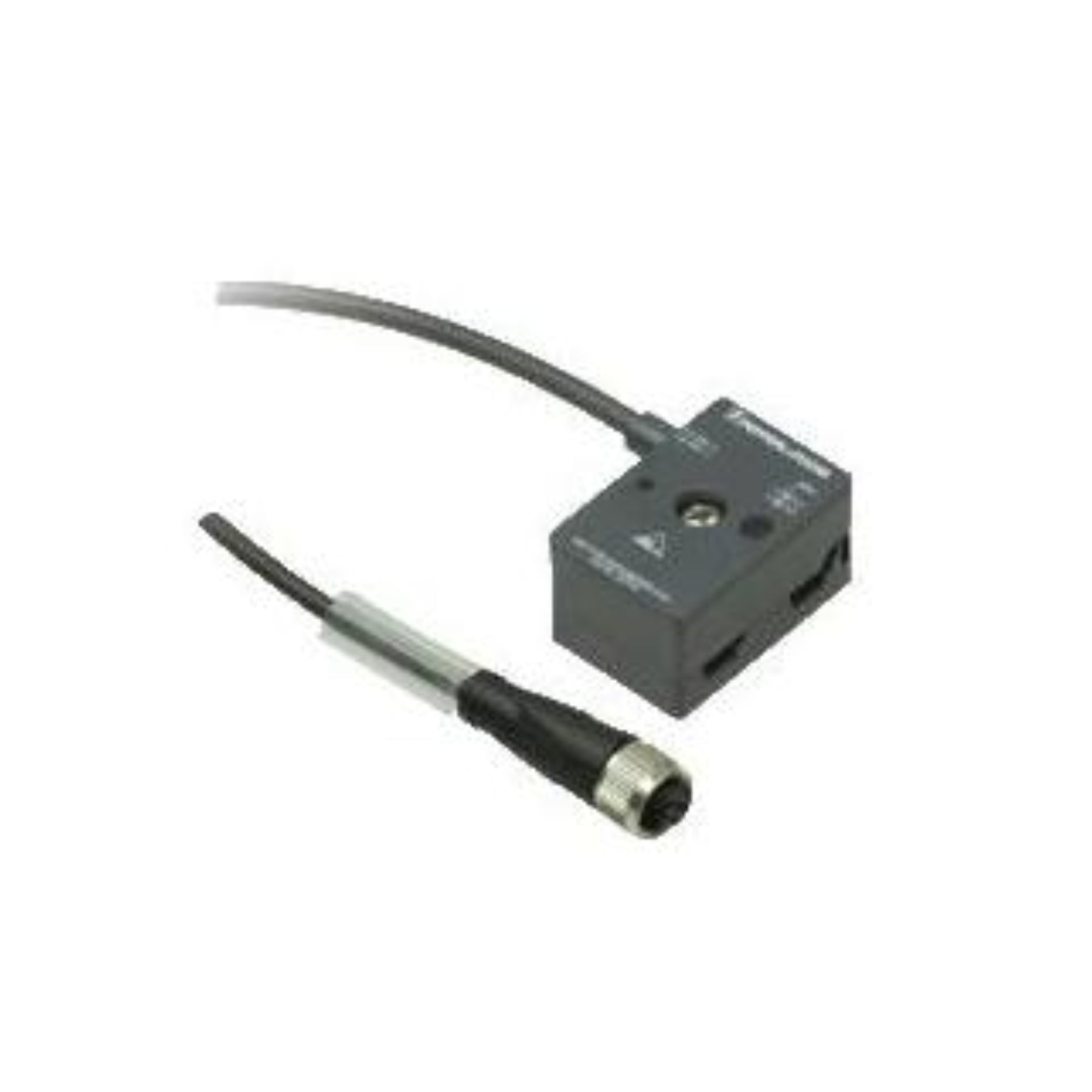

The VAZ-T1-FK-G10-2M-PUR-V1-G is a robust AS-Interface splitter box from Pepperl+Fuchs, designed to facilitate reliable connections in industrial automation systems. Featuring a G10 housing, M12 connector, and a 2-meter PUR cable, this splitter box ensures secure and efficient signal transmission even in harsh environments.

Key Features

• Housing Type: G10, one-piece design for durability

• Connector: M12 (V1) round connector for standard interfacing

• Cable: 2 m PUR cable, oil and abrasion-resistant, suitable for drag chains

• Contacts: Gold-plated and machined for optimal conductivity

• Mounting: Simple and fast installation with stainless steel screws

• Protection Class: IP68/IP69K, ensuring resistance to dust and high-pressure water jets

• Halogen-Free: Suitable for environments requiring low toxicity in case of fire

• Immunity to Vibration: Reliable performance in high-vibration settings

Technical Specifications

• Rated Operating Voltage: ≤ 60 V PELV

• Rated Operating Current: ≤ 3 A

• Maximum Permissible Operating Voltage: 32 V

• Ambient Temperature Range: -25 °C to +75 °C (-13 °F to +167 °F)

• Storage Temperature Range: -25 °C to +85 °C (-13 °F to +185 °F)

• Cable Sheath Diameter: ∅4.3 mm

• Cable Cores: 2 × 0.34 mm²

• Dimensions (H×W×L): 22 × 27.7 × 40.5 mm

• Weight: Approximately 100 g

• Compliance: UL cULus Listed, Type 1 enclosure; suitable for NFPA 79 applications

• Mounting Torque: 1.65 Nm for fastening screws

Applications

• Material Handling Systems

• Packaging Machinery

• Conveyor Systems

• Automated Assembly Lines

• Industrial Robotics

• Process Automation

Why Choose Pepperl+Fuchs VAZ-T1-FK-G10-2M-PUR-V1-G?

• Reliable Connectivity: Ensures stable AS-Interface connections in demanding environments

• Robust Construction: Withstands mechanical stress, vibration, and exposure to oils and chemicals

• Easy Installation: Streamlined mounting process reduces setup time

• Versatile Use: Compatible with various industrial automation applications

• Trusted Brand: Manufactured by Pepperl+Fuchs, a leader in industrial sensor technology

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
