Pepperl+Fuchs VAZ-2T1-FK-G10-1M-PUR-V1-G

Pepperl+Fuchs VAZ-2T1-FK-G10-1M-PUR-V1-G | Robust AS-Interface Splitter Box for Industrial Applications

Overview

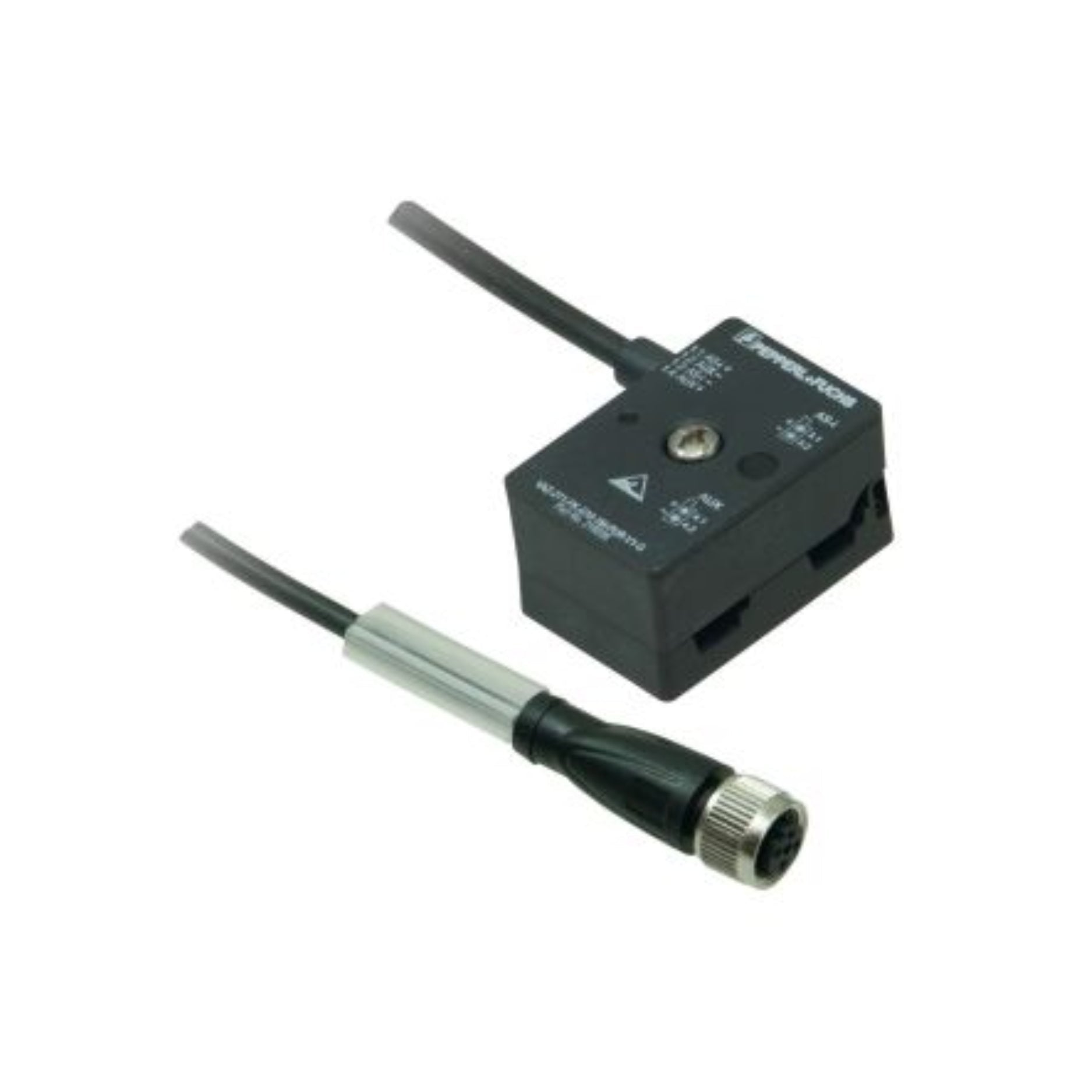

The Pepperl+Fuchs VAZ-2T1-FK-G10-1M-PUR-V1-G is a durable AS-Interface splitter box designed for seamless integration into industrial automation systems. Featuring a 1-meter PUR cable and an M12 connector, this splitter box ensures reliable performance in harsh environments, offering protection ratings up to IP69K.

Key Features

• Connector Type: M12 socket (V1), straight

• Cable Length: 1 m

• Cable Material: Polyurethane (PUR), halogen-free

• Operating Voltage: ≤ 60 V PELV

• Operating Current: ≤ 3 A

• Protection Class: IP67/IP68/IP69K

• Surge Protection: Overvoltage category III

• Mounting: Screw-on with stainless steel screws (not included)

• Housing Material: PBT PC

• Contact Material: Gold-plated CuSn

• Part Number: 216036

Technical Specifications

• Ambient Temperature: –25 °C to +75 °C (–13 °F to +167 °F)

• Storage Temperature: –25 °C to +85 °C (–13 °F to +185 °F)

• Pollution Degree: 3

• Cable Sheath Diameter: 4.3 mm

• Cable Cores: 4 × 0.34 mm²

• Mass: Approximately 75 g

• Dimensions (H × W × L): 22 mm × 27.7 mm × 40.5 mm

• Tightening Torque (Fastening Screws): 1.65 Nm

• Compliance: UL Listed, Type 1 enclosure; suitable for NFPA 79 applications

• UL File Number: E223772

Applications

• Industrial Automation Systems

• Sensor and Actuator Integration

• Packaging Machinery

• Conveyor Systems

• Material Handling Equipment

Why Choose Pepperl+Fuchs VAZ-2T1-FK-G10-1M-PUR-V1-G?

• Robust Design: Ensures reliable connections in harsh industrial environments.

• High Protection: IP67/IP68/IP69K ratings provide excellent resistance to dust and water ingress.

• Chemical Resistance: Withstands exposure to oils, coolants, and other industrial chemicals.

• Flexible Installation: Suitable for both fixed and flexing applications.

• Trusted Brand: Backed by Pepperl+Fuchs' reputation for quality and innovation in industrial automation.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
