Overview

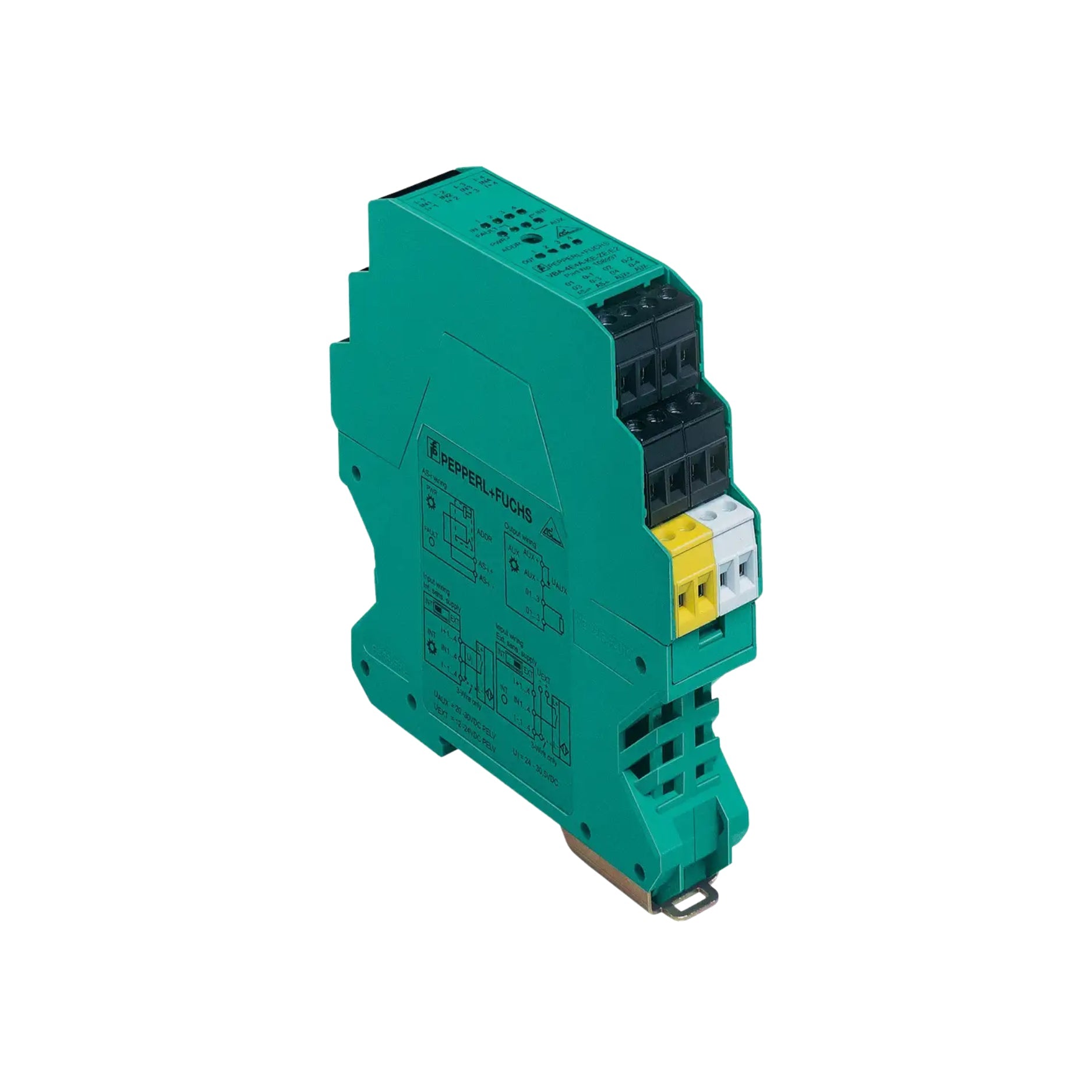

The Pepperl+Fuchs VAA-4E4A-KE-ZEJQ/E2L is a compact AS-Interface sensor/actuator module designed to facilitate seamless integration of sensors and actuators into AS-Interface networks. Featuring 4 inputs for 2- or 3-wire sensors and 4 electronic outputs, this module ensures reliable performance in industrial automation applications. Its slim 22.5 mm housing allows for space-saving DIN rail mounting in control cabinets.

Key Features

• Inputs: 4 channels compatible with 2- and 3-wire sensors (PNP), supporting both internal (from AS-Interface) and external power supply options.

• Outputs: 4 electronic PNP outputs, each capable of handling up to 2 A, with overload and short-circuit protection.

• Removable Terminals: Mechanically and color-coded terminals for straightforward and error-free wiring.

• Communication Monitoring: Integrated watchdog function deactivates outputs if communication is lost for more than 40 ms.

• LED Indicators:

  • FAULT LED (Red): Signals communication errors or output issues.

  • INT LED (Green): Indicates active internal sensor supply.

  • PWR LED (Green): Displays AS-Interface voltage status.

  • AUX LED (Green/Red): Shows external auxiliary voltage status.

  • IN LEDs (Yellow): Reflect input switching states.

  • OUT LEDs (Yellow/Red): Display output states and signal overload or lead breakage.

• Lead Breakage Detection: Switchable feature for detecting and reporting missing loads on outputs.

• DIN Rail Mounting: Easy installation on standard 35 mm DIN rails, optimizing control cabinet space.

Technical Specifications

• Model Number: VAA-4E4A-KE-ZEJQ/E2L

• AS-Interface Specification: V3.0

• Profile: S-7.0

• IO Code: 7

• ID Code: 0

• ID1 Code: F

• ID2 Code: E

• Auxiliary Voltage (Input): 12 to 30 V DC (PELV)

• Auxiliary Voltage (Output): 20 to 30 V DC (PELV)

• Rated Operating Voltage: 26.5 to 31.6 V from AS-Interface

• Rated Operating Current: ≤ 35 mA (without sensors); max. 190 mA

• Protection Class: III

• Surge Protection: Overvoltage category III, safe isolated power supplies (PELV)

• Input Voltage: 21 to 31 V DC (internal supply)

• Input Current Loading Capacity: ≤ 150 mA, overload and short-circuit protected (internal supply)

• Output Current: Up to 2 A per output, total up to 4 A (depending on ambient temperature and installation)

• Operating Temperature Range: -25°C to +60°C (-13°F to +140°F)

• Housing Material: PA 66-FR

• Degree of Protection: IP20

• Dimensions: Width 22.5 mm, Height 99 mm, Depth 102 mm

• Mounting: DIN rail (EN 50022)

• Certifications:

  • UL File Number: E223772

  • CE Marked: Yes

  • cULus Listed: General Purpose

Applications

• Material Handling: Integrates sensors and actuators in conveyor systems for efficient sorting and routing.

• Packaging Machinery: Controls various sensors and actuators to ensure precise packaging operations.

• Automated Assembly Lines: Facilitates communication between control systems and field devices for synchronized assembly processes.

• Process Automation: Monitors and controls field devices in industries such as chemical processing, pharmaceuticals, and food & beverage.

Why Choose Pepperl+Fuchs VAA-4E4A-KE-ZEJQ/E2L?

• Compact Design: Slim 22.5 mm width conserves valuable control cabinet space.

• Versatile Input/Output Configuration: Supports both 2- and 3-wire sensors with flexible power supply options.

• Enhanced Diagnostics: Comprehensive LED indicators provide real-time status monitoring for quick troubleshooting.

• Robust and Reliable: Built-in protections against overload, short-circuit, and communication loss ensure dependable operation.

• Easy Installation: Removable, color-coded terminals and DIN rail mounting simplify setup and maintenance.
