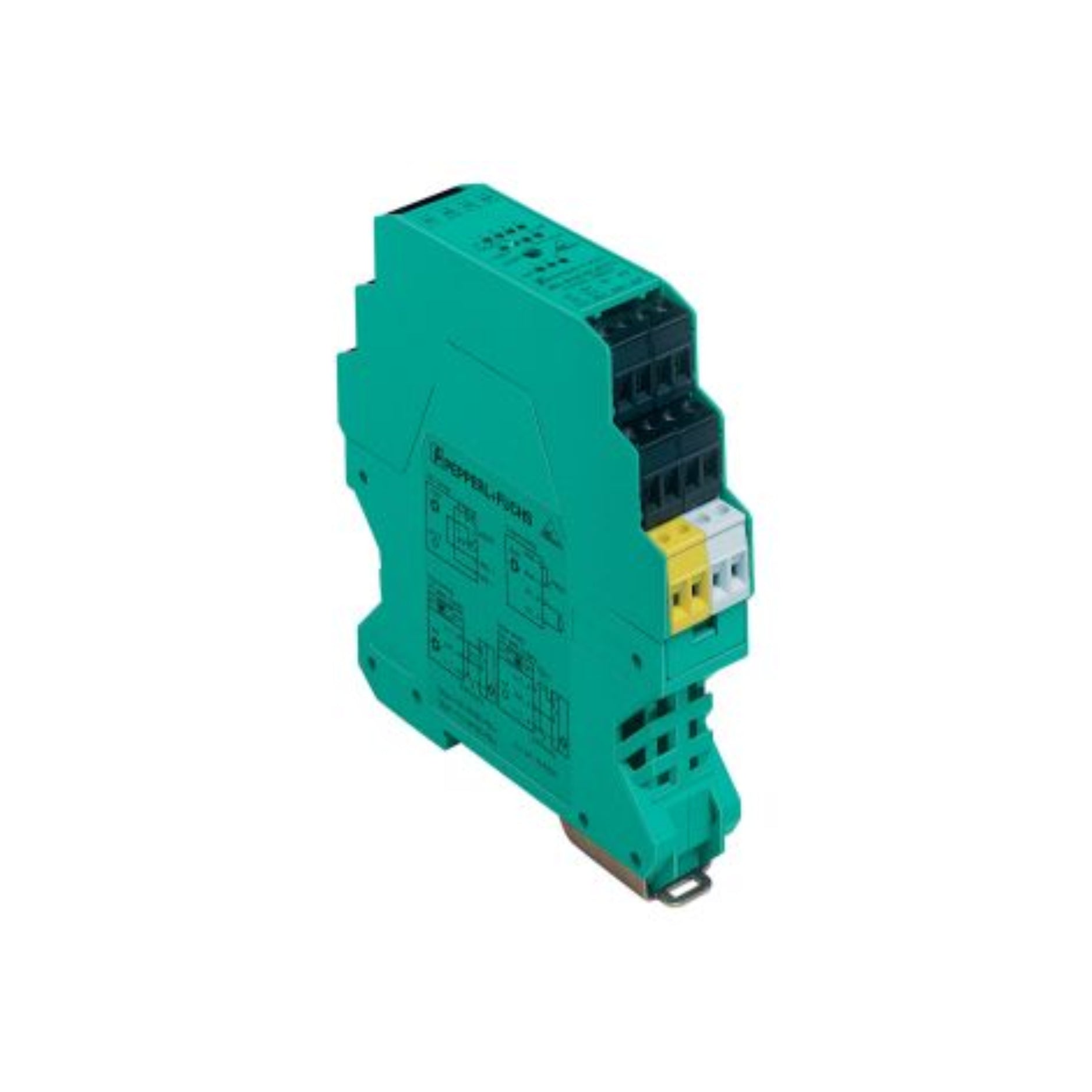

Pepperl+Fuchs VAA-4E4A-KE-ZE/R | Compact AS-Interface I/O Module for Efficient Automation

Overview

The Pepperl+Fuchs VAA-4E4A-KE-ZE/R is a compact AS-Interface I/O module designed for seamless integration into industrial automation systems. Featuring 4 PNP inputs and 4 relay outputs, this module offers reliable performance and easy installation with its DIN rail mount design. Its robust construction and versatile functionality make it ideal for various control applications.

Key Features

• Inputs: 4 PNP inputs for 2- or 3-wire sensors

• Outputs: 4 relay outputs, normally open

• Mounting: 35 mm DIN rail (EN 50022)

• Housing: 22.5 mm width, PA 66-FR material

• Connection: Removable, mechanically coded terminals

• Indicators: LEDs for power, fault, input, and output status

• Sensor Supply: Selectable internal (AS-Interface) or external (12–30 V DC)

• Protection: IP20

• Compliance: CE, UL (File No. E106378)

Technical Specifications

• AS-Interface Specification: V2.1

• Profile: S-7.0

• IO Code: 7

• ID Code: 0

• ID1 Code: F

• ID2 Code: E

• Rated Operating Voltage: 26.5–31.6 V from AS-Interface

• Auxiliary Voltage (Input): 12–30 V DC (PELV)

• Rated Operating Current: ≤ 35 mA (no sensors) / max. 210 mA

• Input Voltage (INT): 21–31 V DC

• Input Current: ≤ 8 mA

• Output Load per Contact: 2 A / 30 V DC (UL max. 24 V DC); 2 A / 253 V AC

• Output Load per Module: 8 A

• Switching Delay (Input): < 2 ms

• Switching Delay (Output): < 10 ms

• Ambient Temperature: –25 to +60 °C (–13 to +140 °F)

• Storage Temperature: –25 to +85 °C (–13 to +185 °F)

• Relative Humidity: 85%, non-condensing

• Dimensions (W × H × D): 22.5 × 99 × 102 mm

• Weight: Approximately 170 g

Applications

• Industrial Automation Systems

• Sensor and Actuator Integration

• Packaging Machinery

• Conveyor Systems

• Material Handling Equipment

Why Choose Pepperl+Fuchs VAA-4E4A-KE-ZE/R?

• Compact Design: Saves space in control cabinets

• Flexible Sensor Supply: Choose between internal and external sources

• Easy Installation: DIN rail mount with removable terminals

• Reliable Performance: Robust construction for industrial environments

• Trusted Brand: Backed by Pepperl+Fuchs' reputation for quality and innovation
