Pepperl+Fuchs V3-WM-5M-PUR

Pepperl+Fuchs V3-WM-5M-PUR | Durable M8 3-Pin Angled Female Cordset for Industrial Applications

Overview

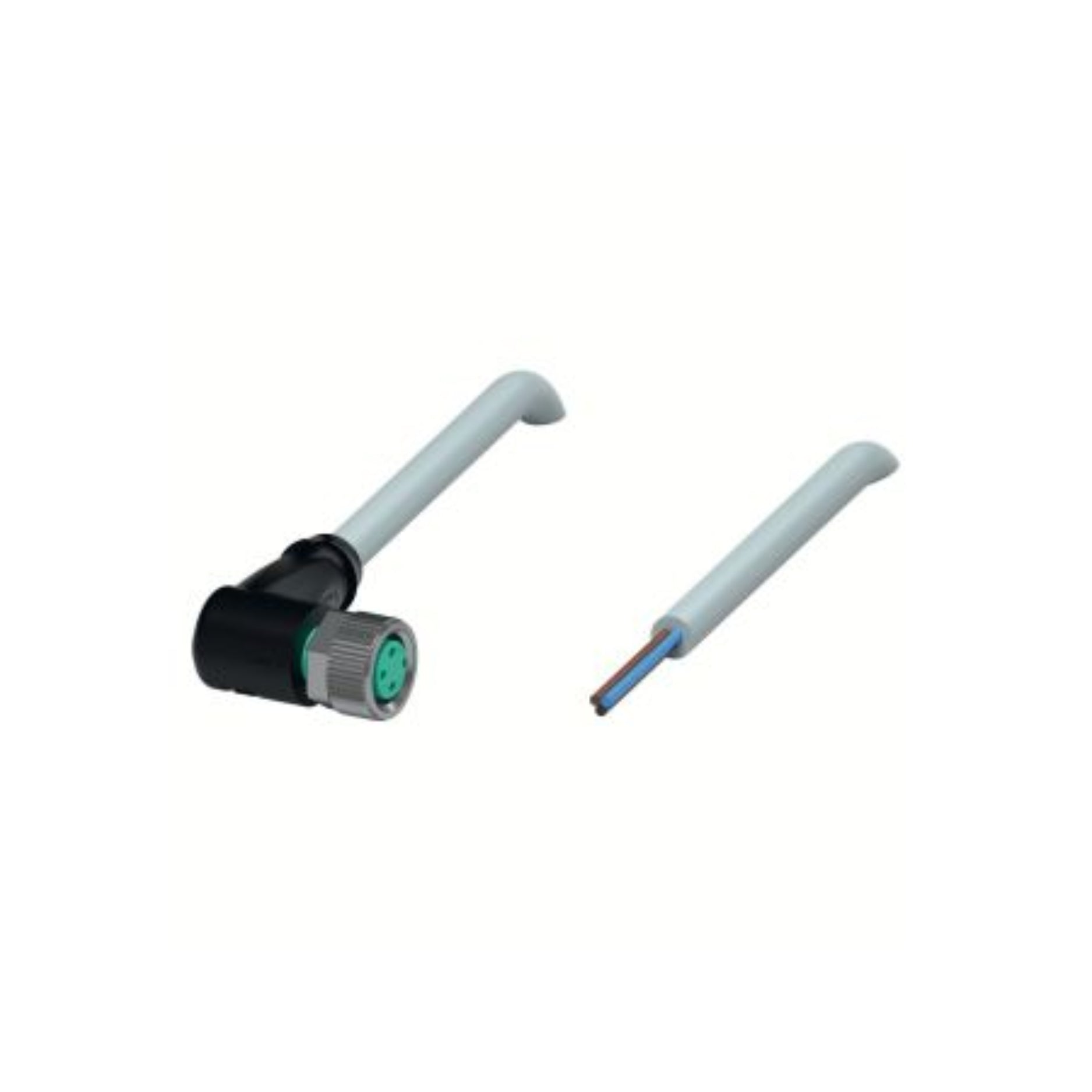

The Pepperl+Fuchs V3-WM-5M-PUR is a robust M8 3-pin angled female cordset featuring an A-coded connector and a 5-meter PUR cable. Designed for demanding industrial environments, this cordset offers excellent resistance to microbes, hydrolysis, and mechanical stress, ensuring reliable performance in various automation applications.

Key Features

• Connector Type: M8 female, angled, A-coded

• Number of Pins: 3

• Cable Length: 5 m

• Cable Material: Polyurethane (PUR), halogen-free

• Operating Voltage: Up to 48 V AC / 60 V DC

• Operating Current: Up to 3 A

• Protection Class: IP68

• Temperature Range:

  • Plug Connector: –40 °C to +90 °C

  • Cable (Fixed Installation): –40 °C to +80 °C

  • Cable (Flexing): –20 °C to +80 °C

• Mechanical Durability: Minimum 100 mating cycles

• Compliance: IEC 61076-2-104, IEC 60754-1

• Part Number: 109028

Technical Specifications

• Sheath Diameter: 4.3 mm

• Core Cross Section: 0.25 mm²

• Core Colors: Brown, Blue, Black

• Bending Radius:

  • Fixed Installation: >8× cable diameter

  • Moving Installation: >15× cable diameter

• Drag Chain Suitability:

  • Max. 50 cycles/day

  • Max. motion velocity: 0.3 m/s

• Connector Materials:

  • Screw Connection: Zinc diecast, nickel-plated

  • Body: TPU, black

  • Seal: FKM

  • Contact Surface: Gold-plated (Au)

• Flammability Rating: V-2

• Cable Code: Li 9Y 11Y 3×0.25

• Mass: Approximately 108.75 g

Applications

• Industrial Automation Systems

• Sensor and Actuator Connections

• Packaging Machinery

• Conveyor Systems

• Material Handling Equipment

Why Choose Pepperl+Fuchs V3-WM-5M-PUR?

• Robust Design: Ensures reliable connections in harsh industrial environments.

• High Protection: IP68 rating provides excellent resistance to dust and water ingress.

• Chemical Resistance: Withstands exposure to oils, coolants, and other industrial chemicals.

• Flexible Installation: Suitable for both fixed and flexing applications.

• Trusted Brand: Backed by Pepperl+Fuchs' reputation for quality and innovation in industrial automation.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
