Pepperl+Fuchs V3-GM-5M-PVC

Pepperl+Fuchs V3-GM-5M-PVC | Reliable M8 3-Pin Female Cordset for Industrial Applications

Overview

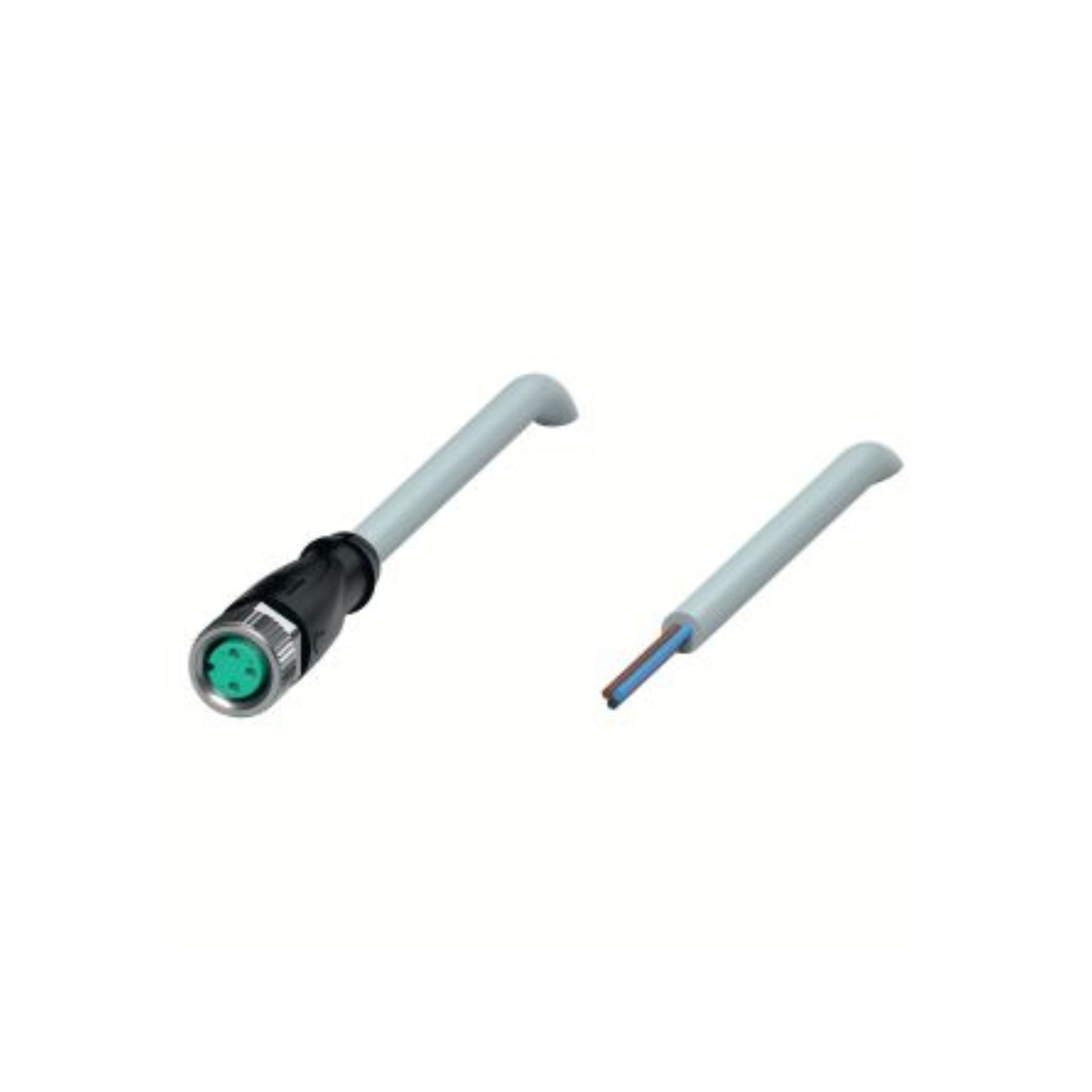

The Pepperl+Fuchs V3-GM-5M-PVC is a durable M8 3-pin female cordset featuring a straight A-coded connector and a 5-meter PVC cable. Designed for industrial environments, this cordset ensures secure and reliable connections for sensors and actuators.

Key Features

• Connector Type: M8 female, straight, A-coded

• Number of Pins: 3

• Cable Length: 5 m

• Cable Material: PVC

• Operating Voltage: Up to 48 V AC / 60 V DC

• Operating Current: Up to 3 A

• Protection Class: IP68

• Temperature Range:

  • Plug Connector: –40 °C to +90 °C

  • Cable (Fixed Installation): –40 °C to +70 °C

  • Cable (Flexing): –5 °C to +70 °C

• Mechanical Durability: Minimum 100 mating cycles

• Compliance: IEC 61076-2-104

• Part Number: 109023

Technical Specifications

• Sheath Diameter: 4.3 mm

• Core Cross Section: 0.25 mm²

• Core Colors: Brown, Blue, Black

• Bending Radius:

  • Fixed Installation: >10× cable diameter

  • Moving Installation: >15× cable diameter

• Connector Materials:

  • Screw Connection: Zinc diecast, nickel-plated

  • Body: TPU, black

  • Seal: FKM

  • Contact Surface: Gold-plated (Au)

• Flammability Rating: V-2

• Cable Code: Li YY 3×0.25

• Mass: Approximately 131.94 g

Applications

• Industrial Automation Systems

• Sensor and Actuator Connections

• Packaging Machinery

• Conveyor Systems

• Material Handling Equipment

Why Choose Pepperl+Fuchs V3-GM-5M-PVC?

• Robust Design: Ensures reliable connections in industrial environments.

• High Protection: IP68 rating provides excellent resistance to dust and water ingress.

• Flexible Installation: Suitable for both fixed and flexing applications.

• Trusted Brand: Backed by Pepperl+Fuchs' reputation for quality and innovation in industrial automation.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
