Pepperl+Fuchs V3-GM-2M-PVC

Pepperl+Fuchs V3-GM-2M-PVC | M8 Female Cordset, 3-Pin, Straight, 2 m PVC Cable, IP67

Overview:

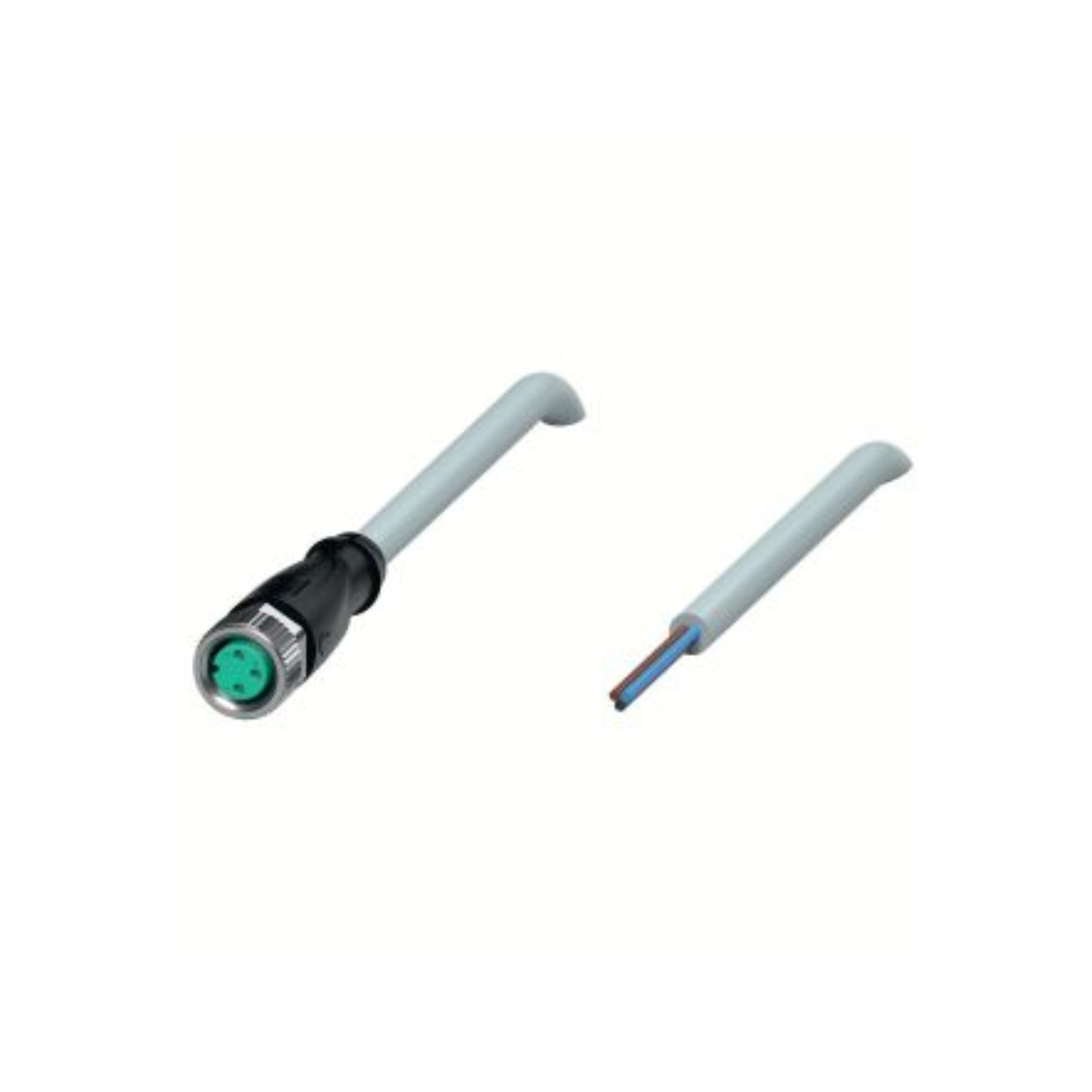

The Pepperl+Fuchs V3-GM-2M-PVC (Part No. 109021) is a 3-pin M8 female cordset with a straight connector and 2-meter PVC cable. Engineered for reliable signal transmission in industrial environments, this IP67-rated connector is ideal for sensors, actuators, and fieldbus devices.

Key Features:

• Connector Type: M8, straight female

• Pin Count: 3-pin, A-coded

• Cable Length: 2 meters

• Cable Jacket: PVC (Polyvinyl Chloride)

• Rated Voltage: 30 V

• Rated Current: 4 A per contact

• Protection Class: IP67 when properly mated

• Temperature Range: -25°C to +80°C

• Wire Gauge: 3 x 0.25 mm² (AWG 24)

• Shielding: Unshielded

Technical Specifications:

• Model Number: V3-GM-2M-PVC

• Part Number: 109021

• Contact Material: Gold-plated brass

• Contact Carrier: TPU (thermoplastic polyurethane)

• Connector Standard: IEC 61076-2-104

• Bending Radius: ≥ 5x cable diameter (fixed)

• Color: Cable typically gray or black

• Weight: Approx. 90 g

Applications:

• Sensor/Actuator Wiring: Quick connection in automation systems

• Industrial Controls: M8 interface for compact installations

• Robotics: Reliable signal transmission with minimal footprint

• Packaging Equipment: Plug-and-play setup for sensors

• Machine Tools: Rugged cable solution for harsh conditions

Why Choose the V3-GM-2M-PVC?

✅ M8 A-coded design for compact sensor/actuator connections
✅ 2 m PVC cable for flexible and durable installations
✅ Straight connector fits tight mounting zones
✅ IP67-rated sealing for dust and water resistance
✅ Reliable Pepperl+Fuchs quality

Order Now:

In stock and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
