Overview

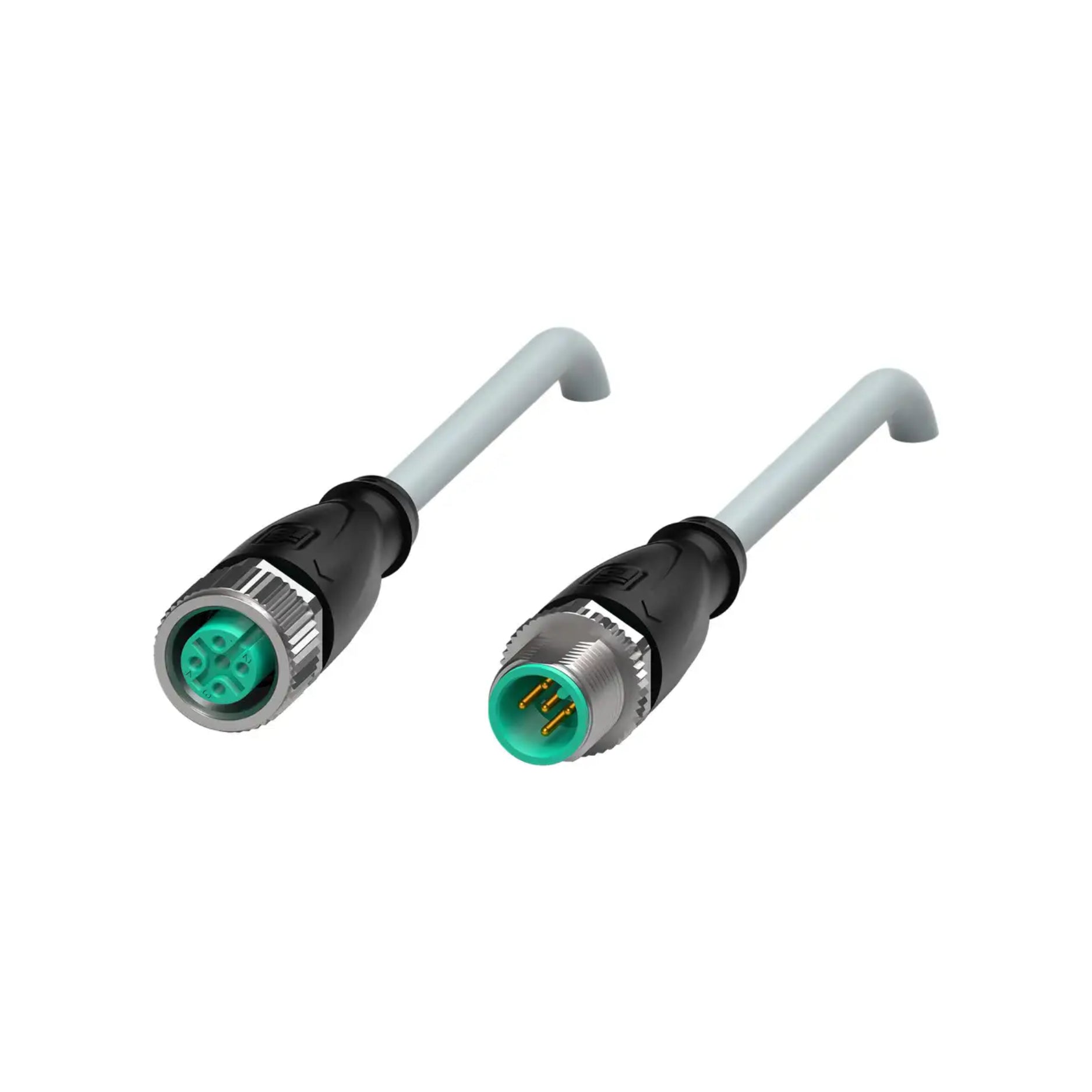

The Pepperl+Fuchs V15-G-5M-PUR-V15-G is a 5-meter long connection cable featuring M12 straight socket to M12 straight plug connectors, each with 5 pins and A-coding. Designed with a polyurethane (PUR) jacket, this cable offers excellent resistance to microbes and hydrolysis, making it suitable for demanding industrial environments. Its IP68/IP69 rating ensures robust protection against dust and water ingress, providing reliable performance in harsh conditions.

This cable is ideal for connecting sensors and actuators in automation systems, offering secure and stable signal transmission.

Key Features

• Connectors: M12 straight socket to M12 straight plug, 5-pin, A-coded

• Cable Length: 5 meters

• Jacket Material: Polyurethane (PUR), halogen-free

• Protection Rating: IP68/IP69

• Operating Voltage: Up to 48 V AC / 60 V DC

• Operating Current: Up to 4 A

• Temperature Range:

  • Plug Connector: -40°C to +90°C

  • Fixed Installation: -40°C to +80°C

  • Flexing: -25°C to +80°C

• Mechanical Durability: Minimum 100 mating cycles

• Chemical Resistance: Good resistance to chemicals; resistant to microbes and hydrolysis

• Halogen-Free: Yes

• Bending Radius:

  • Fixed Installation: >8 x cable diameter

  • Movable Installation: >10 x cable diameter

Applications

• Industrial Automation: Reliable connections for sensors and actuators

• Harsh Environments: Suitable for areas requiring high resistance to microbes and hydrolysis

• Flexible Installations: Ideal for applications involving continuous movement or flexing

• Wet and Dusty Conditions: IP68/IP69 rating ensures protection against water and dust ingress

Why Choose the V15-G-5M-PUR-V15-G?

• Durable Construction: PUR jacket provides excellent mechanical and chemical resistance

• High Protection Rating: IP68/IP69 ensures reliability in challenging environments

• Flexible Application: Suitable for both fixed and flexible installations

• Secure Connections: M12 connectors with screw locking prevent loosening and ensure stable connections
