Pepperl+Fuchs V15-G-2M-PVC | M12 5-Pin Female Cordset | 2m PVC Cable | IP68/IP69

Pepperl+Fuchs V15-G-2M-PVC | Reliable M12 5-Pin Female Cordset for Industrial Applications

Overview

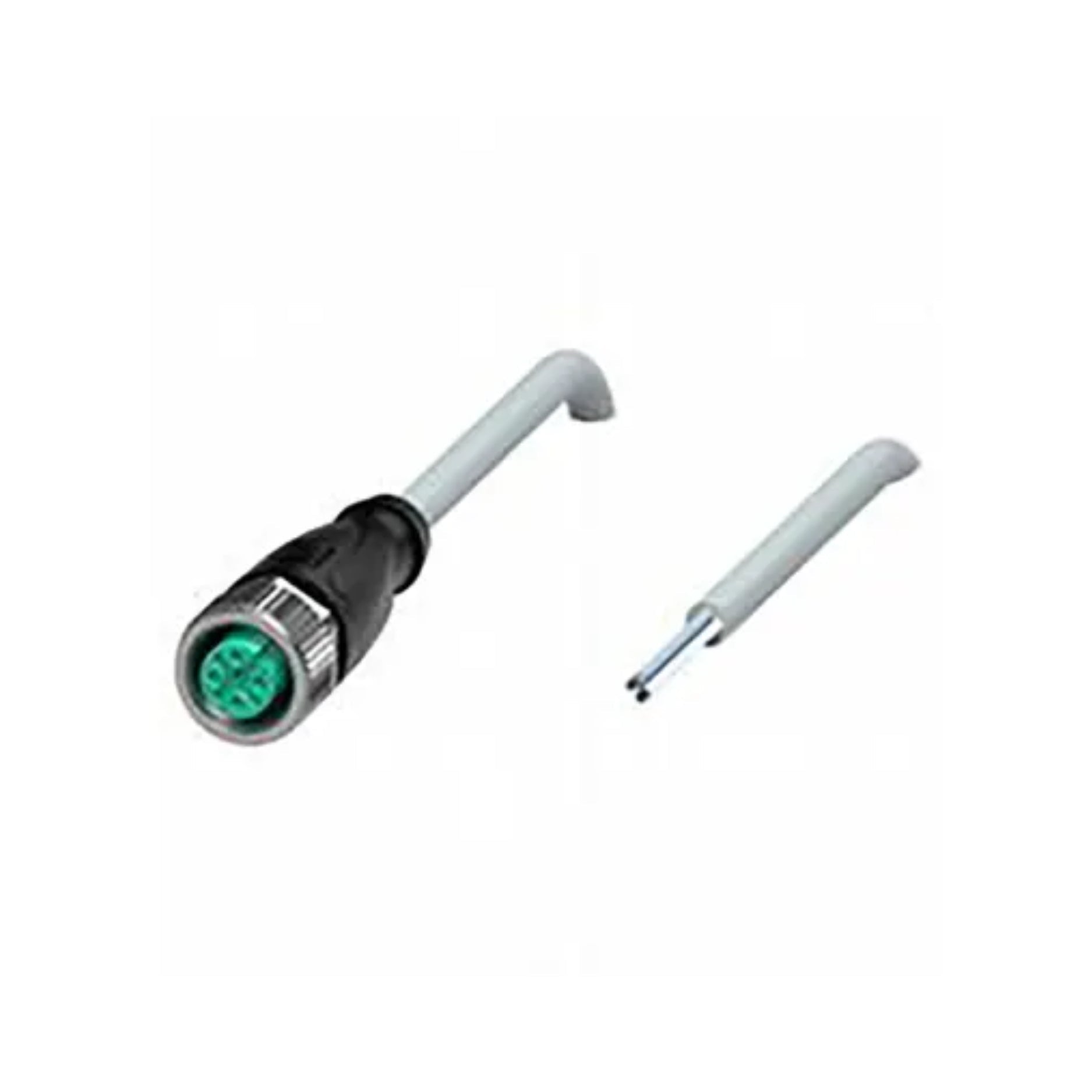

The Pepperl+Fuchs V15-G-2M-PVC is a robust M12 5-pin female cordset designed for secure and stable connections in industrial automation systems. Featuring a 2-meter gray PVC cable, this cordset ensures reliable signal transmission for sensors and actuators. Its durable construction and IP68/IP69 protection rating make it suitable for harsh industrial environments.

Key Features

• Connector Type: M12 female, straight, 5-pin configuration.

• Cable Length: 2 meters, providing flexibility for various applications.

• Cable Material: Polyvinyl Chloride (PVC) sheath, offering durability and flexibility.

• Design: Specific design protects against loosening and inaccurate installation.

• High Protection Rating: IP68/IP69-rated, ensuring robust protection against dust and water ingress.

• Operating Voltage: Supports up to 48 V AC / 60 V DC.

• Operating Current: Handles up to 4 A per contact.

• Temperature Range: Operates effectively in temperatures ranging from -40°C to +90°C for the plug connector, and -40°C to +70°C for fixed cable installations.

Technical Specifications

• Model Number: V15-G-2M-PVC

• Connector 1: M12 female socket, straight, 5-pin, A-coded

• Connector 2: Cable end

• Cable Diameter: 4.8 mm

• Core Cross Section: 0.34 mm²

• Conductor Colors: Brown, white, blue, black, gray

• Bending Radius: >10x cable diameter for movable installation

• Degree of Protection: IP68/IP69

• Compliance: EN 60529, IEC 61076-2-101

Applications

• Industrial Automation: Facilitates reliable connections for sensors and actuators in automated systems.

• Robotics: Ensures secure signal transmission in robotic applications.

• Process Control: Provides dependable connectivity in process monitoring and control systems.

• Machine Building: Ideal for custom machinery requiring robust and field-attachable connectors.

Why Choose Pepperl+Fuchs V15-G-2M-PVC?

• Robust Construction: PVC cable and IP68/IP69 rating ensure durability in harsh industrial environments.

• Secure Installation: Specific design protects against loosening and inaccurate installation.

• Reliable Performance: High-quality materials and construction provide secure and stable electrical connections.

• Trusted Brand: Pepperl+Fuchs is renowned for high-quality industrial components, ensuring reliability and support.

Order Now

Available for immediate shipping worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
