Pepperl+Fuchs V1-W-BK | M12 4-Pin Female Right-Angle Connector | Field-Attachable

Pepperl+Fuchs V1-W-BK | Durable M12 4-Pin Female Right-Angle Field-Attachable Connector for Industrial Applications

Overview

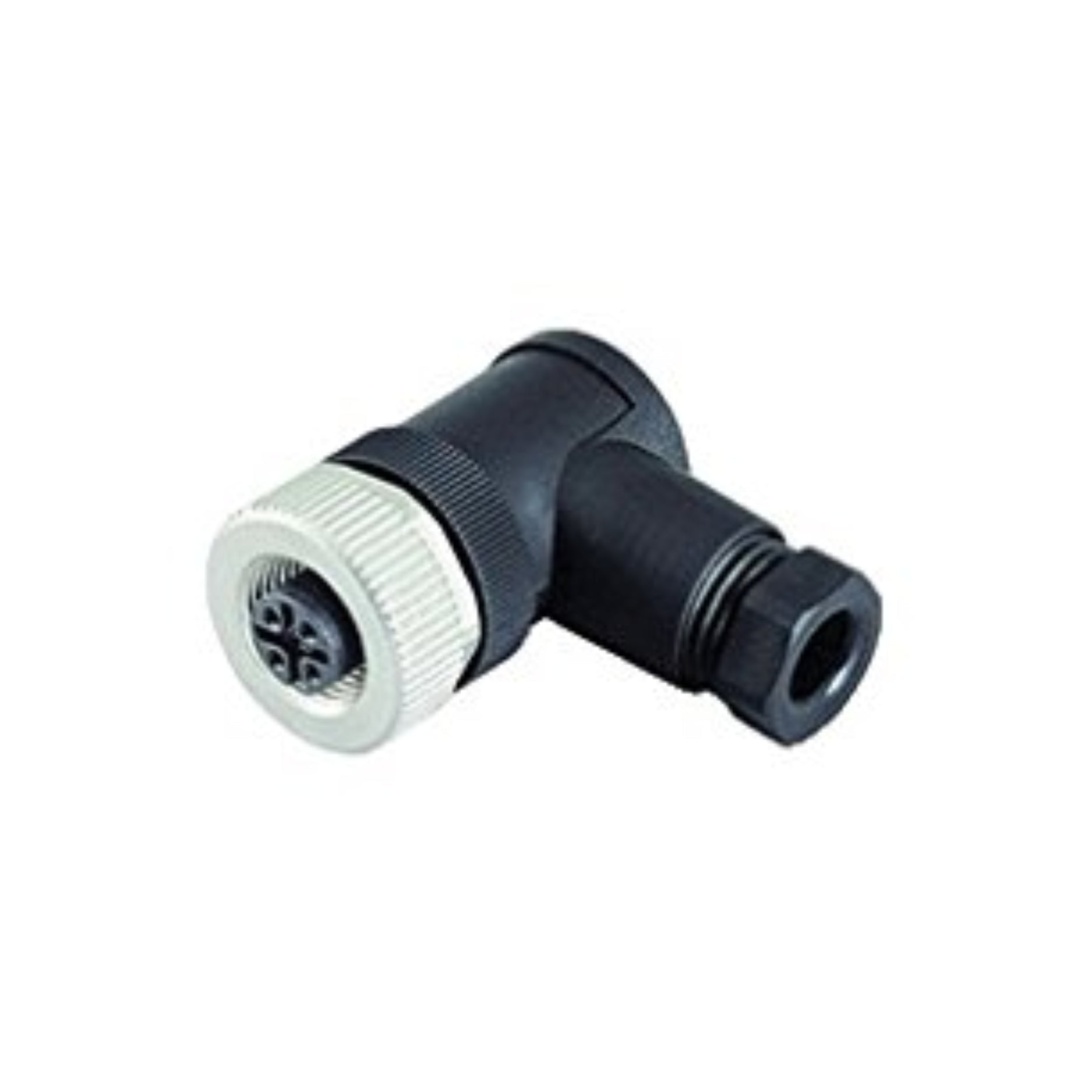

The Pepperl+Fuchs V1-W-BK is a robust M12 4-pin female right-angle field-attachable connector designed for secure and reliable connections in industrial automation systems. Featuring screw terminals accommodating cables with diameters from 4 to 6 mm, this connector ensures stable signal transmission for sensors and actuators. Its durable construction and IP67 protection rating make it suitable for harsh industrial environments.

Key Features

• Connector Type: M12 female, right-angle, 4-pin configuration.

• Field-Attachable: Allows for on-site assembly and customization, reducing downtime and installation costs.

• Screw Terminals: Accommodates cables with diameters ranging from 4 to 6 mm, ensuring secure connections.

• High Protection Rating: IP67-rated, providing robust protection against dust and water ingress.

• Operating Voltage: Supports up to 250 V AC/DC.

• Operating Current: Handles up to 4 A per contact.

• Temperature Range: Operates effectively in temperatures ranging from -40°C to +85°C.

• Durable Construction: Features a nickel-plated copper zinc housing and polyamide body for enhanced durability.

Technical Specifications

• Model Number: V1-W-BK

• Connector 1: M12 female socket, right-angle, 4-pin, A-coded

• Locking Mechanism: Screw connection

• Cable Diameter: 4 to 6 mm

• Core Cross Section: Up to 0.75 mm² (18 AWG)

• Tightening Torque: 0.6 Nm

• Mating Cycles: Minimum of 50

• Degree of Protection: IP67

• Housing Material: Nickel-plated copper zinc

• Body Material: Polyamide (PA), black

• Contact Material: Copper tin zinc

• Insulation Resistance: Minimum of 100 MΩ

• Pollution Degree: 3

• Approvals: cURus approval

Applications

• Industrial Automation: Facilitates reliable connections for sensors and actuators in automated systems.

• Robotics: Ensures secure signal transmission in robotic applications.

• Process Control: Provides dependable connectivity in process monitoring and control systems.

• Machine Building: Ideal for custom machinery requiring robust and field-attachable connectors.

Why Choose Pepperl+Fuchs V1-W-BK?

• Right-Angle Design: Optimizes space in installations with limited clearance.

• Field-Attachable: Enables on-site assembly, offering flexibility and reducing installation time.

• Robust Construction: Nickel-plated housing and IP67 rating ensure durability in harsh industrial environments.

• Reliable Performance: High-quality materials and screw termination provide secure and stable electrical connections.

• Trusted Brand: Pepperl+Fuchs is renowned for high-quality industrial components, ensuring reliability and support.

Order Now

Available for immediate shipping worldwide.
