Pepperl+Fuchs V1-W-2M-PUR | M12 Angled Female Cordset | 4-Pin | 2m PUR Cable

Pepperl+Fuchs V1-W-2M-PUR | M12 Angled 4-Pin Female Cordset with 2m PUR Cable

Overview

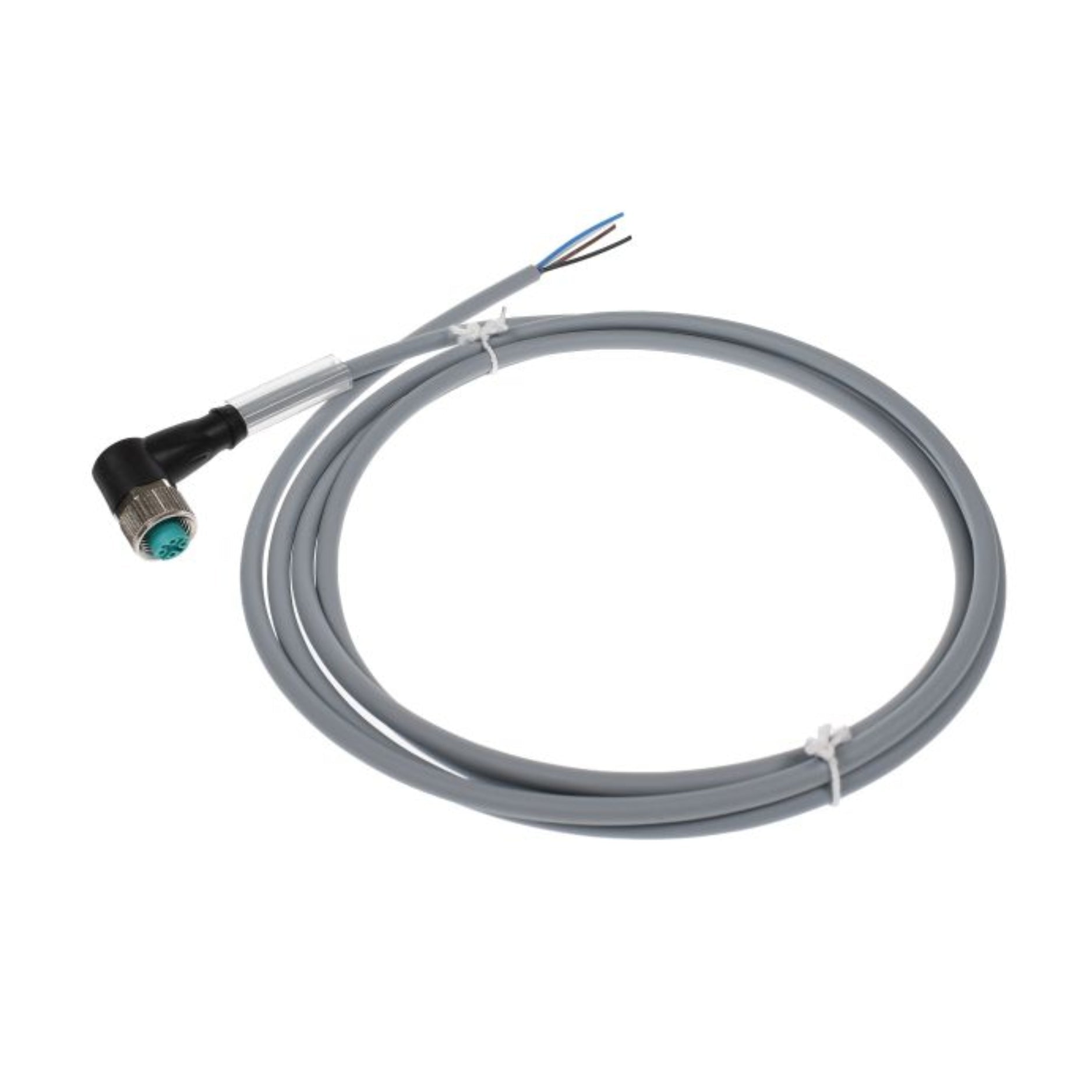

The Pepperl+Fuchs V1-W-2M-PUR is a 4-pin M12 angled female cordset designed for robust and reliable connections in industrial environments. Featuring a 2-meter halogen-free PUR cable, this cordset ensures durability and flexibility, making it ideal for various automation applications.

Key Features

• Connector Type: M12 angled female, 4-pin, A-coded

• Cable Length: 2 meters

• Cable Material: Polyurethane (PUR), halogen-free

• Operating Voltage: Up to 250 V AC/DC

• Operating Current: Up to 4 A

• Temperature Range: -40°C to +90°C (plug connector); -40°C to +80°C (fixed cable installation)

• Protection Class: IP68/IP69

• Chemical Resistance: Resistant to microbes and hydrolysis

• Locking Mechanism: Screw connection with loosening protection

Technical Specifications

• Model Number: V1-W-2M-PUR

• Connector 1:

  • Connection: Socket

  • Construction Type: M12

  • Style: Angled

  • Locking: Screw connection

  • Number of Pins: 4

  • Coding: A-coded

• Connector 2: Cable end

• Electrical Specifications:

  • Operating Voltage (UB): Max. 250 V AC/DC

  • Operating Current (IB): Max. 4 A

• Mechanical Specifications:

  • Tightening Torque: 0.6 Nm

  • Mating Cycles: Minimum 100

  • Cable Diameter: 4.8 mm

  • Core Cross Section: 0.34 mm²

  • Sheath Color: Grey (similar to RAL 7001)

  • Core Colors: Brown, White, Blue, Black

• Environmental Specifications:

  • Ambient Temperature:

    • Plug Connector: -40°C to +90°C

    • Cable (Fixed Installation): -40°C to +80°C

    • Cable (Flexing): -25°C to +80°C

  • Pollution Degree: 3

• Materials:

  • Screw Connection: Zinc diecast, nickel-plated

  • Body: TPU, black

  • Seal: FKM

  • Contact Surface: Gold plated (Au)

  • Cable Sheathing: PUR based on polyether

  • Core Insulation: PP

• Certifications: CE, UKCA

Applications

• Industrial Automation: Reliable connections for sensors and actuators

• Robotics: Flexible cabling solutions for dynamic movements

• Packaging Machinery: Durable connections in high-speed environments

• Material Handling: Secure connections for conveyors and sorting systems

Why Choose Pepperl+Fuchs V1-W-2M-PUR?

• High Durability: PUR cable offers excellent resistance to abrasion, oils, and chemicals

• Secure Connections: Screw locking mechanism with loosening protection ensures stable connections

• Environmental Resilience: IP68/IP69 rating guarantees performance in harsh conditions

• Flexibility: Suitable for both fixed and flexing installations

Order Now

Available for immediate worldwide shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
