Pepperl+Fuchs V1-W-10M-PVC | M12 Angled | 4-Pin | 10 m PVC | IP67

Pepperl+Fuchs V1-W-10M-PVC | M12 Female Cordset, 4-Pin, Angled, 10 m PVC Cable, IP67

Overview:

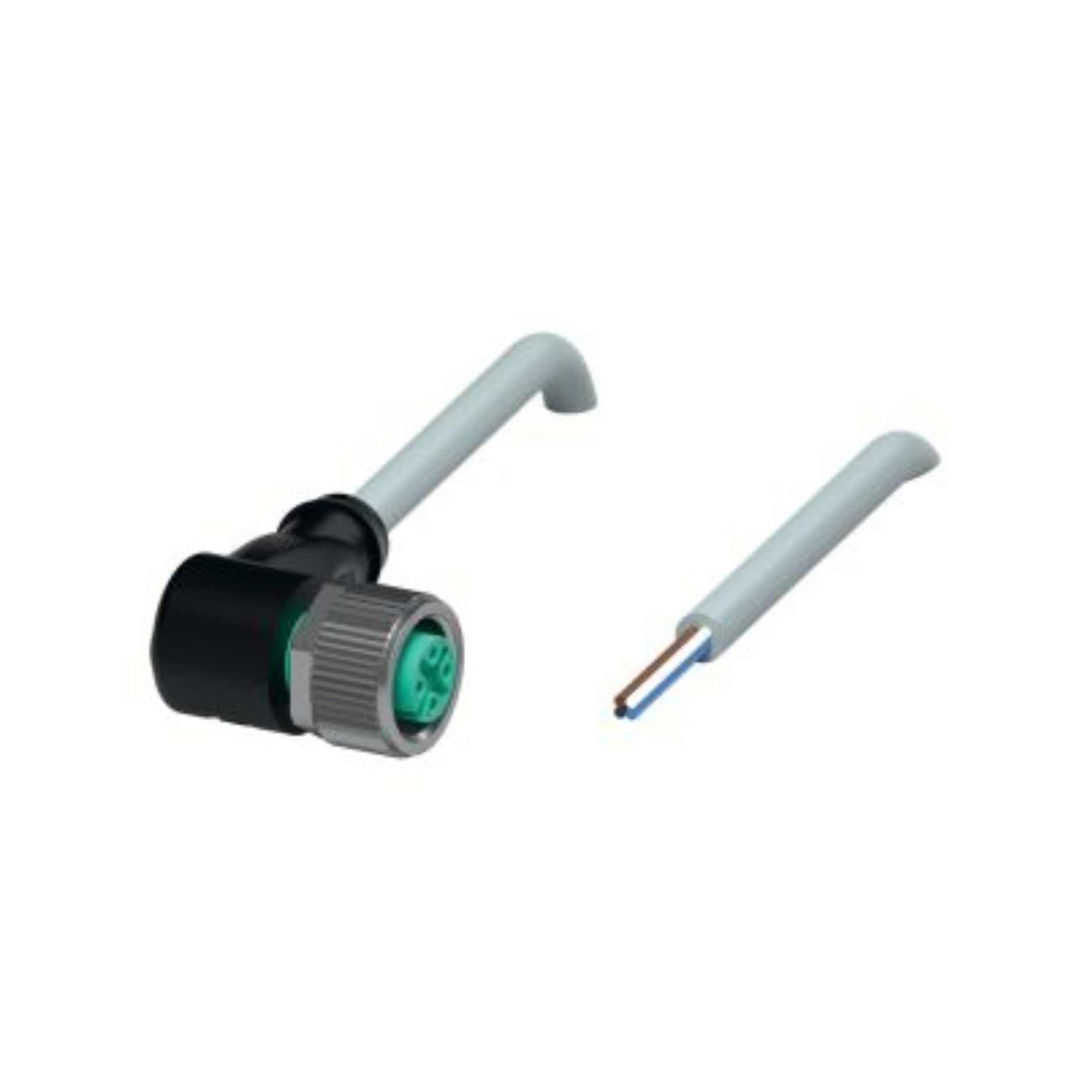

The Pepperl+Fuchs V1-W-10M-PVC (Part No. 033486) is a pre-wired M12 angled female cordset with a 4-pin A-coded connector and a 10-meter PVC cable. Designed for reliable sensor and actuator connectivity, this IP67-rated cordset is perfect for use in industrial automation systems.

Key Features:

• Connector Type: M12, angled (right-angle) female

• Pin Configuration: 4-pin, A-coded

• Cable Length: 10 meters

• Cable Jacket: PVC (Polyvinyl Chloride)

• Rated Voltage: 250 V

• Rated Current: 4 A per contact

• Wire Gauge: 4 x 0.34 mm² (AWG 22)

• Protection Class: IP67 (when properly mated)

• Color: Cable – typically gray or black

Technical Specifications:

• Model Number: V1-W-10M-PVC

• Part Number: 033486

• Connector Standard: IEC 61076-2-101

• Contact Material: Gold-plated brass

• Contact Carrier Material: TPU

• Operating Temperature: -25°C to +80°C

• Cable Diameter Range: ~4.5–6.5 mm

• Bending Radius: ≥ 5x cable diameter (fixed installation)

• Weight: Approx. 450 g

Applications:

• Sensor and Actuator Wiring in factory automation

• I/O Modules: Secure field connection

• Robotic Systems: Ideal for flexible, space-limited environments

• Machine Tools: Power and signal transmission

• OEM Systems: Plug-and-play cabling with M12 compatibility

Why Choose the V1-W-10M-PVC?

✅ Angled M12 connector for space-saving installations
✅ 10 m PVC cable provides durability and flexibility
✅ IP67-rated sealing ensures protection from dust and water
✅ Reliable 4-pin connectivity for signal and power transmission
✅ Easy to install with standard M12 field devices

Order Now:

In stock and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
