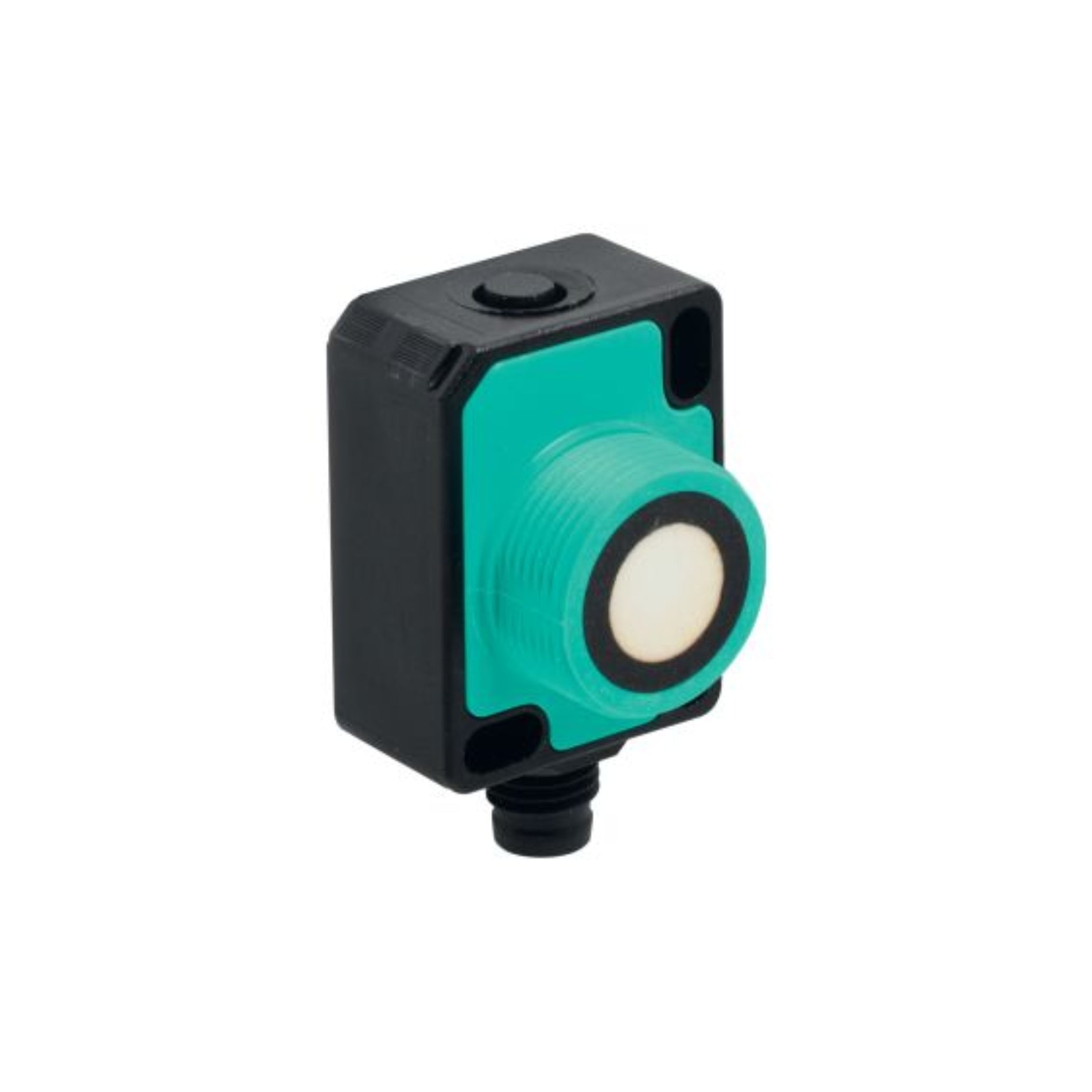

Pepperl+Fuchs UC800-F77S-EP-IO-V31 | Compact Ultrasonic Sensor with IO-Link and 800 mm Range
Overview
The UC800-F77S-EP-IO-V31 from Pepperl+Fuchs is a compact ultrasonic proximity sensor with a maximum sensing range of 800 mm. Featuring IO-Link connectivity, PNP NO/NC switchable output, and an M8 connector, it’s housed in the sleek F77 rectangular enclosure and is rated IP67, making it a top choice for flexible, real-time object detection in modern automation systems.
Key Features
-
800 mm Sensing Range – Accurate and stable detection for mid-range applications
-
PNP Output (NO/NC Switchable) – Flexible digital output options
-
IO-Link Communication – Smart sensor diagnostics, configuration, and integration
-
Compact F77 Housing – Space-saving and robust rectangular design
-
M8 Connector (4-pin) – Quick-connect for easy installation
-
IP67 Rating – Withstands dust, moisture, and industrial conditions
Technical Specifications
-
Model: UC800-F77S-EP-IO-V31
-
Part Number: 261244
-
Sensor Type: Ultrasonic proximity sensor
-
Sensing Range: 60 mm to 800 mm
-
Output Type: PNP, NO/NC (configurable)
-
Communication: IO-Link v1.1
-
Connection: M8 connector, 4-pin
-
Housing Type: Rectangular F77
-
Voltage Supply: 10–30 V DC
-
Switching Frequency: ≤ 5 Hz
-
Response Time: ≤ 80 ms
-
Housing Material: Plastic
-
Protection Rating: IP67
-
Operating Temperature: -25°C to +70°C
Applications
-
Smart Object Detection on Conveyor Lines
-
Distance and Presence Sensing in Automation Systems
-
Level Monitoring in Small Containers
-
Packaging, Robotics, and Material Flow Control
-
Data-Driven Maintenance and Monitoring via IO-Link
Why Choose UC800-F77S-EP-IO-V31?
-
IO-Link enabled for Industry 4.0 integration
-
Dual output logic for flexible use cases
-
Compact size fits into space-constrained machines
