Pepperl+Fuchs UC500-30GM-IUR2-V15 | Ultrasonic Distance Sensor – 500 mm, Analog Output, IP67

Overview

The Pepperl+Fuchs UC500-30GM-IUR2-V15 (Part No. 104092) is a compact ultrasonic sensor with a sensing range up to 500 mm, providing an analog output (4–20 mA / 0–10 V selectable). Designed for precise, non-contact distance measurement, this sensor performs reliably in environments where optical sensors fail due to dust, color, or transparency.

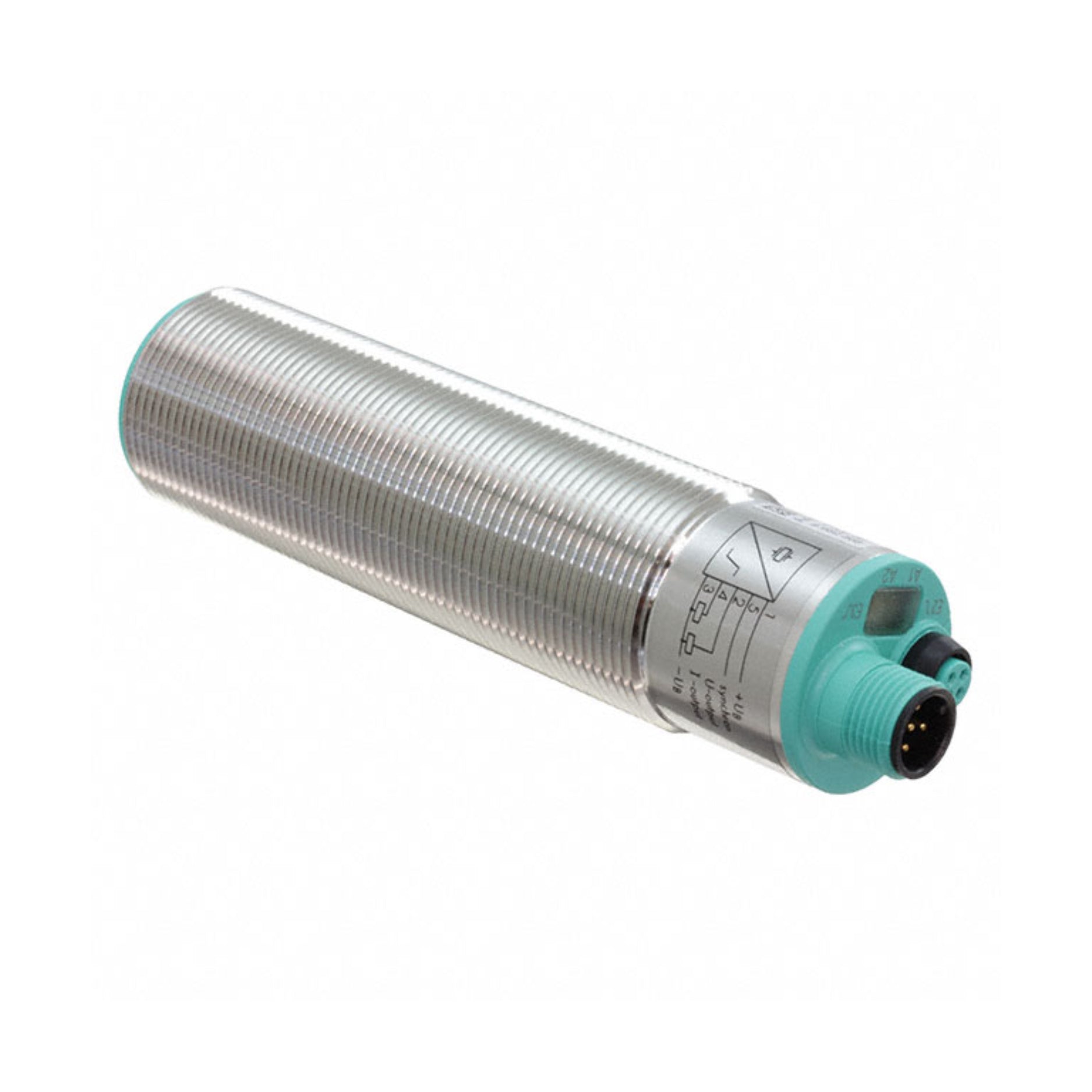

Housed in a durable M30 metal body with an M12 V15 connector, the sensor offers IP67 protection and temperature compensation for consistent accuracy.

Key Features

• Sensing Range: 60 mm to 500 mm

• Output Type: Analog 4–20 mA or 0–10 V (switchable)

• Connector Type: M12, 5-pin (V15)

• Housing: M30 cylindrical, nickel-plated brass

• Temperature Compensation: Ensures stable readings

• Protection Class: IP67 – Dust and waterproof

• LED Indicators: For operating and switching state

Technical Specifications

• Model: UC500-30GM-IUR2-V15

• Part Number: 104092

• Measurement Range: 60–500 mm

• Output Signal: Analog (selectable: 4–20 mA or 0–10 V)

• Supply Voltage: 10–30 VDC

• Response Time: ≤ 300 ms

• Resolution: < 1 mm

• Switching Frequency: ~5 Hz

• Connector: M12 (V15), 5-pin

• Operating Temp: -25°C to +70°C

• Enclosure Rating: IP67

Applications

• Level Sensing – Liquids, grains, powders

• Object Measurement – Conveyor, packaging, and positioning systems

• Industrial Automation – Reliable distance feedback in harsh environments

• Non-Contact Monitoring – Across various surface types and materials

Why Choose the UC500-30GM-IUR2-V15?

• Precise analog measurement in dusty, dirty, or moisture-prone environments

• Dual analog output support for flexibility in integration

• Long-lasting and rugged with IP67 protection

Order Now

Available for global delivery.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
