Pepperl+Fuchs UC4000-L2-I-V15 | Ultrasonic Sensor | 200–4000 mm Range

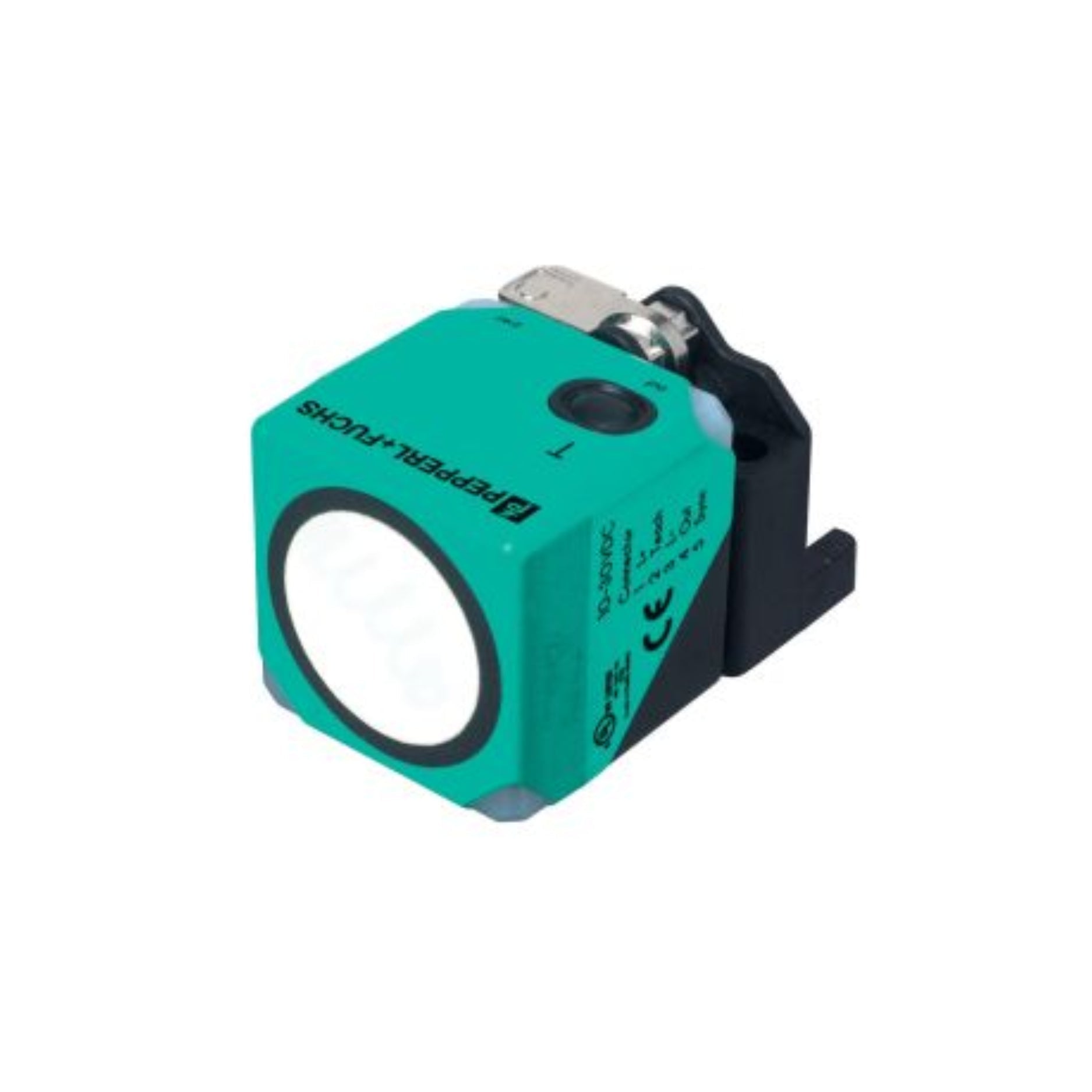

Pepperl+Fuchs UC4000-L2-I-V15 | High-Precision Ultrasonic Sensor with Rotatable Head and Selectable Sound Beam

Overview

The Pepperl+Fuchs UC4000-L2-I-V15 is a versatile ultrasonic sensor designed for accurate distance measurement in industrial automation applications. With a sensing range of 200 to 4000 mm, a 4–20 mA analog output, and a rotatable sensor head, this sensor is ideal for environments requiring precise and reliable object detection.

Key Features

• Sensing Range: 200 to 4000 mm

• Adjustment Range: 240 to 4000 mm

• Dead Band: 0 to 200 mm

• Output Type: 4–20 mA analog current output

• Sensor Head: Bidirectional and rotatable for flexible installation

• Sound Beam Width: Selectable (narrow, medium, wide) for application-specific optimization

• Indicators:

  • Green LED: Power status

  • Yellow LED: Object detection status

  • Red LED: Error indication

• Operating Voltage: 10 to 30 V DC

• No-Load Supply Current: ≤ 50 mA

• Response Delay: ≤ 180 ms

• Time Delay Before Availability: ≤ 1600 ms

• Protection Rating: IP67, ensuring resistance to dust and water ingress

• Operating Temperature Range: -25°C to +70°C (-13°F to +158°F)

• Housing Material: PA-GF35 (Polyamide with 35% glass fiber)

• Connection: 5-pin M12 connector

Technical Specifications

• Model Number: UC4000-L2-I-V15

• Series: L2

• Transducer Frequency: Approximately 85 kHz

• Resolution: Evaluation range [mm]/3200, however ≥ 0.4 mm

• Deviation of Characteristic Curve: ≤ 0.2% of full-scale value

• Repeat Accuracy: ≤ 0.1% of full-scale value

• Load Impedance:

  • ≤ 500 Ω at UB ≥ 14V

  • ≤ 300 Ω at UB < 14V

• Temperature Influence: ≤ 1.5% of full-scale value

• Synchronization: Multiple sensors can be synchronized to prevent mutual interference

• Compliance: EN IEC 60947-5-2:2020, IEC 60947-5-7:2003

• Approvals:

  • UL: cULus Listed, General Purpose

  • CCC: Not required for products rated ≤36 V

Applications

• Material Handling: Distance measurement for conveyor systems

• Packaging: Object detection and positioning in packaging lines

• Automotive: Presence detection in assembly processes

• Food and Beverage: Level measurement in containers and silos

Why Choose Pepperl+Fuchs UC4000-L2-I-V15?

• Rotatable Sensor Head: Allows for flexible installation and alignment

• Selectable Sound Beam Width: Enables optimization for specific applications

• Robust Construction: Durable housing with IP67 rating for harsh environments

• Reliable Performance: High accuracy and repeatability ensure consistent measurements

• User-Friendly Indicators: LEDs provide clear status information for easy monitoring

Order Now

Available for immediate shipping worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
