Overview

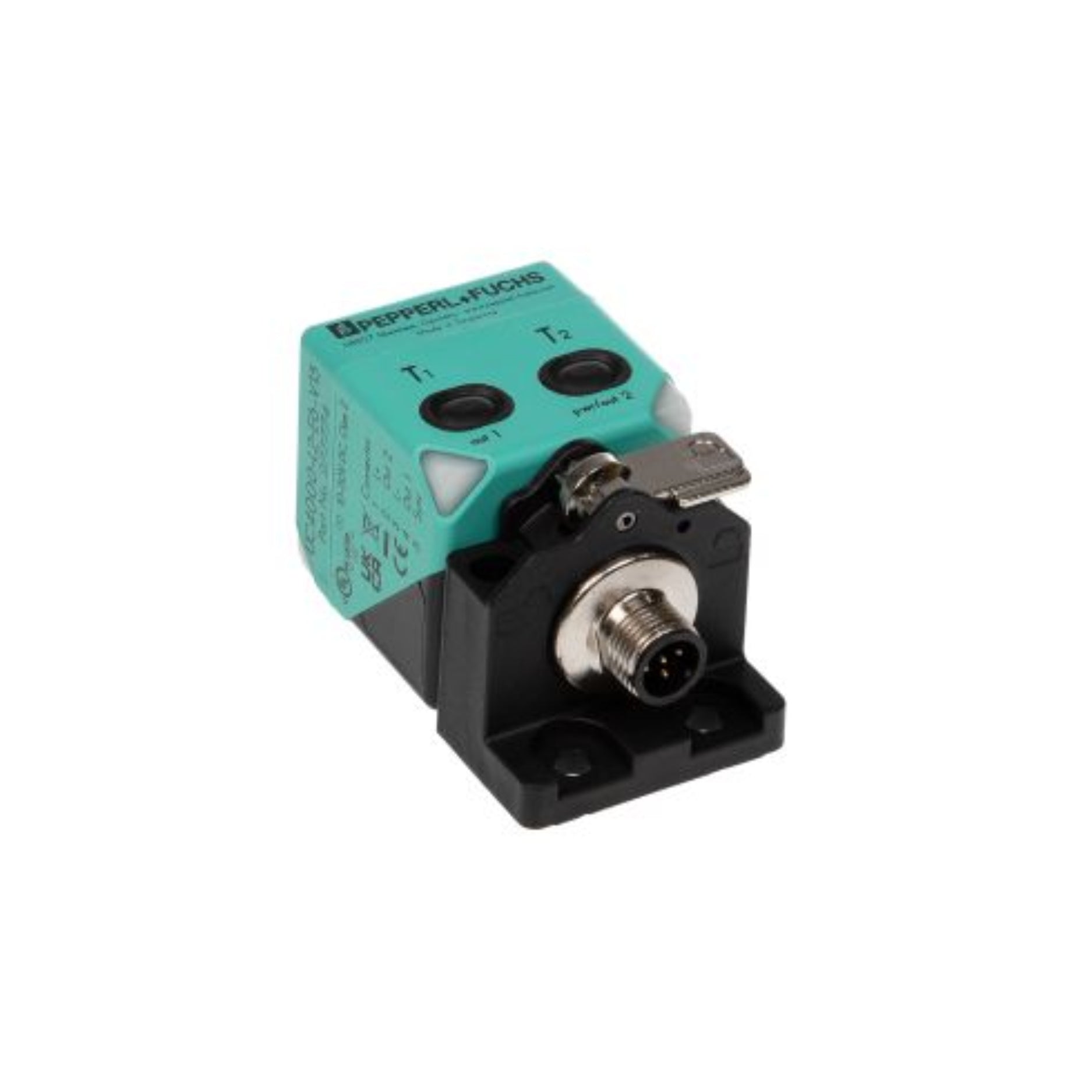

The Pepperl+Fuchs UC4000-L2-E6-V15 is a single-head ultrasonic sensor designed for non-contact distance measurement in industrial applications. With a detection range of 200 to 4000 mm, it offers precise and reliable object detection. The sensor features two programmable PNP switching outputs that can be configured as normally open (NO) or normally closed (NC), providing flexibility for various control scenarios. Its M12 connector ensures easy integration, and the IP67-rated housing guarantees durability in harsh environments.

This sensor is ideal for applications requiring accurate distance measurement, object detection, and level monitoring in industries such as material handling, packaging, and automotive manufacturing.

Key Features

• Detection Range: 200 to 4000 mm

• Adjustment Range: 240 to 4000 mm

• Dead Band: 0 to 200 mm

• Transducer Frequency: Approximately 85 kHz

• Response Delay: Minimum 110 ms; factory setting 280 ms

• Outputs:

  • Two PNP Switching Outputs: Programmable as NO or NC, short-circuit and overload protected

• Indicators:

  • Green LED: Operating display

  • Yellow LEDs: Switching state indicators for outputs 1 and 2

  • Red LED: Error indicator

• Synchronization Input: Allows for synchronization of multiple sensors to prevent mutual interference

• Programmability: Configurable via serial interface (programming adapter required)

• Selectable Sound Lobe Width: Adaptable to application requirements

• Temperature Compensation: Ensures measurement accuracy across temperature variations

• Housing Material: PA-GF35 (polyamide with glass fiber reinforcement)

• Degree of Protection: IP67

• Connection Type: M12 x 1, 5-pin connector plug

Technical Specifications

• Model Number: UC4000-L2-E6-V15

• Part Number: 277774

• Operating Voltage: 10 to 30 V DC, ripple 10% SS

• No-Load Supply Current: ≤ 50 mA

• Switching Frequency: ≤ 2.8 Hz

• Repeat Accuracy: ≤ 0.1% of full-scale value

• Range Hysteresis: Programmable, preset to 1 mm

• Temperature Influence: < 1.5% of full-scale value

• Ambient Temperature Range: -25°C to +70°C (-13°F to +158°F)

• Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)

• Housing Dimensions: 40 mm x 40 mm x 40 mm

• Mass: 120 g

• Compliance:

  • UL Approval: cULus Listed, Class 2 Power Source

  • Standard Conformity: EN IEC 60947-5-2:2020, IEC 60947-5-2:2019

Applications

• Material Handling: Accurate detection of objects on conveyors

• Packaging Industry: Level monitoring and object detection in packaging lines

• Automotive Manufacturing: Distance measurement for assembly processes

• Tank Level Monitoring: Non-contact measurement of liquid levels

• Harsh Environments: Suitable for use in dusty or moist conditions due to IP67 protection

Why Choose the UC4000-L2-E6-V15?

• Wide Detection Range: Capable of detecting objects from 200 to 4000 mm

• Flexible Output Configuration: Two programmable PNP outputs for versatile control options

• Advanced Synchronization: Prevents mutual interference when using multiple sensors

• Robust Construction: Durable housing ensures longevity in demanding environments

• Programmable Features: Customizable settings via serial interface for tailored operation

• Temperature Compensation: Maintains accuracy across varying temperatures
