Pepperl+Fuchs UC4000-30GM-IUEP-IO-V15

Pepperl+Fuchs UC4000-30GM-IUEP-IO-V15 | High-Precision M30 Ultrasonic Sensor with IO-Link and Selectable Sound Beam

Overview

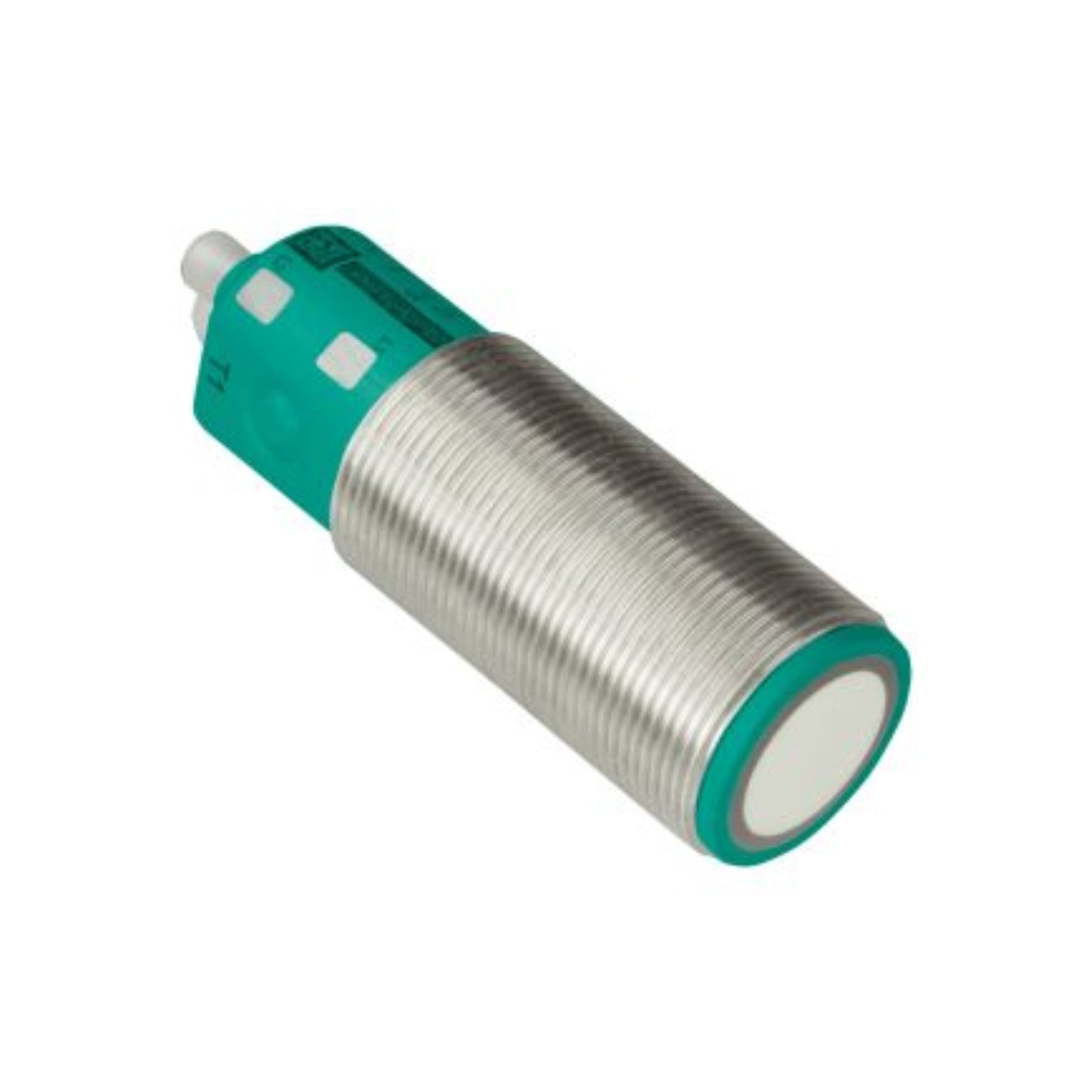

The Pepperl+Fuchs UC4000-30GM-IUEP-IO-V15 is a versatile ultrasonic sensor designed for accurate distance measurement in industrial automation applications. With a sensing range of 200 to 4000 mm, IO-Link interface, and a robust M30 stainless steel housing, this sensor is ideal for environments requiring precise and reliable object detection.

Key Features

• Sensing Range: 200 to 4000 mm

• Adjustment Range: 240 to 4000 mm

• Dead Band: 0 to 200 mm

• Output Types:

  • Push-Pull (4 in 1) Output: Short-circuit and reverse polarity protected

  • Analog Output: Configurable as 4–20 mA current output or 0–10 V voltage output

• Interface: IO-Link V1.0 for service and process data

• Housing: M30 threaded, stainless steel construction

• Connection: 5-pin M12 connector

• Operating Voltage: 10 to 30 V DC

• Power Consumption: ≤ 1 W

• Response Delay: Minimum 115 ms; factory setting 225 ms

• Protection Rating: IP67, ensuring resistance to dust and water ingress

• Operating Temperature Range: -25°C to +70°C (-13°F to +158°F)

• Indicators:

  • Green LED: Power status

  • Yellow LEDs (L1 and L2): Object detection status

  • Red LED: Error indication

• Selectable Sound Beam Width: Narrow, medium, or wide, programmable via push buttons or IO-Link

Technical Specifications

• Model Number: UC4000-30GM-IUEP-IO-V15

• Transducer Frequency: Approximately 85 kHz

• Resolution:

  • Current Output: Evaluation range [mm]/3200 but ≥ 0.35 mm

  • Voltage Output: Evaluation range [mm]/4000 but ≥ 0.35 mm

• Deviation of Characteristic Curve: ≤ 0.2% of full-scale value

• Repeat Accuracy: ≤ 0.1% of full-scale value

• Switching Frequency: ≤ 2 Hz

• Range Hysteresis: 1% of the adjusted operating range (default settings), programmable

• Load Impedance:

  • Current Output: ≤ 300 Ohm

  • Voltage Output: ≥ 1000 Ohm

• Temperature Influence:

  • ≤ 1.5% of full-scale value (with temperature compensation)

  • ≤ 0.2%/K (without temperature compensation)

• Synchronization Options: Multiple sensors can be synchronized to prevent mutual interference

• Compliance: EN IEC 60947-5-2:2020, IEC 60947-5-7:2003

• Approvals:

  • UL: cULus Listed, Class 2 Power Source

  • CCC: Not required for products rated ≤36 V

Applications

• Material Handling: Distance measurement for conveyor systems

• Packaging: Object detection and positioning in packaging lines

• Automotive: Presence detection in assembly processes

• Food and Beverage: Level measurement in containers and silos

Why Choose Pepperl+Fuchs UC4000-30GM-IUEP-IO-V15?

• Versatile Output Options: Offers both digital and analog outputs for flexible integration

• Advanced Communication: IO-Link interface enables seamless integration into modern automation systems

• Robust Construction: Durable stainless steel housing with IP67 rating for harsh environments

• Customizable Detection: Selectable sound beam width allows optimization for specific applications

• Reliable Performance: High accuracy and repeatability ensure consistent measurements

Order Now

Available for immediate shipping worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
