Pepperl+Fuchs UC2000-L2-E5-V15 | 2000 mm | Analog 0–10 V | IP67

Pepperl+Fuchs UC2000-L2-E5-V15 | Ultrasonic Sensor, 2000 mm, Analog 0–10 V, IP67

Overview:

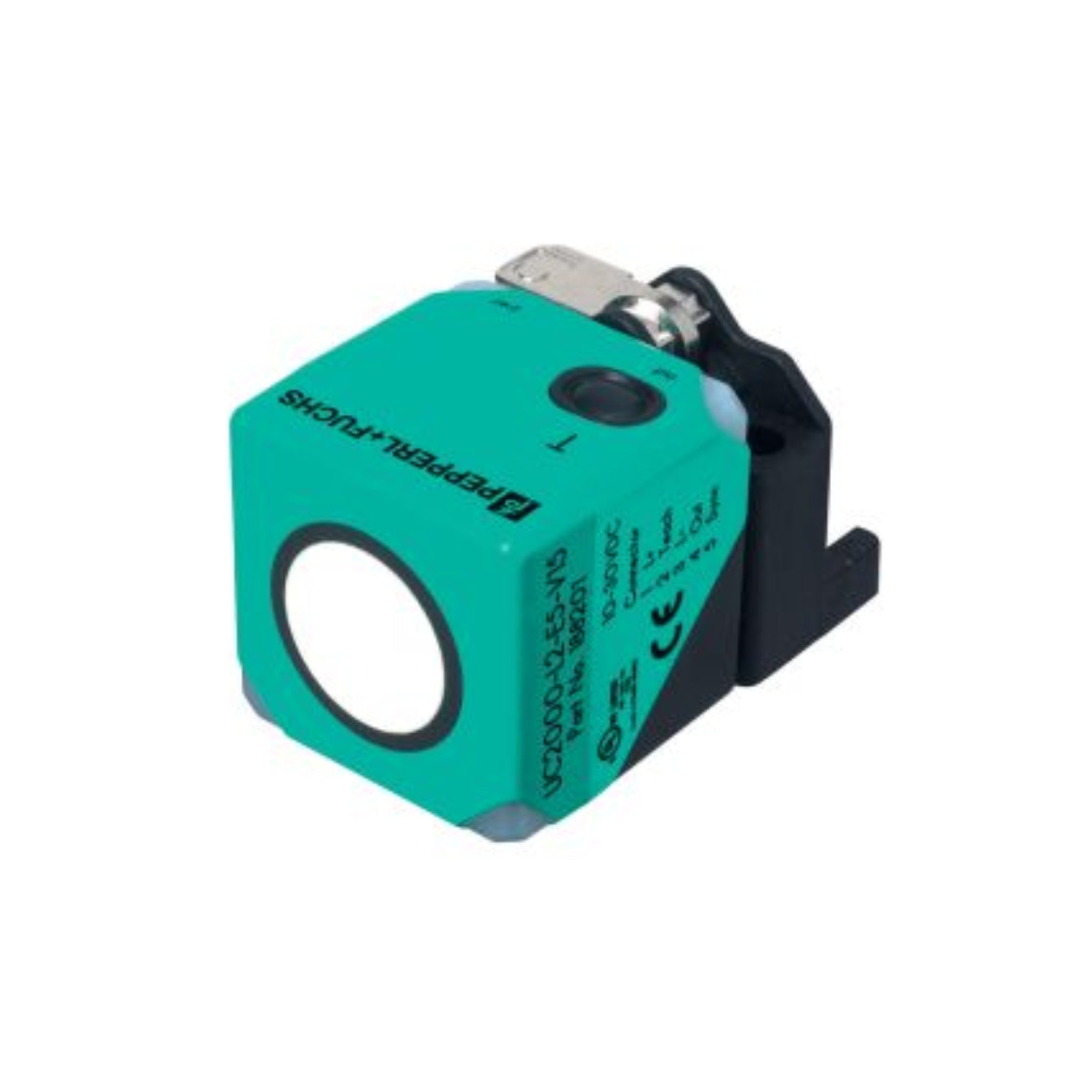

The Pepperl+Fuchs UC2000-L2-E5-V15 (Part No. 277764) is a long-range ultrasonic sensor designed for non-contact distance measurement up to 2000 mm (2 meters). With an analog 0–10 V output, compact L2-style housing, and IP67 protection, this sensor is ideal for continuous level detection and object measurement in industrial environments.

Key Features:

• Sensing Range: 80–2000 mm

• Output Type: Analog 0–10 V

• Supply Voltage: 10–30 VDC

• Housing Style: L2 rectangular housing

• Connector: M12, 5-pin male

• Protection Class: IP67

• Teach-In Function: Manual or remote configuration

• LED Indicators: Signal and power status

• Temperature Range: -25°C to +70°C

Technical Specifications:

• Model Number: UC2000-L2-E5-V15

• Part Number: 277764

• Technology: Ultrasonic diffuse mode

• Resolution: ≤ 0.3 mm

• Linearity Deviation: ≤ 1% of full-scale

• Repeat Accuracy: ±0.15%

• Load Resistance: ≥ 2 kΩ

• Current Consumption: ≤ 35 mA

• Material – Housing: Plastic (PBT)

• Weight: Approx. 120 g

• Mounting: Universal bracket or surface mount

Applications:

• Level Measurement: Monitor liquid or solid fill levels in tanks

• Material Handling: Detect object position or presence

• Packaging Automation: Continuous distance feedback for product flow

• Logistics Systems: Measure and track containers or packages

• OEM Equipment: Embedded analog sensing for motion systems

Why Choose the UC2000-L2-E5-V15?

✅ Long 2 m sensing range ideal for level and distance measurement
✅ Analog 0–10 V output for smooth integration into controllers
✅ Compact L2 housing fits into limited-space applications
✅ IP67-rated durability for industrial environments
✅ Teach-in functionality allows easy setup and calibration

Order Now:

In stock and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
