Pepperl+Fuchs UC2000-30GM-IUR2-V15 | 104093 Ultrasonic Sensor,

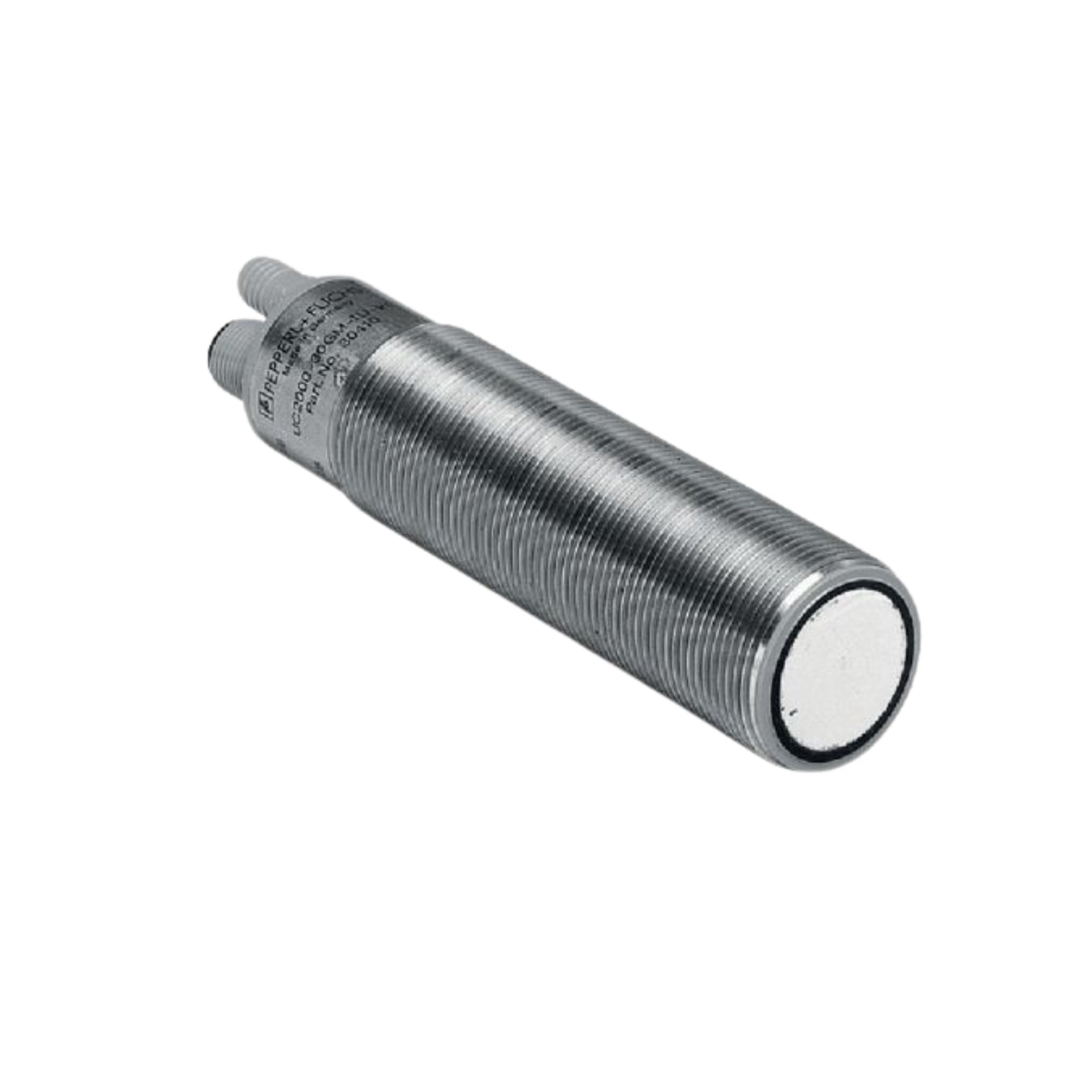

Pepperl+Fuchs UC2000-30GM-IUR2-V15 | Ultrasonic Distance Sensor – Part No. 104093

Overview

The UC2000-30GM-IUR2-V15 (104093) from Pepperl+Fuchs is a compact ultrasonic sensor with a sensing range of up to 2,000 mm. Housed in a durable M30 cylindrical metal housing, this sensor features both analog (4–20 mA or 0–10 V selectable) and switching (PNP NO) outputs, making it ideal for precise object detection and level measurement.

It includes teach-in functionality, temperature compensation, and IP67 protection, making it suitable for demanding applications in automation, material handling, packaging, and logistics.

Key Features

• MFG Item Number: 104093

• Sensing Range: 250 mm to 2,000 mm

• Output Types:

  • 1 analog (4–20 mA or 0–10 V, selectable)

  • 1 discrete PNP switching output (normally open)

• Teach-In Configuration: Local or remote teach-in supported

• Temperature Compensation: For stable performance

• Housing: M30 threaded metal body

• Electrical Connection: M12 5-pin connector

• Protection Class: IP67

• Status Indicators: LEDs for power and switching state

Technical Specifications

• Model: UC2000-30GM-IUR2-V15

• Item Number: 104093

• Sensing Range: 250 mm to 2,000 mm

• Resolution: ≤ 0.18 mm

• Response Time: ~300 ms

• Power Supply: 10–30 V DC

• Repeat Accuracy: ±1% of full scale

• Output Current (PNP): Max. 100 mA

• Operating Temp Range: –25 °C to +70 °C

• Housing Material: Nickel-plated brass

• Connection: M12 connector, 5-pin

• Enclosure Rating: IP67

• Mounting: Threaded cylindrical body with locking nuts

Applications

• Level Monitoring – Ideal for short-range tank and container applications

• Packaging Machinery – Detects items regardless of shape, color, or surface

• Conveyor Systems – Presence detection or gap measurement

• Automated Storage – Object detection in confined spaces

• Non-Contact Distance Measurement – Clean and safe solution for delicate objects

Why Choose the UC2000-30GM-IUR2-V15 (104093)?

• Dual output for flexible integration (analog + switching)

• High durability with IP67-rated metal housing

• Reliable sensing on any surface — clear, reflective, or dark

• Compact M30 form factor fits most automation setups

Order Now

Pepperl+Fuchs UC2000-30GM-IUR2-V15 (104093) is available and ready to ship.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
