Pepperl+Fuchs UC2000-30GM-IUEP-IO-V15 | Ultrasonic Sensor | 90–2000 mm Range

Pepperl+Fuchs UC2000-30GM-IUEP-IO-V15 | Ultrasonic Sensor – 90–2000 mm Detection Range, IO-Link Interface

Overview

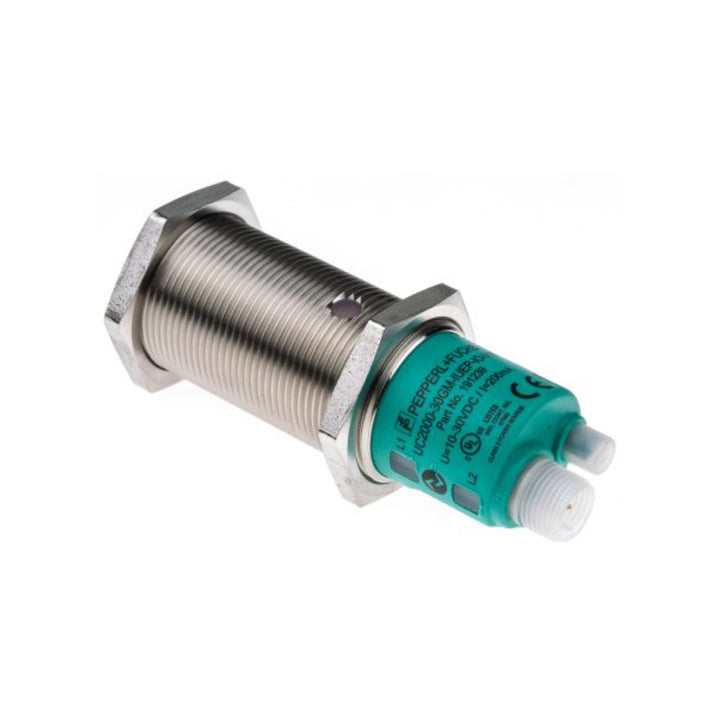

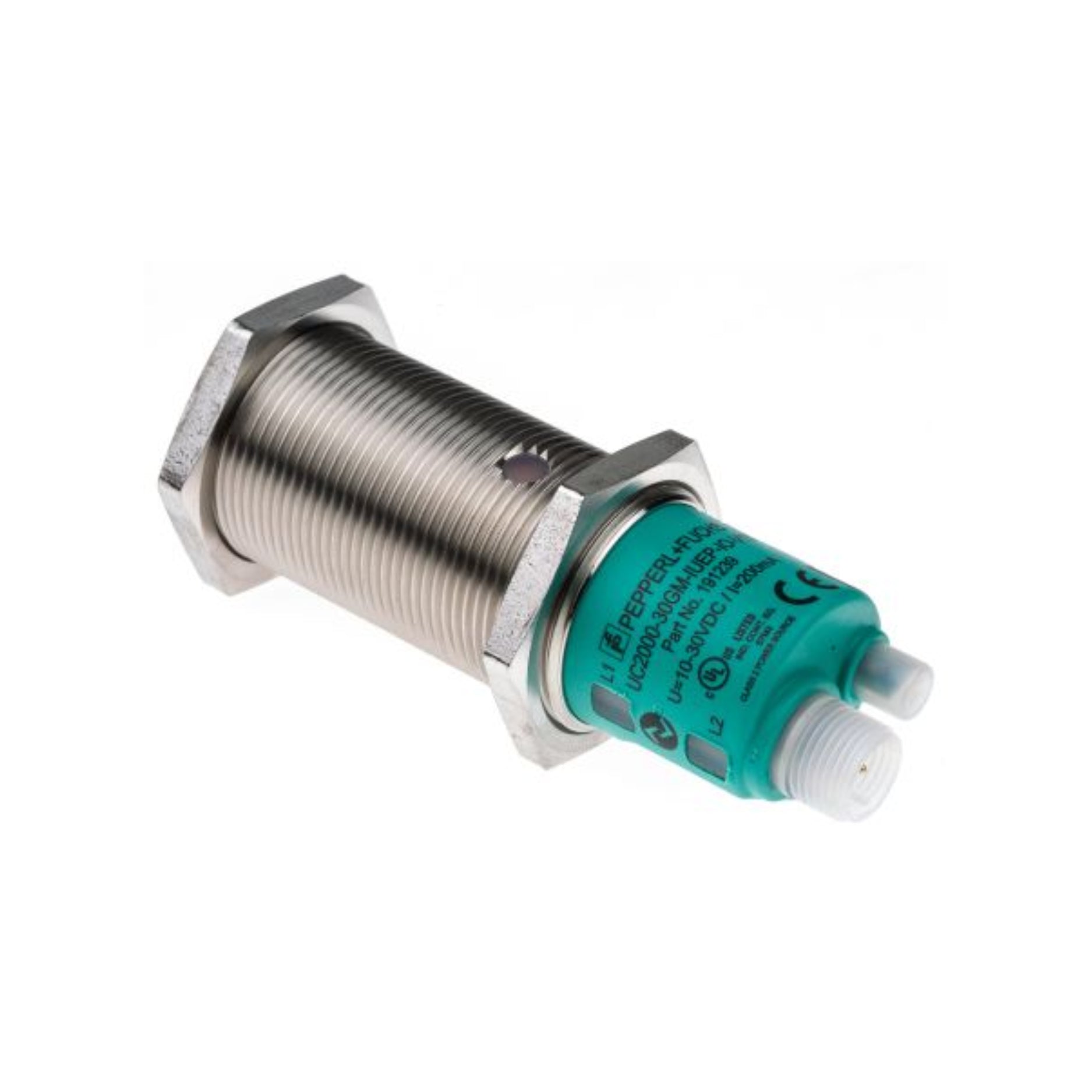

The Pepperl+Fuchs UC2000-30GM-IUEP-IO-V15 is a cylindrical ultrasonic sensor designed for non-contact distance measurement in industrial applications. With a detection range of 90 to 2000 mm, it offers precise and reliable object detection. The sensor features an IO-Link interface for seamless integration and communication with control systems, and its M30 stainless steel housing ensures durability in harsh environments.

This sensor is ideal for applications requiring accurate distance measurement, object detection, and level monitoring in industries such as packaging, robotics, and quality control systems.

Key Features

• Detection Range: 90 to 2000 mm

• Adjustment Range: 120 to 2000 mm

• Dead Band: 0 to 90 mm

• Transducer Frequency: Approximately 200 kHz

• Response Delay: Minimum 65 ms; factory setting 125 ms

• Output Types:

  • Switching Output: Push-pull (4-in-1), short-circuit and reverse polarity protected

  • Analog Output: Configurable as 4–20 mA current output or 0–10 V voltage output

• Interface: IO-Link V1.0 for service and process data

• Programmability: Configurable via DTM with PACTWARE

• Selectable Sound Lobe Width: Adaptable to application requirements

• Synchronization Options: Supports common mode and multiplex operation

• Temperature Compensation: Ensures measurement accuracy across temperature variations

• Indicators:

  • Green LED: Power status and IO-Link communication

  • Yellow LEDs: Object detection and learning function status

  • Red LED: Error and programming function status

• Housing Material: Stainless steel 1.4305 / AISI 303

• Degree of Protection: IP67

• Connection Type: M12 x 1, 5-pin connector plug

Technical Specifications

• Model Number: UC2000-30GM-IUEP-IO-V15

• Part Number: 191239

• Operating Voltage: 10 to 30 V DC (15 to 30 V for voltage output)

• No-Load Supply Current: ≤ 60 mA

• Power Consumption: ≤ 1 W

• Time Delay Before Availability: ≤ 120 ms

• Switching Frequency: ≤ 4 Hz

• Resolution:

  • Current Output: Evaluation range [mm]/3200 but ≥ 0.35 mm

  • Voltage Output: Evaluation range [mm]/4000 but ≥ 0.35 mm

• Deviation of Characteristic Curve: ≤ 0.2% of full-scale value

• Repeat Accuracy: ≤ 0.1% of full-scale value

• Range Hysteresis: 1% of the adjusted operating range (default settings), programmable

• Load Impedance:

  • Current Output: ≤ 300 Ohm

  • Voltage Output: ≥ 1000 Ohm

• Temperature Influence: ≤ 1.5% from full-scale value (with temperature compensation); ≤ 0.2%/K (without temperature compensation)

• Ambient Temperature Range: -25°C to +70°C (-13°F to +158°F)

• Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)

• Housing Dimensions: M30 x 1.5 thread, 81 mm length

• Mass: 72 g

• Compliance:

  • UL Approval: cULus Listed, Class 2 Power Source

  • CCC Approval: Not required for products rated ≤36 V

Applications

• Industrial Automation: Precise distance measurement and object detection

• Packaging Industry: Level monitoring and material handling

• Robotics: Obstacle detection and positioning

• Quality Control Systems: Non-contact measurement for inspection processes

• Harsh Environments: Suitable for use in dusty or moist conditions due to IP67 protection

Why Choose the UC2000-30GM-IUEP-IO-V15?

• Versatile Detection Range: Capable of detecting objects from 90 to 2000 mm

• Flexible Output Options: Offers both switching and analog outputs for diverse application needs

• Advanced Communication: IO-Link interface facilitates seamless integration and data exchange

• Robust Construction: Stainless steel housing ensures durability in demanding environments

• Programmable Features: Customizable settings via PACTWARE for tailored operation

• Temperature Compensation: Maintains accuracy across varying temperatures
