Pepperl+Fuchs UBE1000-18GM40-SE2-V1 | M18 | 1000 mm | PNP | IP67

Pepperl+Fuchs UBE1000-18GM40-SE2-V1 | M18 Ultrasonic Sensor, 1000 mm, PNP NO/NC, IP67

Overview:

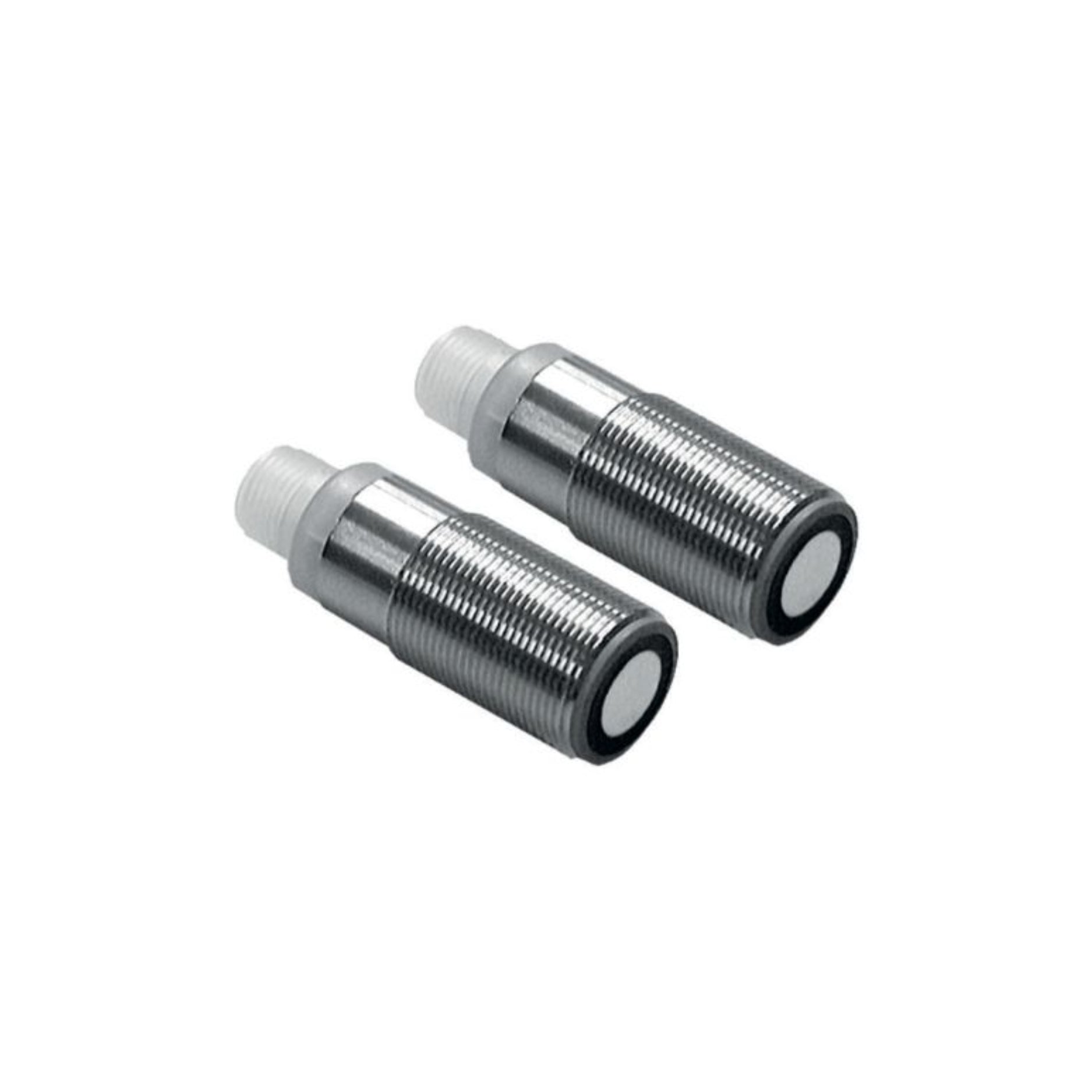

The Pepperl+Fuchs UBE1000-18GM40-SE2-V1 (Part No. 205346) is a compact ultrasonic sensor designed for precise non-contact distance measurement up to 1,000 mm. Housed in a durable M18 threaded barrel, this sensor is perfect for detecting objects regardless of surface, color, or material — even in dusty or moist environments.

Key Features:

• Sensing Range: 100–1000 mm

• Output Type: PNP, switchable NO/NC

• Supply Voltage: 10–30 VDC

• Housing: M18 x 1 cylindrical metal housing

• Connection: M12, 4-pin connector

• Protection Class: IP67 – waterproof and dustproof

• Temperature Range: -25°C to +70°C

• Teach-In Function: Easy parameter setup

• Switching Frequency: ~10 Hz

• LED Indicators: Status and signal strength

Technical Specifications:

• Model Number: UBE1000-18GM40-SE2-V1

• Part Number: 205346

• Measurement Type: Ultrasonic diffuse mode

• Min. Sensing Distance: 100 mm

• Max. Sensing Distance: 1000 mm

• Output Configuration: PNP, NO/NC selectable

• Repeat Accuracy: ±0.15% of full scale

• Resolution: ≤ 1 mm

• Voltage Drop: ≤ 2.5 V

• Load Current: ≤ 100 mA

• Short-Circuit & Reverse Polarity Protection: Yes

• Material: Housing – nickel-plated brass; Sensing face – plastic

• Weight: Approx. 50 g

Applications:

• Level Detection: Monitor tank or bin fill levels

• Object Detection: Detect clear, shiny, or dark surfaces

• Packaging Lines: Ensure product presence and positioning

• Material Handling: Measure distances or trigger sorting

• Robotics: Non-contact sensing for safety or alignment

Why Choose the UBE1000-18GM40-SE2-V1?

✅ Wide 1000 mm range for flexible applications
✅ Reliable in all lighting or surface conditions
✅ PNP NO/NC configurable output for control flexibility
✅ Rugged IP67 protection for harsh environments
✅ Fast setup with Teach-in and LED feedback

Order Now:

In stock and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
