Pepperl+Fuchs UB500-18GM75-E6-V15 | M18 Ultrasonic Sensor, 500 mm, Analog Output, IP67

Overview:

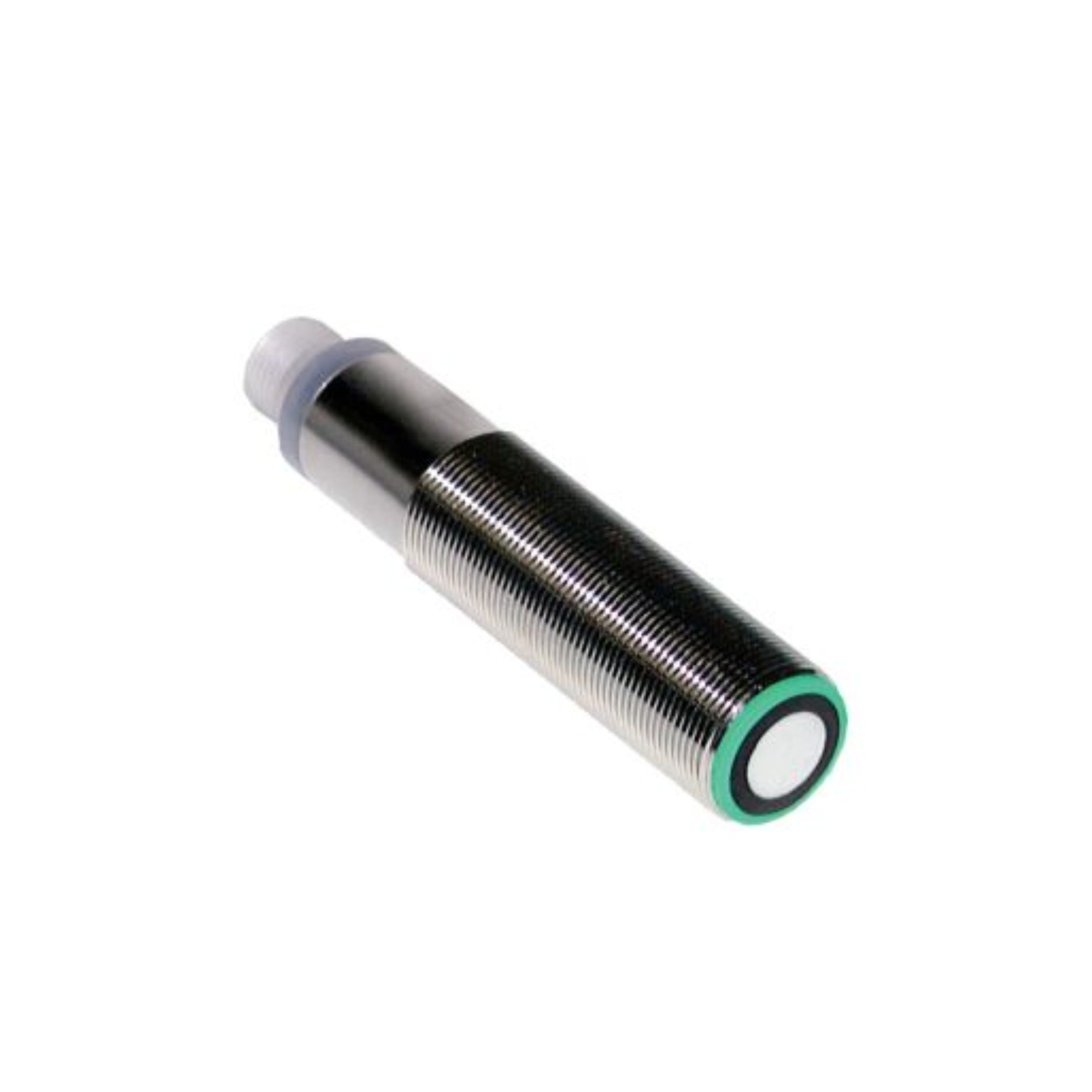

The Pepperl+Fuchs UB500-18GM75-E6-V15 (Part No. 130228) is a compact ultrasonic sensor designed for precise analog distance measurement up to 500 mm. Housed in an M18 cylindrical body, this sensor features non-contact detection with high reliability, regardless of surface texture, transparency, or color. Ideal for industrial automation, it’s perfect for challenging detection tasks where photoelectric sensors may fall short.

Key Features:

• Measuring Range: 30–500 mm

• Output Type: Analog (0–10 V)

• Supply Voltage: 10–30 VDC

• Housing Type: M18 x 1, nickel-plated brass

• Connection: M12 4-pin connector

• Protection Class: IP67

• Temperature Range: -25°C to +70°C

• Teach-in Function: Easy configuration of sensing range

• Switching Frequency: ~20 Hz

• LED Display: Visual signal and output status

Technical Specifications:

• Model Number: UB500-18GM75-E6-V15

• Part Number: 130228

• Sensor Type: Ultrasonic, diffuse mode

• Minimum Sensing Distance: 30 mm

• Maximum Sensing Distance: 500 mm

• Output Signal: Analog 0–10 V

• Linearity Deviation: ≤ 1% of full scale

• Repeat Accuracy: ±0.15%

• Resolution: ≤ 1 mm

• Current Consumption: ≤ 30 mA

• Load Resistance (Analog): ≥ 2 kΩ

• Material: Housing – nickel-plated brass; Sensing face – plastic

• Weight: Approx. 45 g

Applications:

• Level Monitoring: Detect fill levels in tanks or containers

• Packaging & Bottling Lines: Measure spacing or position

• Material Handling: Provide analog feedback for control loops

• Clear Object Detection: Works with transparent or reflective surfaces

• Machine Automation: Non-contact position measurement

Why Choose the UB500-18GM75-E6-V15?

✅ Reliable analog distance feedback up to 500 mm
✅ Not affected by color, transparency, or lighting
✅ Durable IP67 housing for industrial use
✅ Easy installation with standard M12 connector
✅ Compact design fits in tight spaces

Order Now:

Available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
