Pepperl+Fuchs UB300-18GM40-U-V1 | M18 Ultrasonic Sensor | 35–300 mm Range

Pepperl+Fuchs UB300-18GM40-U-V1 | High-Precision M18 Ultrasonic Sensor for Accurate Distance Measurement

Overview

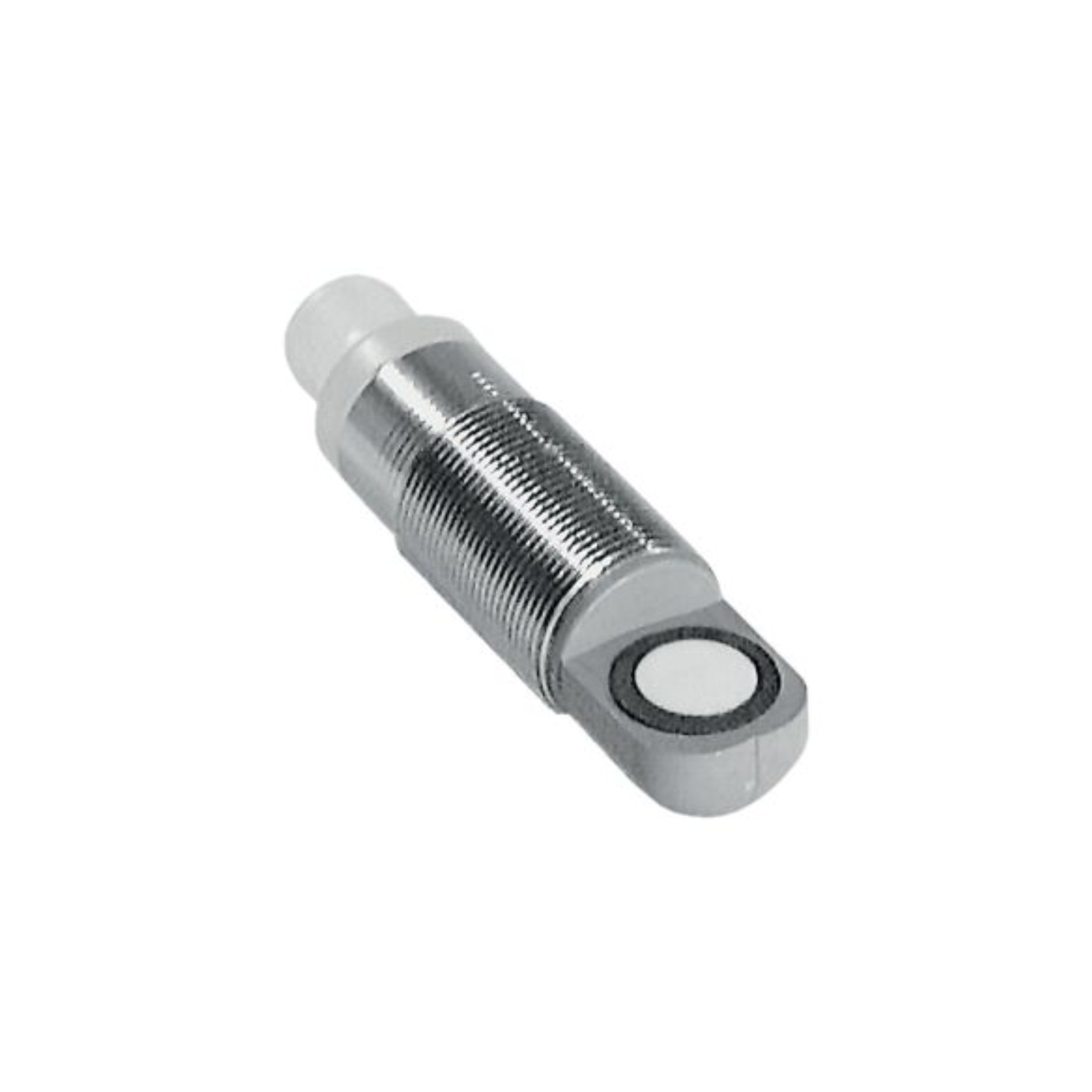

The Pepperl+Fuchs UB300-18GM40-U-V1 is a compact M18 ultrasonic sensor designed for precise non-contact distance measurement within a range of 35 to 300 mm. Featuring a 0–10 V analog output, this sensor delivers accurate and reliable performance in various industrial applications. Its robust construction and IP67 protection rating ensure durability in challenging environments, making it suitable for tasks requiring exact distance sensing.

Key Features

• Sensing Range: 35 to 300 mm, providing versatile application possibilities.

• Analog Output: 0–10 V output for continuous distance measurement.

• Compact Design: Short 40 mm housing allows for installation in confined spaces.

• Visible Indicators: Function indicators visible from all directions for easy status monitoring.

• Adjustable Measuring Window: Allows customization of the detection range to suit specific applications.

• Temperature Compensation: Ensures consistent measurement accuracy across varying temperatures.

• Robust Construction: Nickel-plated brass housing with IP67 rating, offering protection against dust and water ingress.

• Program Input: Facilitates easy configuration and adjustment of sensor settings.

Technical Specifications

• Model Number: UB300-18GM40-U-V1

• Sensing Range: 35 to 300 mm

• Adjustment Range: 50 to 300 mm

• Dead Band: 0 to 35 mm

• Standard Target Plate: 100 mm x 100 mm

• Transducer Frequency: Approximately 390 kHz

• Response Delay: Approximately 50 ms

• Operating Voltage (UB): 15 to 30 V DC, ripple ≤ 10%

• No-Load Supply Current (I0): ≤ 20 mA

• Input Type: 1 program input for setting evaluation limits

• Output Type: 1 analog output 0–10 V

• Resolution: 0.4 mm at maximum sensing range

• Deviation of Characteristic Curve: ±1% of full-scale value

• Repeat Accuracy: ±0.5% of full-scale value

• Load Impedance: > 1 kΩ

• Temperature Influence: ±1.5% of full-scale value

• Ambient Temperature Range: -25°C to +70°C (-13°F to +158°F)

• Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)

• Housing Material: Nickel-plated brass

• Transducer Material: Epoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT

• Degree of Protection: IP67

• Connection Type: M12 x 1 connector plug, 4-pin

• Dimensions: Length 40 mm, Diameter 18 mm

• Weight: Approximately 25 g

• Compliance:

  • Standards: EN IEC 60947-5-2:2020, EN 60947-5-7:2003

  • Approvals: cULus Listed, Class 2 Power Source; CE; UKCA

Applications

• Material Handling: Precise detection of object positions on conveyors for sorting and positioning.

• Packaging Industry: Accurate measurement of distances to ensure proper packaging alignment.

• Automotive Manufacturing: Detection of components during assembly processes to maintain quality control.

• Level Measurement: Monitoring fill levels in containers and tanks for process control.

• Robotics: Providing distance feedback for obstacle avoidance and positioning tasks.

Why Choose Pepperl+Fuchs UB300-18GM40-U-V1?

• High Precision: Offers accurate distance measurement with a resolution of 0.4 mm.

• Versatile Application: Suitable for a wide range of industrial applications requiring non-contact sensing.

• Durable Design: Robust housing and IP67 rating ensure reliable operation in harsh environments.

• Easy Integration: Compact M18 form factor with standard M12 connector facilitates straightforward installation.

• Trusted Brand: Pepperl+Fuchs is renowned for high-quality sensors and automation solutions, ensuring reliability and support.

Order Now

Available for immediate shipping worldwide.
