Overview

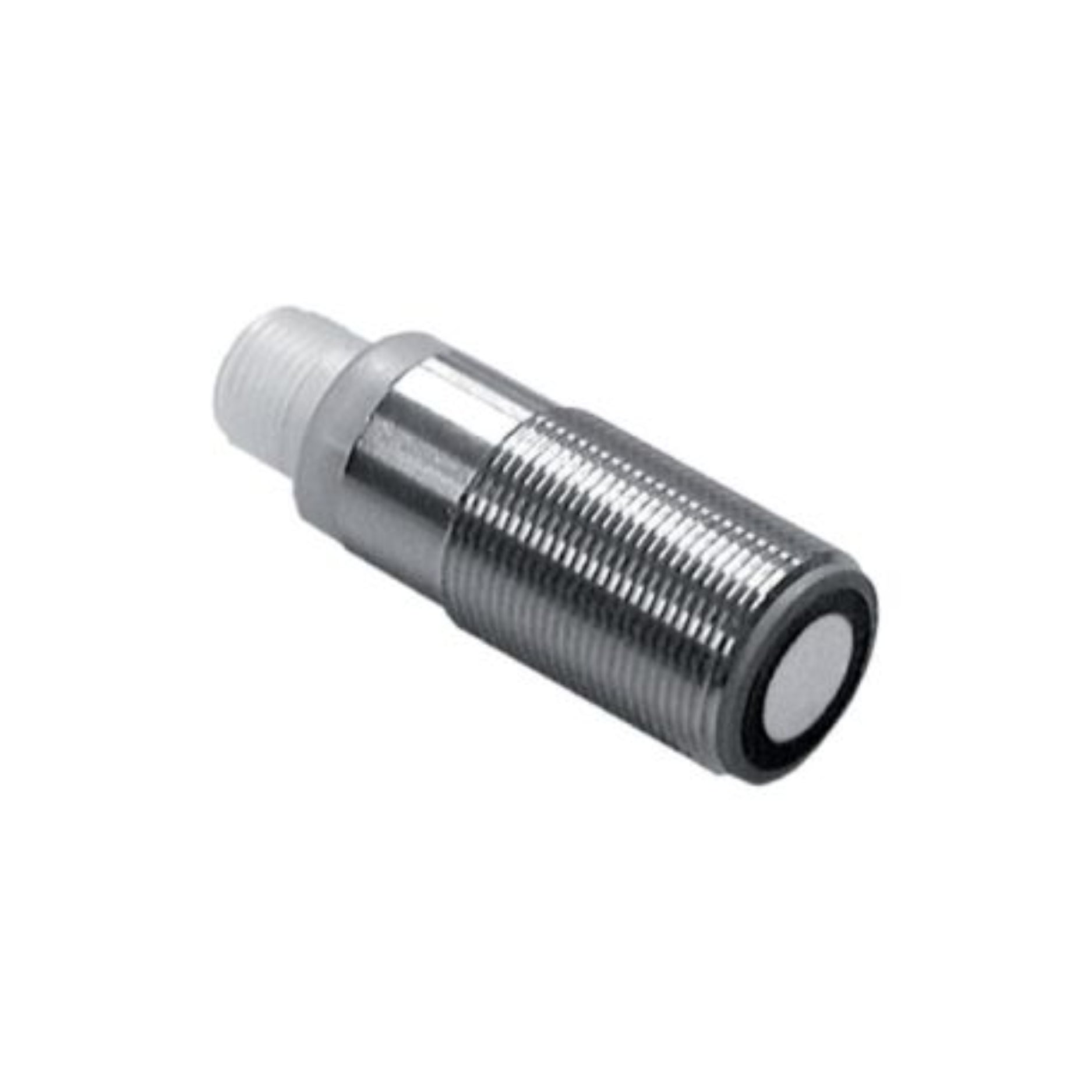

The Pepperl+Fuchs UB300-18GM40-I-V1 is a compact M18 ultrasonic sensor designed for accurate non-contact distance measurement in industrial environments. Featuring a sensing range of 35 to 300 mm, a 4–20 mA analog output, and a short 40 mm housing, this sensor ensures reliable performance in space-constrained applications. Its robust construction and IP67 protection rating make it suitable for various automation tasks requiring precise object detection and distance measurement.

Key Features

• Sensing Range: 35 to 300 mm, providing accurate detection of objects within this range.

• Analog Output: 4–20 mA current output, facilitating seamless integration into control systems.

• Compact Design: Short 40 mm housing allows for installation in limited spaces.

• Visible Indicators: Function indicators visible from all directions for easy status monitoring.

• Adjustable Measuring Window: Allows customization of the detection range to suit specific applications.

• Program Input: Enables easy configuration and parameterization of the sensor.

• Temperature Compensation: Ensures consistent performance across a wide temperature range.

• Robust Construction: Nickel-plated brass housing with IP67 rating, offering protection against dust and water ingress.

• Wide Operating Voltage Range: Functions effectively between 10 and 30 V DC.

Technical Specifications

• Model Number: UB300-18GM40-I-V1

• Sensing Range: 35 to 300 mm

• Adjustment Range: 50 to 300 mm

• Dead Band: 0 to 35 mm

• Standard Target Plate: 100 mm x 100 mm

• Transducer Frequency: Approximately 390 kHz

• Response Delay: Approximately 50 ms

• Indicators:

  • Green LED: Power on

  • Yellow LED: Solid when object is in evaluation range; flashing during program function when object is detected

  • Red LED: Solid when error occurs; flashing during program function when object is not detected

• Operating Voltage: 10 to 30 V DC, ripple ≤ 10%

• No-Load Supply Current: ≤ 20 mA

• Input Type: 1 program input

• Output Type: 1 analog output 4–20 mA, short-circuit/overload protected

• Resolution: 0.4 mm at maximum sensing range

• Deviation of Characteristic Curve: ±1% of full-scale value

• Repeat Accuracy: ±0.5% of full-scale value

• Load Impedance: 0 to 300 Ohm

• Temperature Influence: ±1.5% of full-scale value

• Ambient Temperature Range: -25°C to +70°C (-13°F to +158°F)

• Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)

• Housing Material: Nickel-plated brass

• Transducer Material: Epoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT

• Degree of Protection: IP67

• Connection Type: M12 x 1 connector plug, 4-pin

• Dimensions:

  • Length: 40 mm

  • Diameter: 18 mm

• Weight: Approximately 25 g

• Compliance:

  • Standards: EN IEC 60947-5-2:2020, IEC 60947-5-2:2019, EN 60947-5-7:2003, IEC 60947-5-7:2003

  • Approvals: cULus Listed, Class 2 Power Source; CCC approval not required for products rated ≤36 V

Applications

• Material Handling: Accurate detection and positioning of items on conveyors for sorting and processing.

• Packaging Industry: Ensures precise distance measurement for packaging operations, maintaining quality control.

• Automotive Manufacturing: Assists in assembly line operations by detecting and measuring components with high precision.

• Food and Beverage Industry: Suitable for applications requiring non-contact measurement to maintain hygiene standards.

• General Automation: Ideal for tasks requiring precise distance measurement and object detection in various industrial settings.

Why Choose Pepperl+Fuchs UB300-18GM40-I-V1?

• Precise Distance Measurement: Offers accurate and reliable non-contact measurement within a 35–300 mm range.

• Compact and Versatile: Short 40 mm housing and M18 threaded design allow for easy installation in space-constrained applications.

• Robust and Durable: Nickel-plated brass housing with IP67 protection ensures longevity in harsh industrial environments.

• Easy Integration: 4–20 mA analog output and visible function indicators simplify system integration and status monitoring.

• Trusted Brand: Pepperl+Fuchs is renowned for high-quality sensors and automation solutions, ensuring reliability and support.
