Pepperl+Fuchs UB2000-F42S-I-V15

Pepperl+Fuchs UB2000-F42S-I-V15 | 2 m Ultrasonic Distance Sensor with Analog Output for Industrial Automation

Overview

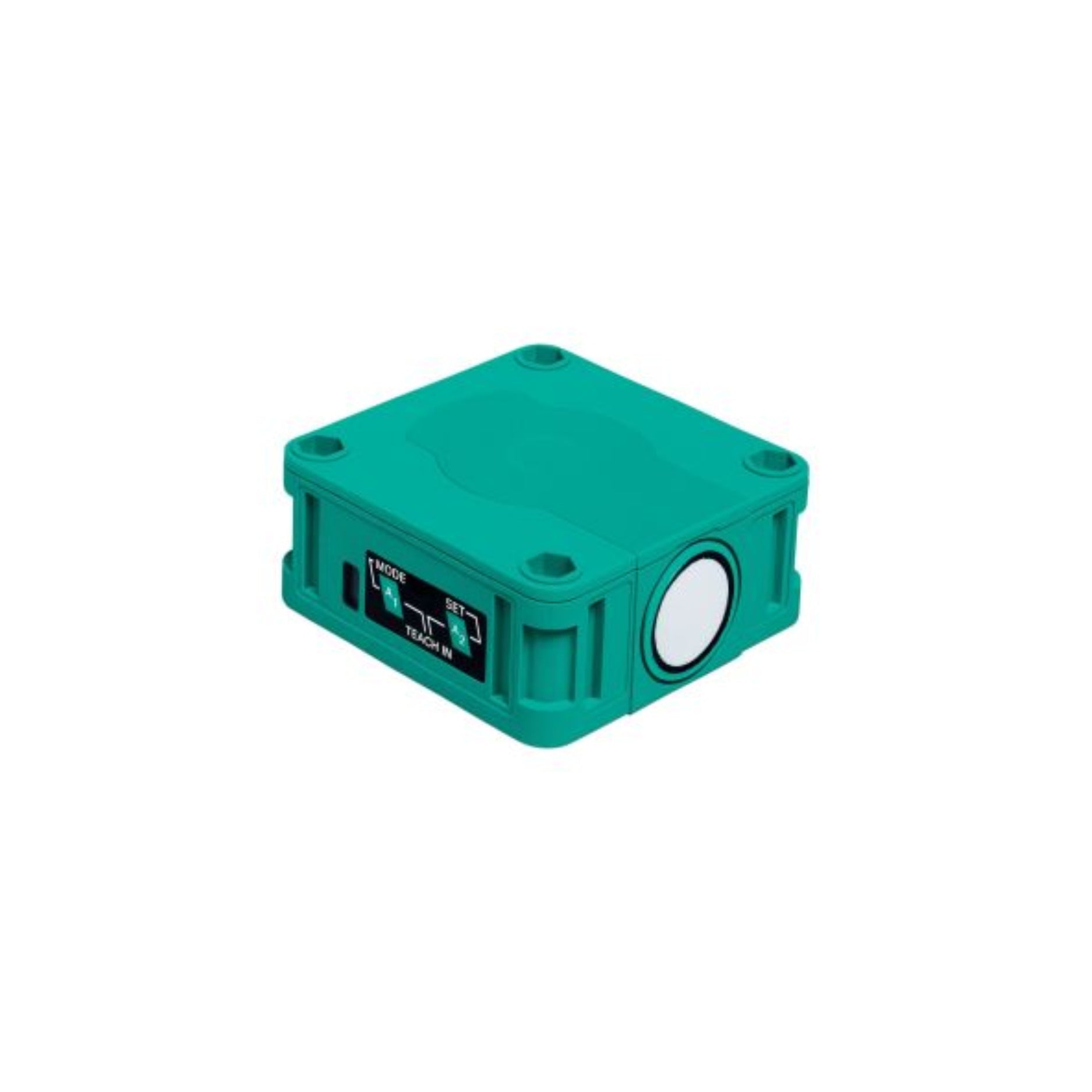

The UB2000-F42S-I-V15 from Pepperl+Fuchs is a high-performance ultrasonic sensor with a measuring range up to 2000 mm and an analog 4–20 mA output. Designed for continuous distance measurement, it features a compact F42 rectangular housing, IP67 environmental protection, and a M12 connector, making it ideal for liquid level monitoring and object positioning in harsh industrial environments.

Key Features

• 2 m Sensing Range – Long-range, non-contact object or level measurement

• Analog Output (4–20 mA) – Continuous signal for real-time distance feedback

• Ultrasonic Technology – Accurate detection regardless of color or surface

• M12 Connector – Quick and secure plug-in interface

• Compact F42 Housing – Easy to install in control cabinets or tight spaces

• IP67 Protection – Dust- and waterproof for rugged industrial applications

Technical Specifications

• Model: UB2000-F42S-I-V15

• Part Number: 133997

• Sensor Type: Ultrasonic distance sensor

• Measuring Range: 80 mm to 2000 mm

• Output Type: Analog 4–20 mA

• Connection: M12 connector, 4-pin

• Housing Type: Rectangular F42 series

• Supply Voltage: 10–30 V DC

• Response Time: ≤ 160 ms

• Housing Material: Plastic (UL-approved)

• Protection Rating: IP67

• Operating Temperature: -25°C to +70°C

Applications

• Liquid Level Monitoring

• Bin and Silo Measurement

• Positioning and Profiling Tasks

• Conveyor and Material Handling

• Tank Fill/Empty Detection

Why Choose UB2000-F42S-I-V15?

• Precise analog output for dynamic measurement

• Compact, rugged housing for tough environments

• Perfect for both solid and liquid targets

Order Now

Ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
