Pepperl+Fuchs UB2000-F42-E6-V15 | Ultrasonic Sensor | 60–2000 mm Range

Pepperl+Fuchs UB2000-F42-E6-V15 | High-Precision Ultrasonic Sensor with Adjustable Sound Beam and TEACH-IN Functionality

Overview

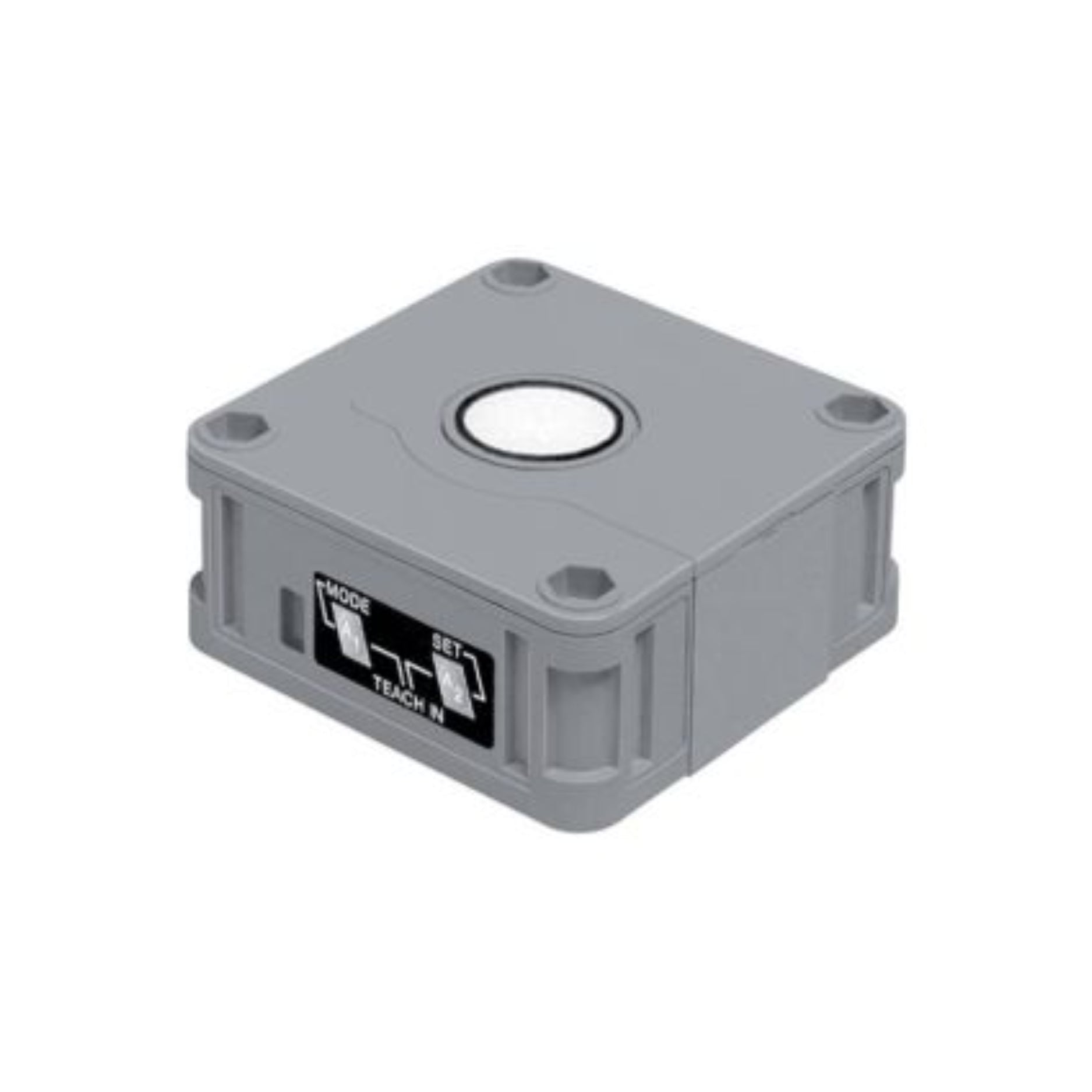

The Pepperl+Fuchs UB2000-F42-E6-V15 is a versatile ultrasonic sensor designed for accurate object detection within a range of 60 to 2000 mm. Equipped with two independent PNP switch outputs, each selectable as normally open (NO) or normally closed (NC), this sensor is ideal for applications requiring precise and reliable detection. The TEACH-IN functionality and adjustable sound beam divergence enhance its adaptability across various industrial environments.

Key Features

• Sensing Range: 60 to 2000 mm

• Adjustment Range: 90 to 2000 mm

• Dead Band: 0 to 60 mm

• Outputs: Two independent PNP switch outputs, selectable NO/NC

• TEACH-IN Functionality: Simplifies setup and calibration

• Adjustable Sound Beam Divergence: Allows interference suppression in close range

• Temperature Compensation: Ensures consistent performance across varying temperatures

• Synchronization Options: Supports bi-directional synchronization for multiple sensors

• Indicators:

  • Green LED: Power status

  • Yellow LEDs: Switching state of outputs

  • Red LED: Fault indication

• Operating Voltage: 10 to 30 V DC

• No-Load Supply Current: ≤ 50 mA

• Response Delay: Approximately 150 ms

• Switching Frequency: Up to 2.7 Hz

• Protection Rating: IP54

• Operating Temperature Range: -25°C to +70°C (-13°F to +158°F)

• Housing Material: ABS with PBT transducer cover

• Connection: 5-pin M12 connector

Technical Specifications

• Model Number: UB2000-F42-E6-V15

• Series: F42

• Transducer Frequency: Approximately 175 kHz

• Repeat Accuracy: ≤ 0.5% of switching point

• Range Hysteresis: 1% of the set operating distance

• Voltage Drop: ≤ 2.5 V

• Rated Operating Current: 200 mA, short-circuit/overload protected

• Synchronization Input:

  • 0 Level: -UB to +1 V

  • 1 Level: +4 V to +UB

  • Input Impedance: > 12 kΩ

  • Synchronization Pulse: ≥ 100 µs

  • Synchronization Interpulse Period: ≥ 2 ms

• Compliance: EN IEC 60947-5-2:2020, IEC 60947-5-2:2019

• Approvals:

  • UL: cULus Listed, Class 2 Power Source

  • CCC: Not required for products rated ≤36 V

Applications

• Material Handling: Object detection on conveyors and automated systems

• Packaging: Presence detection and positioning in packaging lines

• Automotive: Component detection in assembly processes

• Warehouse Automation: Level detection in storage bins and silos

Why Choose Pepperl+Fuchs UB2000-F42-E6-V15?

• Dual Independent Outputs: Provides flexibility with two PNP outputs, each configurable as NO or NC

• User-Friendly TEACH-IN: Simplifies sensor setup and calibration

• Adjustable Sound Beam: Enables customization of detection area to minimize interference

• Robust Construction: Durable ABS housing with IP54 rating for reliable operation in industrial environments

• Comprehensive Indicators: Clear LED indicators for power, output states, and fault conditions
