Overview

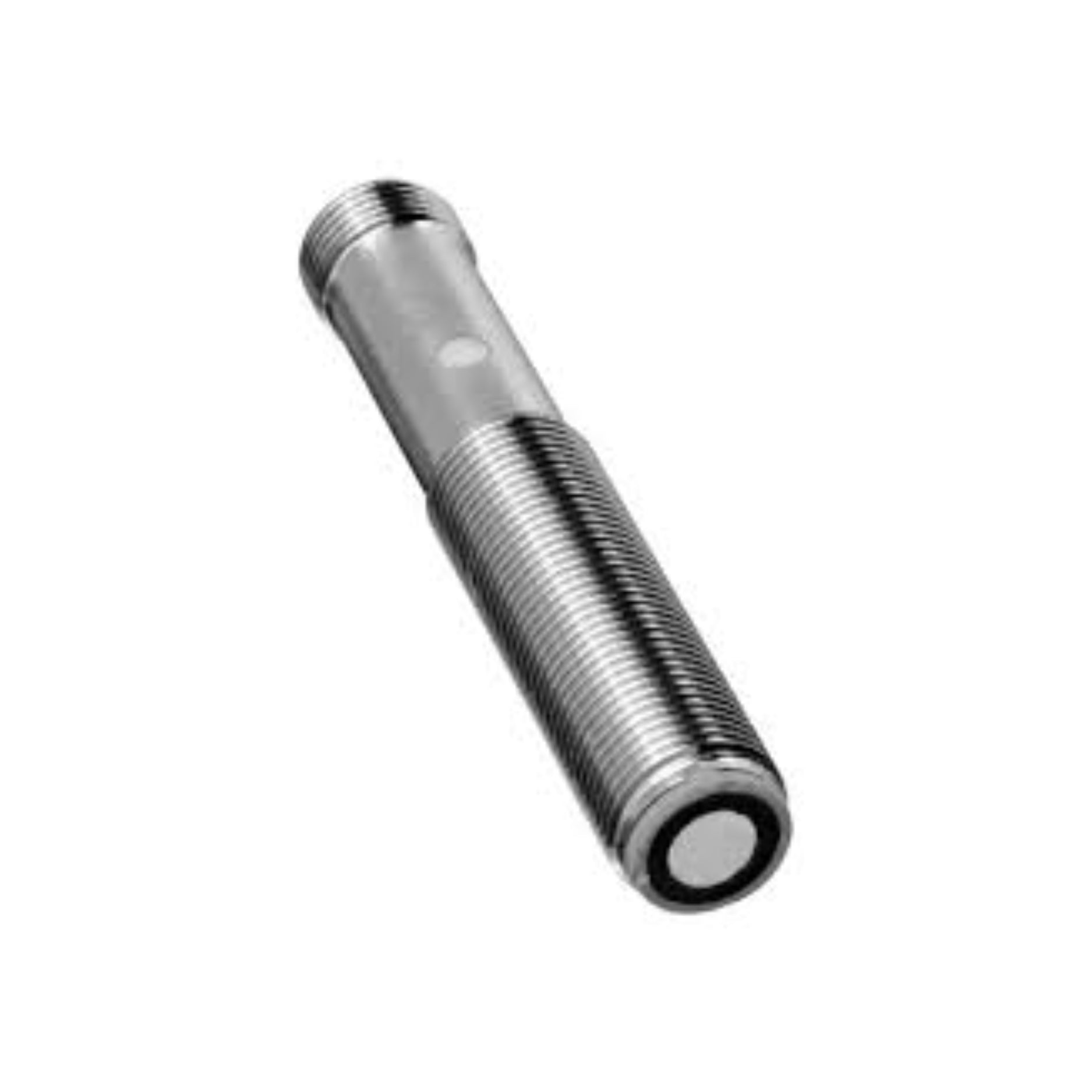

The Pepperl+Fuchs UB200-12GM-I-V1 is a high-performance ultrasonic sensor designed for precise distance measurement within a range of 15 to 200 mm. Housed in a compact M12 cylindrical form factor, this sensor delivers a 4–20 mA analog output, making it suitable for applications requiring accurate and continuous level or distance monitoring in confined spaces.

Key Features

• Sensing Range: 15 to 200 mm, accommodating various close-range measurement needs.

• Analog Output: Provides a 4–20 mA current output proportional to the detected distance.

• Compact Design: M12 threaded housing (12 mm diameter) allows for easy integration into space-constrained applications.

• Fast Response Time: Approximately 30 ms response delay ensures timely measurements.

• Temperature Compensation: Maintains measurement accuracy across varying environmental temperatures.

• LED Indicators: Equipped with yellow and red LEDs for clear status indication and diagnostics.

• Robust Construction: Nickel-plated brass housing with IP67 rating for reliable operation in demanding environments.

Technical Specifications

• Model Number: UB200-12GM-I-V1

• Sensing Range: 15 to 200 mm

• Adjustment Range: 20 to 200 mm

• Dead Band: 0 to 15 mm

• Standard Target Plate: 100 mm x 100 mm

• Transducer Frequency: Approximately 400 kHz

• Response Delay: Approximately 30 ms

• Operating Voltage: 10 to 30 V DC, with ≤10% ripple

• No-Load Supply Current: ≤30 mA

• Analog Output: 4–20 mA

• Resolution: 0.17 mm

• Deviation of Characteristic Curve: ±1% of full-scale value

• Repeat Accuracy: ±0.5% of full-scale value

• Load Impedance: 0 to 200 Ω

• Temperature Influence: ±1.5% of full-scale value

• Ambient Temperature Range: -25°C to 70°C (-13°F to 158°F)

• Storage Temperature Range: -40°C to 85°C (-40°F to 185°F)

• Connection Type: M12 x 1, 4-pin connector

• Housing Material: Nickel-plated brass

• Degree of Protection: IP67

• Dimensions: 12 mm diameter, 70 mm length

• Weight: Approximately 25 g

Applications

• Level Measurement: Accurate monitoring of liquid or solid levels in small tanks or containers.

• Distance Sensing: Precise measurement of object proximity in automation systems.

• Positioning Tasks: Determining the exact position of components in assembly lines.

• Compact Machinery: Ideal for integration into equipment with limited installation space.

Why Choose Pepperl+Fuchs UB200-12GM-I-V1?

• High Precision: Delivers accurate measurements with a fine resolution of 0.17 mm.

• Space-Efficient: M12 housing facilitates installation in tight spaces without compromising performance.

• Reliable Performance: Temperature compensation and robust construction ensure consistent operation in varying conditions.

• User-Friendly Indicators: LED status indicators provide immediate feedback for operational status and diagnostics.
