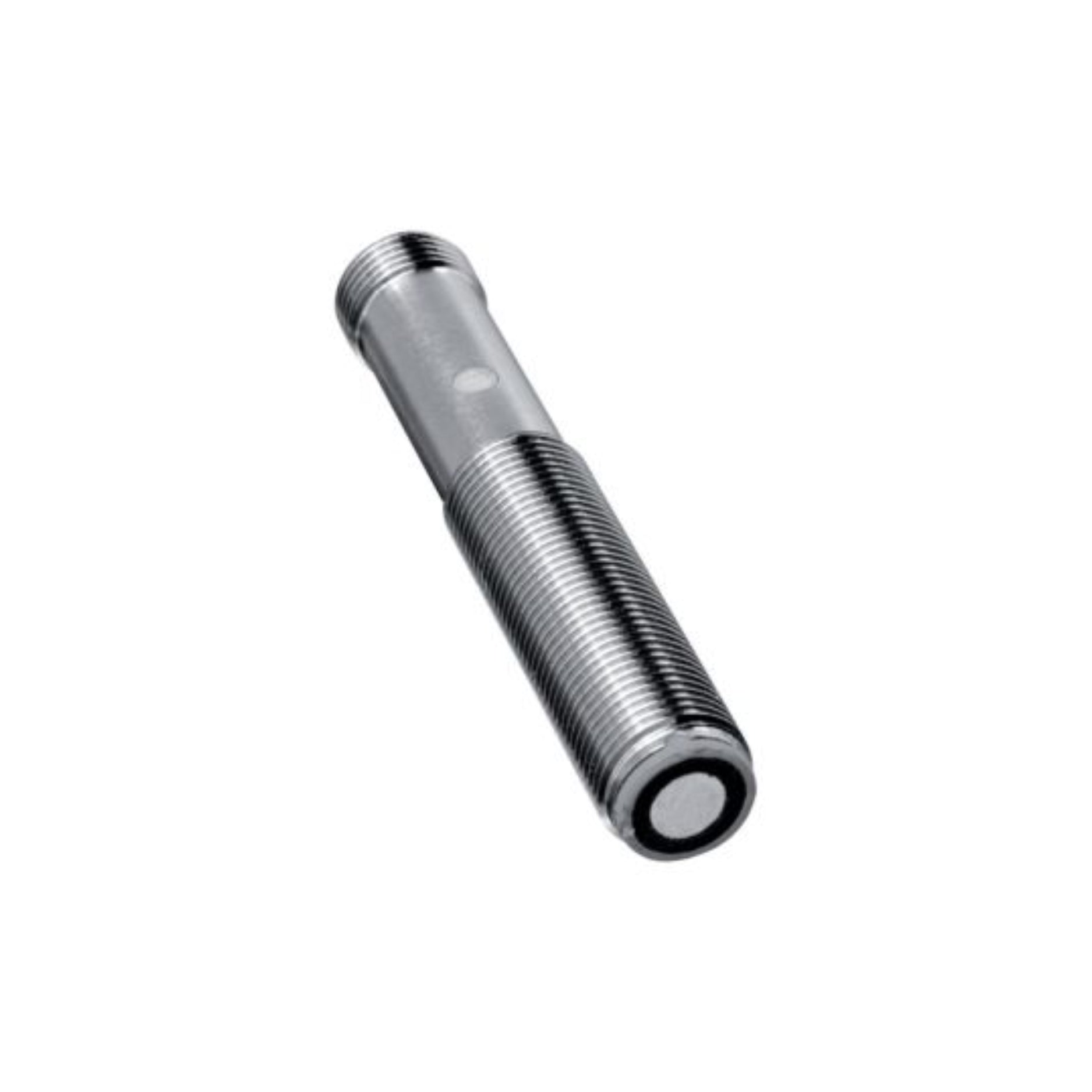

Pepperl+Fuchs UB200-12GM-E5-V1

Pepperl+Fuchs UB200-12GM-E5-V1 | Compact Ultrasonic Sensor for Precise Object and Distance Detection

Overview

The UB200-12GM-E5-V1 from Pepperl+Fuchs is a compact ultrasonic proximity sensor designed for non-contact detection of objects at distances up to 200 mm. With an NPN normally open output, M12 threaded housing, M12 connector, and IP67 protection, it is well-suited for demanding industrial automation tasks where accuracy and reliability are essential.

Key Features

• 200 mm Sensing Range – Reliable detection of objects regardless of color, material, or surface

• Ultrasonic Technology – Ideal for transparent, shiny, or irregular surfaces

• NPN Output (Normally Open) – Direct interface with digital inputs

• M12 Connector – Fast and easy installation

• Compact M12 Housing – Perfect for space-limited automation systems

• IP67 Protection – Withstands dust, water, and industrial environments

Technical Specifications

• Model: UB200-12GM-E5-V1

• Part Number: 182234

• Sensor Type: Ultrasonic proximity sensor

• Sensing Range: 35 mm to 200 mm

• Output Type: NPN, Normally Open (NO)

• Connection: M12 connector, 4-pin

• Housing Type: Cylindrical M12 x 1 threaded

• Supply Voltage: 10–30 V DC

• Switching Frequency: ≤ 10 Hz

• Housing Material: Nickel-plated brass

• Protection Rating: IP67

• Operating Temperature: -25°C to +70°C

Applications

• Distance Measurement in Compact Machinery

• Level Detection in Small Tanks

• Object Presence Sensing on Conveyors

• Transparent or Glossy Object Detection

• Non-Contact Sensing in Confined Spaces

Why Choose UB200-12GM-E5-V1?

• Highly accurate in diverse material conditions

• Compact and rugged design for tight industrial spaces

• Easy wiring and setup with standard M12 connector
