Pepperl+Fuchs UB1000-18GM75-E5-V15

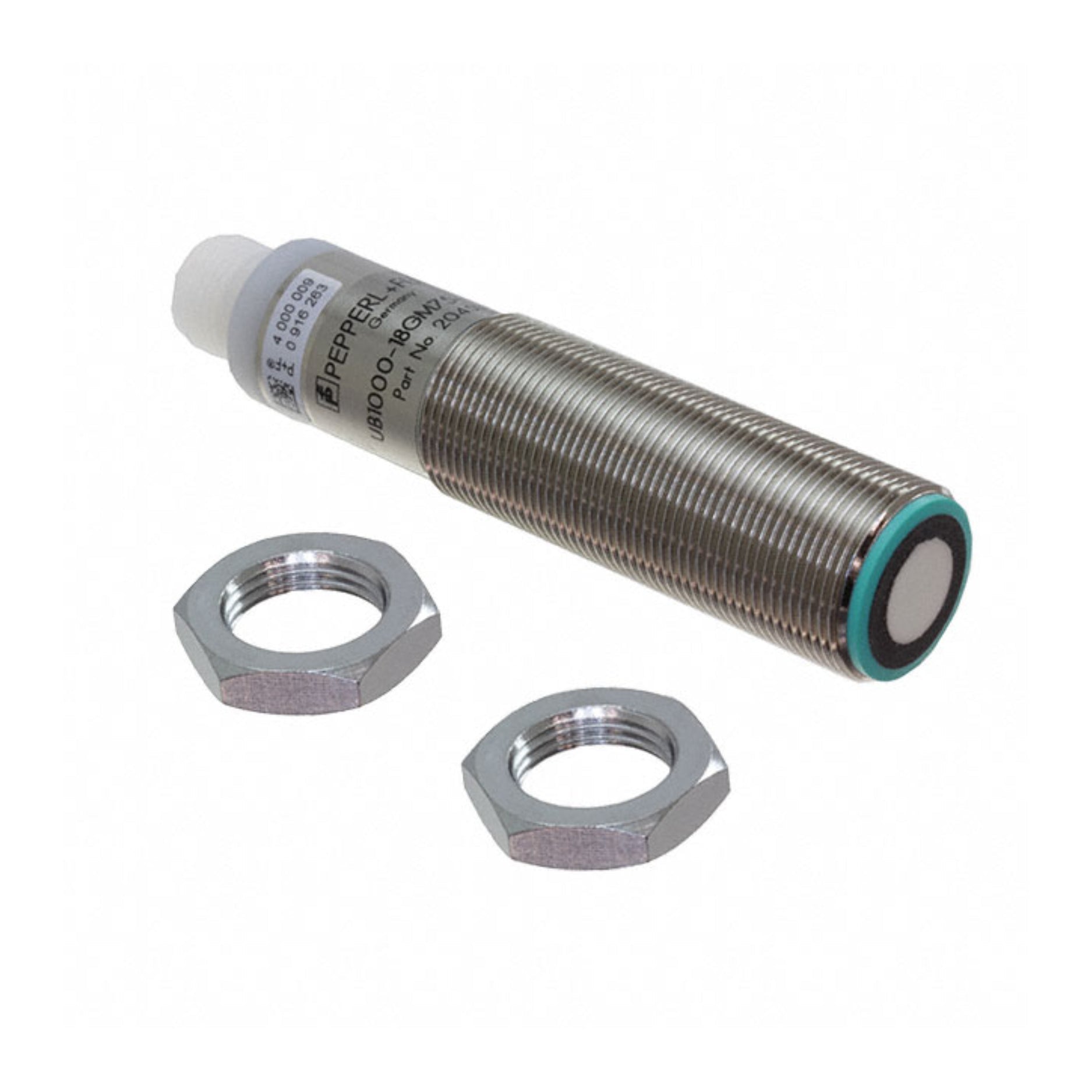

Pepperl+Fuchs UB1000-18GM75-E5-V15 – High-Performance Ultrasonic Sensor

Overview

The UB1000-18GM75-E5-V15 from Pepperl+Fuchs is a rugged ultrasonic sensor engineered for non-contact distance measurement up to 1000mm. Ideal for harsh industrial environments, it provides reliable performance on challenging surfaces like transparent films, shiny metals, or dark objects.

Key Features

• Measuring Range: 70 mm to 1000 mm

• Output Type: PNP, NO/NC programmable

• Connection Type: 5-pin M12 connector

• Response Time: ~125 ms

• Switching Frequency: 3 Hz

• Enclosure: Nickel-plated brass housing

• Protection Rating: IP67

• Mounting Style: M18 threaded barrel

• LED Indicators: Yellow for switching state, Red for error or teach-in status

• Adjustable Sound Beam: Narrow or wide beam via software configuration

• Synchronization and Deactivation Functions

Technical Specifications

• Supply Voltage: 10 to 30 V DC

• No-load Current: ≤ 50 mA

• Operating Temperature: -25°C to +70°C

• Transducer Frequency: ~255 kHz

• Short-Circuit and Reverse Polarity Protection: Yes

• Material: Housing made of nickel-plated brass, transducer surface made of epoxy resin

Applications

• Level Monitoring: Accurate fill detection in tanks and containers

• Packaging Industry: Detect transparent films and irregular shapes

• Automated Warehousing: Object detection on conveyor belts

• Material Handling: Distance sensing for robotic systems and pick-and-place operations

Why Choose the UB1000-18GM75-E5-V15?

• Non-contact detection unaffected by material color or texture

• High reliability in dusty, wet, or reflective environments

• Easy setup with teach-in function and clear LED indicators

• Industry-standard M12 connectivity for easy integration

Order Now

Optimize your automation system with the UB1000-18GM75-E5-V15. Fast delivery and expert support available.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
