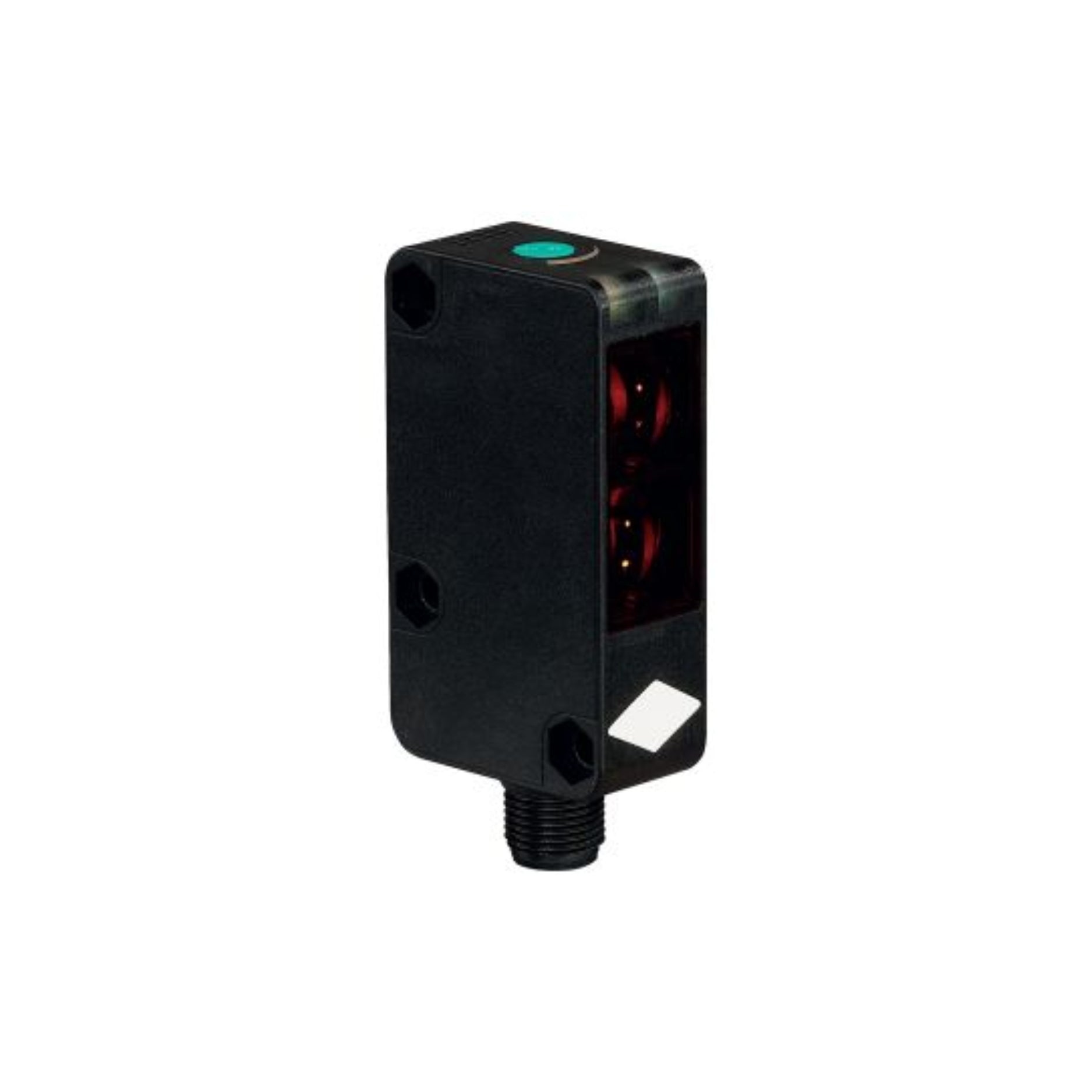

Pepperl+Fuchs RL31-8-2500-IR/73c/136

Pepperl+Fuchs RL31-8-2500-IR/73c/136 | High-Performance Retroreflective Sensor with Infrared Light and 2.5 m Range

Overview

The RL31-8-2500-IR/73c/136 from Pepperl+Fuchs is a robust retroreflective photoelectric sensor that delivers accurate and long-distance detection up to 2.5 meters, using infrared light. Designed for reliable operation in challenging industrial environments, this model includes a PNP NO/NC dual output, M12 connector, and an IP67-rated housing.

Key Features

• 2.5 m Sensing Range – Extended detection with retroreflective targets

• Infrared LED – Stable performance with less interference from ambient light

• PNP Output (NO + NC) – Flexible logic integration with PLCs

• M12 Connector (4-pin) – Quick and secure electrical connection

• Compact RL31 Housing – Durable and space-efficient design

• IP67 Protection – Built to endure industrial conditions

Technical Specifications

• Model: RL31-8-2500-IR/73c/136

• Part Number: 207544

• Sensor Type: Retroreflective photoelectric sensor

• Sensing Range: 0.05 m to 2.5 m (with reflector)

• Light Source: Infrared LED

• Output Type: PNP, Normally Open + Normally Closed (NO/NC)

• Connection: M12 connector, 4-pin

• Voltage Supply: 10–30 V DC

• Switching Frequency: ≤ 250 Hz

• Housing Material: Plastic (rectangular RL31 series)

• Protection Rating: IP67

• Operating Temperature: -25°C to +55°C

Applications

• Conveyor Line Detection

• Packaging Machinery

• Automated Warehousing

• Pallet and Object Positioning

• Reflective Sensing in Harsh Environments

Why Choose RL31-8-2500-IR/73c/136?

• Long-range detection with compact sensor body

• Infrared LED ensures consistent performance in variable lighting

• Dual output provides greater control system flexibility

Order Now

Now shipping worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
