Pepperl+Fuchs RL28-8-H-700-RT/47/105

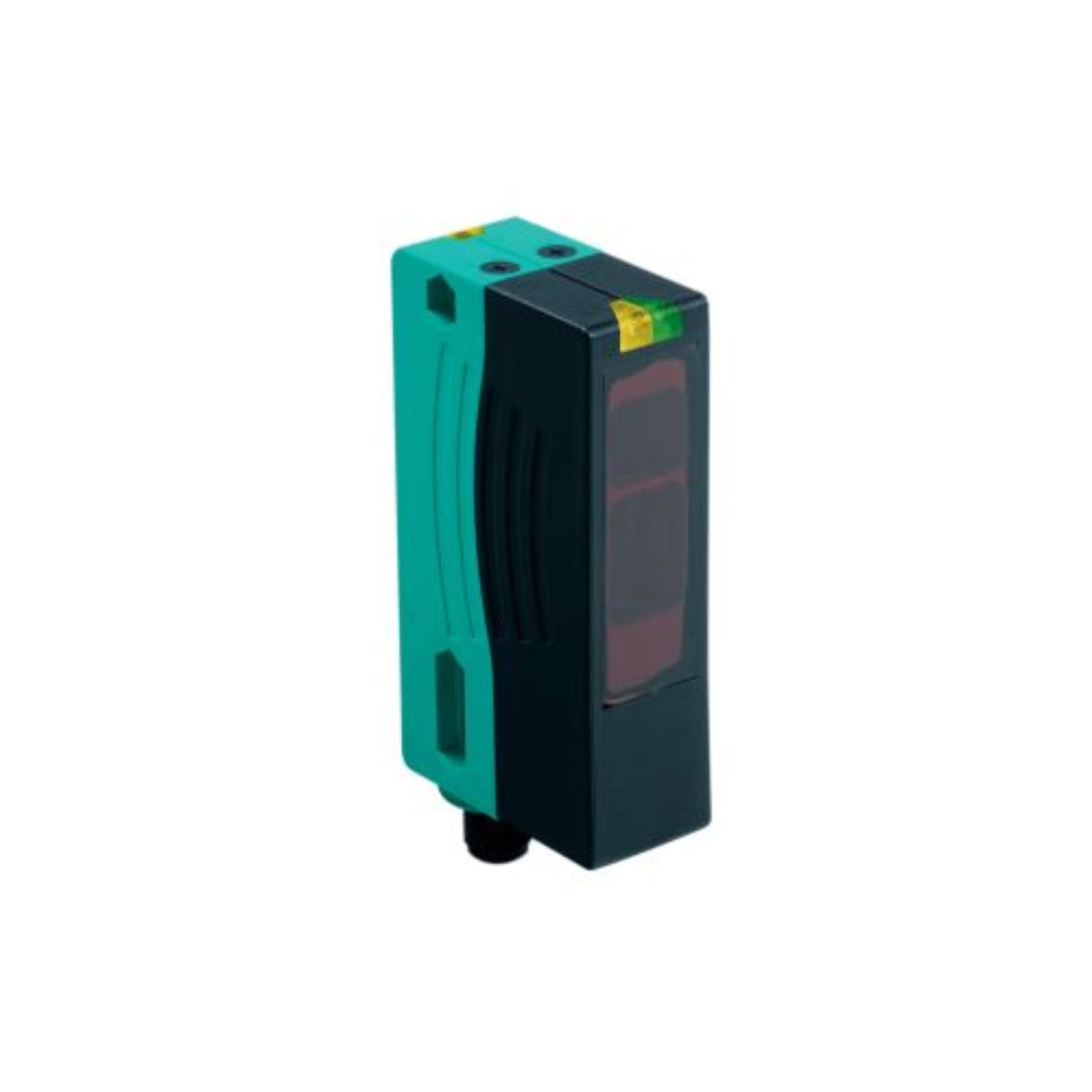

Pepperl+Fuchs RL28-8-H-700-RT/47/105 | Compact Retroreflective Photoelectric Sensor with 700 mm Detection Range

Overview

The RL28-8-H-700-RT/47/105 from Pepperl+Fuchs is a retroreflective photoelectric sensor offering 700 mm sensing range using visible red light. With PNP NO/NC dual output, M12 quick-connect, and IP67 housing, it is designed for reliable object detection in industrial automation settings.

Key Features

• 700 mm Detection Range – Optimized for use with reflectors

• Retroreflective Mode – Accurate detection with or without color differentiation

• Visible Red Light – Easy alignment during installation

• PNP Output (NO + NC) – Dual logic options for flexible control setups

• M12 Connector – Quick-connect installation and replacement

• IP67 Protection – Built to withstand harsh environments

Technical Specifications

• Model: RL28-8-H-700-RT/47/105

• Part Number: 419618

• Sensor Type: Retroreflective photoelectric sensor

• Light Source: Red light LED

• Sensing Range: Up to 700 mm (with reflector)

• Output Type: PNP, Normally Open + Normally Closed (NO/NC)

• Connection: M12 connector, 4-pin

• Supply Voltage: 10–30 V DC

• Switching Frequency: ≤ 500 Hz

• Housing Type: Compact rectangular RL28 series

• Material: Plastic

• Protection Rating: IP67

• Operating Temperature: -25°C to +55°C

Applications

• Packaging Machinery

• Conveyor Systems

• Automated Assembly Lines

• Object Detection Through Reflectors

• Compact Industrial Equipment

Why Choose RL28-8-H-700-RT/47/105?

• Dual output logic provides greater flexibility

• Precise detection and easy alignment with visible LED

• Compact, rugged design for space-constrained installations
