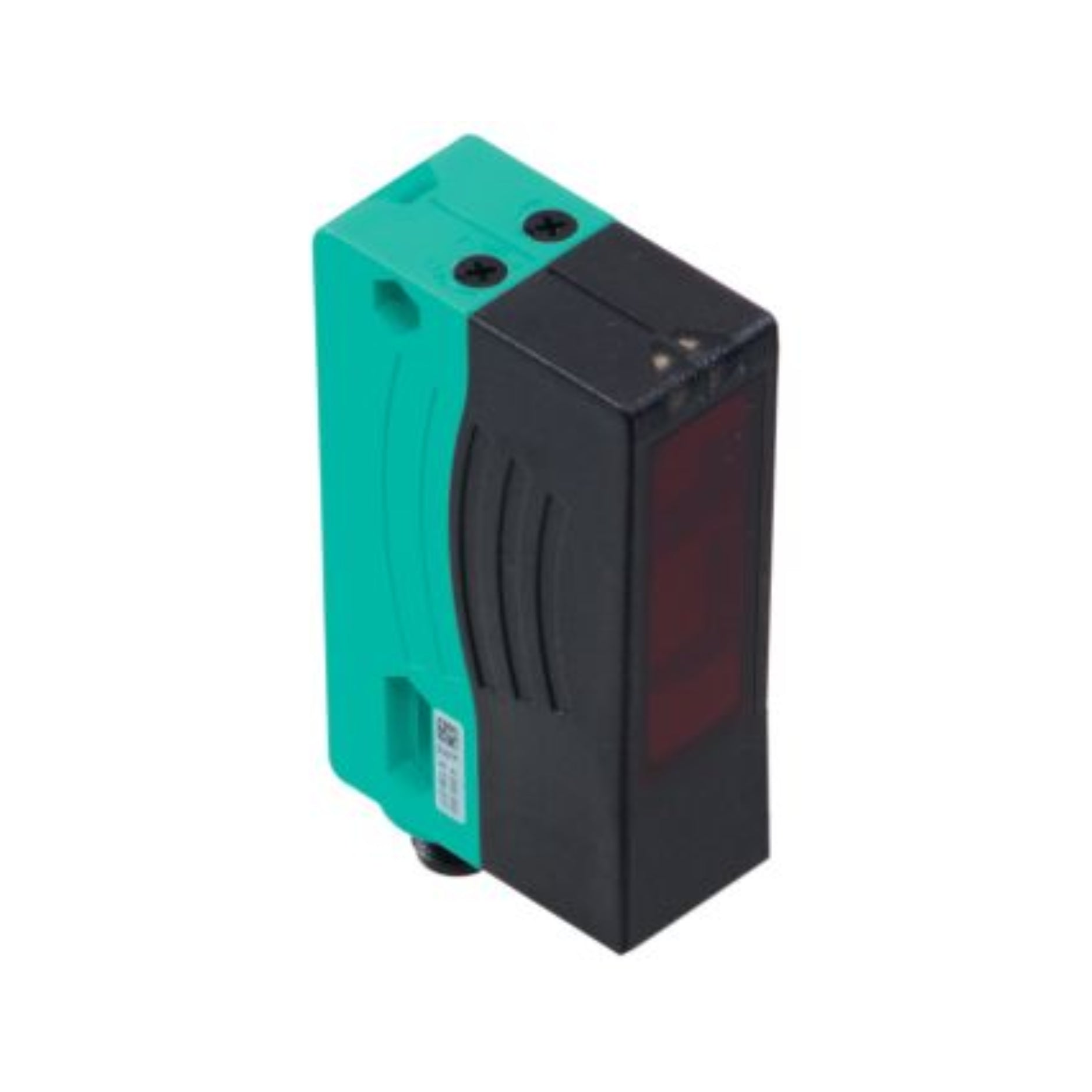

Pepperl+Fuchs RL28-8-H-1500-LAS/47/105 | Retro Sensor | 15 m | PNP

Pepperl+Fuchs RL28-8-H-1500-LAS/47/105 | Retroreflective Sensor, 15 m, Red Light, PNP, IP67

Overview:

The Pepperl+Fuchs RL28-8-H-1500-LAS/47/105 (Part No. 180708) is a retroreflective photoelectric sensor designed for long-distance object detection up to 15 meters with a reflector. Featuring visible red light for easy alignment, PNP NO/NC output, and a compact housing, it’s ideal for use in material handling, packaging, and automation systems.

Key Features:

• Sensing Range: Up to 15 meters (with reflector)

• Sensing Principle: Retroreflective with polarization filter

• Light Source: Red light LED (visible)

• Output Type: PNP, switchable NO/NC

• Supply Voltage: 10–30 VDC

• Connection: M12, 4-pin connector

• Housing Style: Compact rectangular (28 series)

• Protection Rating: IP67

• Switching Frequency: Up to 250 Hz

• Alignment Aid: Bright, visible laser spot

Technical Specifications:

• Model Number: RL28-8-H-1500-LAS/47/105

• Part Number: 180708

• Response Time: ≤ 2 ms

• Repeat Accuracy: ≤ 0.5 mm

• Voltage Drop: ≤ 2.5 V

• Load Current: Max. 100 mA

• Material – Housing: Plastic

• Ambient Temperature Range: -25°C to +60°C

• Mounting: Through-hole or bracket mount

• Weight: Approx. 70 g

Applications:

• Conveyor Systems: Detect object presence with reflectors

• Packaging Lines: Monitor box or bag movement

• Automated Storage Systems: Long-range part detection

• OEM Machinery: Compact sensor integration

• Material Handling: Accurate object sensing in dusty environments

Why Choose the RL28-8-H-1500-LAS/47/105?

✅ Long 15 m detection range with reflector
✅ Red light laser spot for easy alignment
✅ Switchable NO/NC output for flexible logic
✅ IP67 protection for industrial reliability
✅ Compact and lightweight for space-constrained applications

Order Now:

Available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
