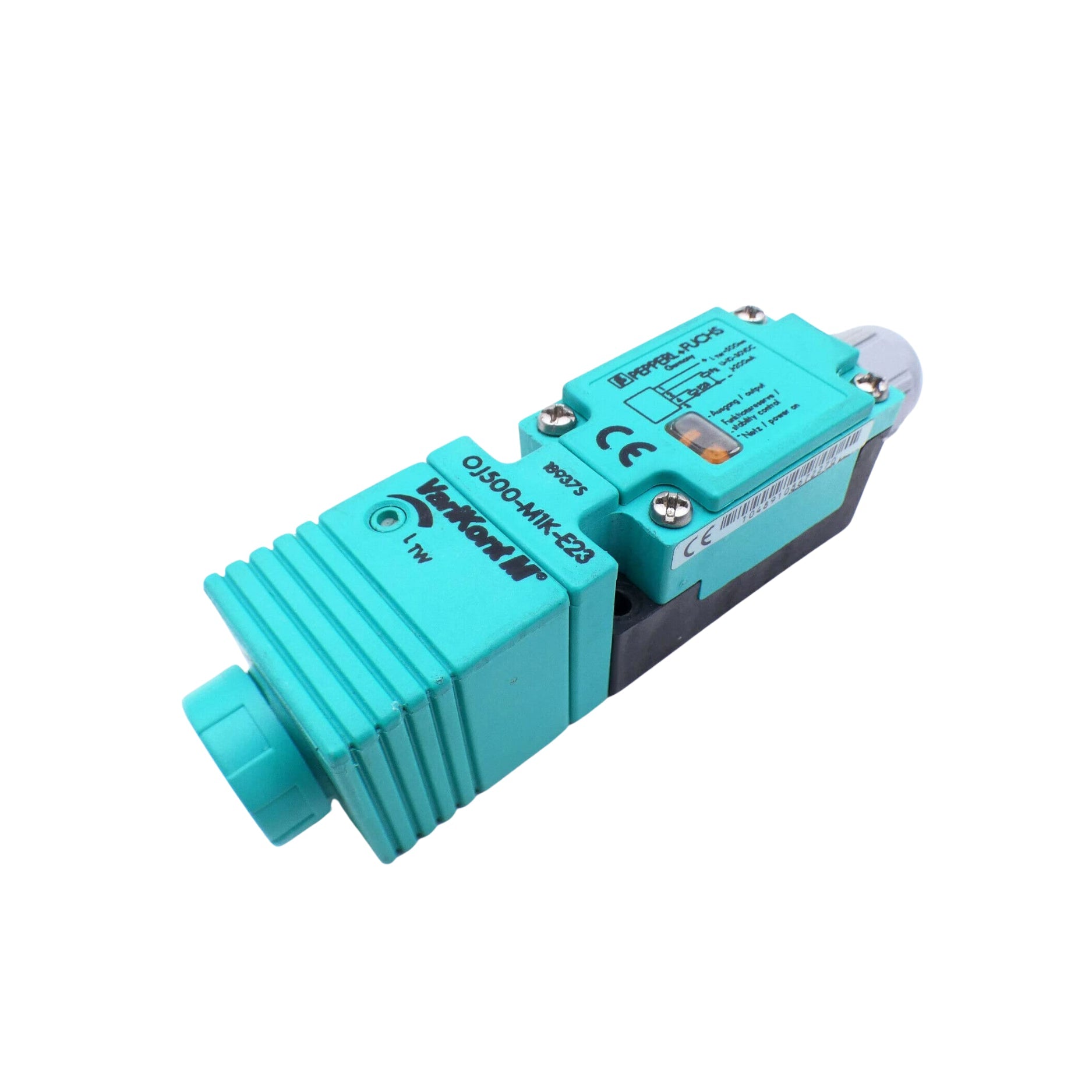

Pepperl+Fuchs OJ500-M1K-E23 – Fiber Optic Sensor, 10-30V DC, PNP Output, IP67

Pepperl+Fuchs OJ500-M1K-E23 – Versatile Fiber Optic Sensor for Industrial Applications

Overview

The Pepperl+Fuchs OJ500-M1K-E23 is a fiber optic sensor designed for use with glass fiber optics, offering flexibility and precision in detecting objects in challenging environments. Its adjustable sensor head and parameterizable light-on/dark-on settings make it suitable for various industrial applications.

Key Features

• Sensor Range: Up to 100 mm with LMR 18-3,2-1,0-K4 fiber optics

• Detection Range: Up to 600 mm with LME 18-2,3-0,5-K3 fiber optics

• Light Source: Modulated infrared LED

• Ambient Light Limit: 40,000 Lux

• Adjustable Sensor Head: Allows for flexible installation and alignment

• Light-on/Dark-on Parameterizable: Easily switch between light-on and dark-on modes

• Switching Frequency: Up to 1.5 kHz, switchable to 200 Hz

• Operating Voltage: 10 to 30 V DC

• Output Type: PNP, short-circuit and reverse polarity protected

• Protection Rating: IP67

• Operating Temperature Range: -25°C to 70°C (-13°F to 158°F)

• Housing Material: PBT with scratch-resistant mineral glass lens

Technical Specifications

• Model: OJ500-M1K-E23

• Part Number: 018937

• Control Elements: Programming switch for light-on/dark-on changeover, operating frequency selection, switching frequency selection, pulse extension, and operating reserve dynamic/static

• Indicators: Green LED for operation, yellow LED for switching state, red LED (flashing) for operating reserve

• Connection: M16 terminal compartment, suitable for core cross-section up to 2.5 mm²

• Dimensions: 30 mm (Height) x 30 mm (Width) x 102 mm (Depth)

• Mass: 100 g

Applications

• Automation Systems: Accurate detection in assembly lines

• Material Handling: Object detection on conveyors

• Packaging Machines: Presence detection in packaging processes

• Robotics: Position sensing in robotic applications

Why Choose the Pepperl+Fuchs OJ500-M1K-E23?

• Versatile Detection: Compatible with various glass fiber optics for different sensing ranges

• Robust Design: IP67-rated housing ensures reliable operation in harsh environments

• Flexible Configuration: Adjustable sensor head and parameterizable settings for tailored applications

• High-Speed Performance: Fast response time with high switching frequency

Order Now

The Pepperl+Fuchs OJ500-M1K-E23 fiber optic sensor is available for prompt shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
