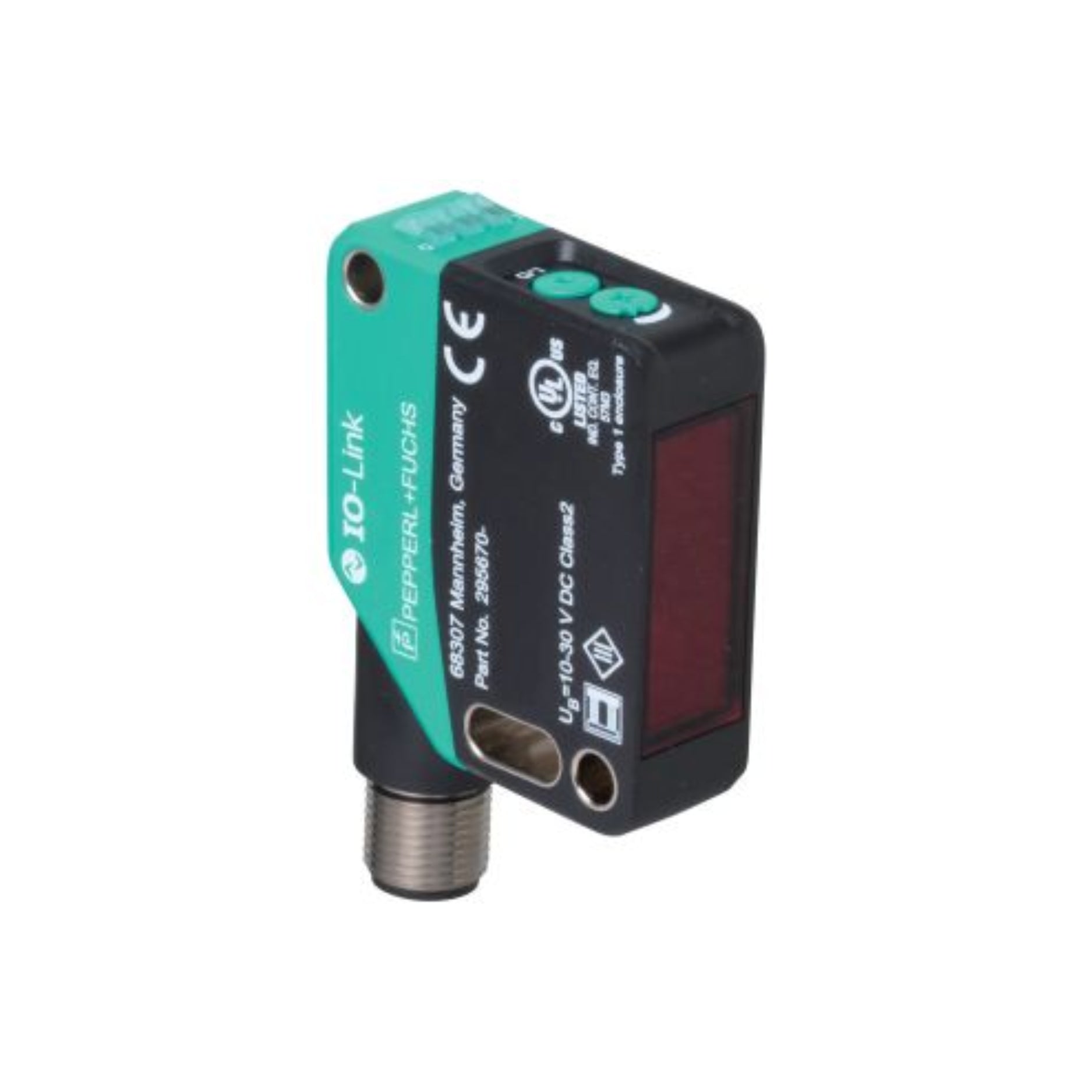

Pepperl+Fuchs OBT650-R200-2EP-IO-V1 | 650 mm Diffuse Sensor | IO-Link

Pepperl+Fuchs OBT650-R200-2EP-IO-V1 | Photoelectric Sensor, Diffuse Mode, IO-Link, IP67/IP69K

Overview:

The Pepperl+Fuchs OBT650-R200-2EP-IO-V1 (Part No. 295670-100112) is a high-performance diffuse mode photoelectric sensor from the R200 series, offering a sensing range up to 650 mm. Equipped with IO-Link, it enables advanced diagnostics, remote configuration, and real-time communication. With its robust IP67/IP69K housing, this sensor is designed for demanding industrial applications, including food & beverage, packaging, and automation.

Key Features:

• Sensing Range: 10–650 mm (diffuse reflection)

• Output Type: 2 x PNP (configurable NO/NC)

• Interface: IO-Link (Smart Sensor Profile)

• Light Source: Red light LED

• Housing Type: R200 rectangular compact body

• Connector: M12 4-pin, A-coded

• Protection Class: IP67 / IP69K

• Operating Voltage: 10–30 VDC

• Switching Frequency: Up to 1 kHz

• Teach-In Function: Manual or via IO-Link

• Temperature Range: -30°C to +60°C

• Material: VISTAL™ (high-performance plastic)

Technical Specifications:

• Model Number: OBT650-R200-2EP-IO-V1

• Part Number: 295670-100112

• Sensing Principle: Diffuse mode with background suppression

• Configuration: Via IO-Link or teach button

• Operating Current: Max. 100 mA per output

• Response Time: ≤ 0.5 ms

• Status Indicators: Dual LED for power and output status

• Dimensions: 50 x 40 x 20 mm (approx.)

• Weight: Approx. 50 g

Applications:

• Packaging Lines: Detect product presence and position

• Food & Beverage Industry: Designed to withstand high-pressure cleaning

• Conveyor Systems: Monitor object flow and spacing

• Robotics: Presence detection in fast-moving equipment

• Industrial Automation: Smart sensor integration via IO-Link

Why Choose the OBT650-R200-2EP-IO-V1?

✅ 650 mm diffuse sensing with precise background suppression
✅ IO-Link support for diagnostics and remote configuration
✅ Dual PNP output offers flexible control logic
✅ High IP69K rating for washdown and tough environments
✅ Compact R200 housing with user-friendly installation

Order Now:

In stock and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
