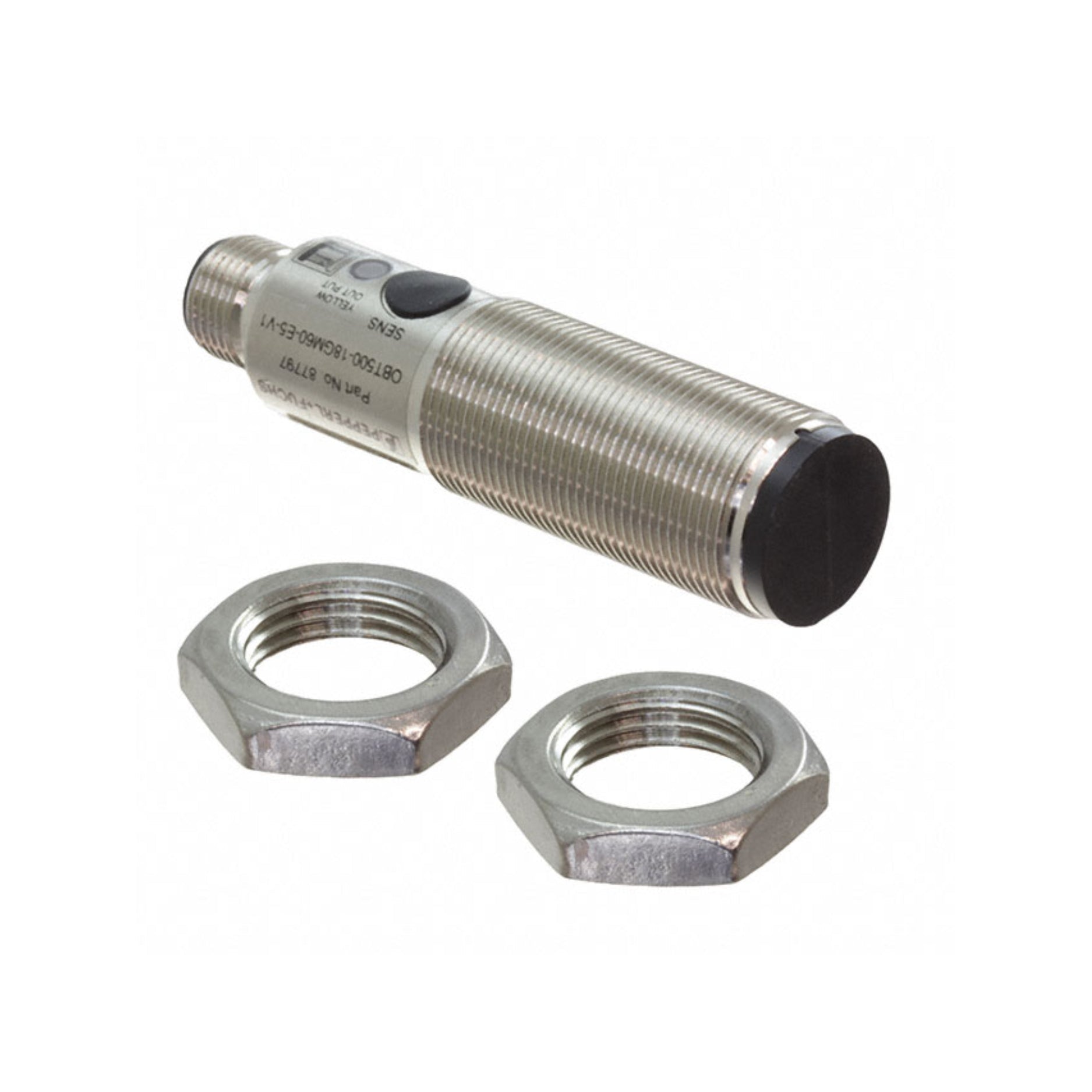

Pepperl+Fuchs OBT500-18GM60-E5-V1 – 500mm Diffuse Mode Sensor, Infrared Light

Pepperl+Fuchs OBT500-18GM60-E5-V1 – High-Performance Diffuse Mode Sensor

Overview

The Pepperl+Fuchs OBT500-18GM60-E5-V1 is a robust diffuse mode sensor designed for reliable detection of objects up to 500mm away. Utilizing an infrared light source, this sensor offers precise and consistent performance in various industrial applications.

Key Features

• Detection Range: 0 to 500mm

• Light Source: Infrared LED (880 nm)

• Output Type: PNP, short-circuit protected, reverse polarity protected, open collector

• Switching Frequency: Up to 500 Hz

• Housing Material: Nickel-plated brass

• Connection Type: 4-pin M12 connector

• Protection Rating: IP67

• Operating Temperature Range: -25°C to 55°C (-13°F to 131°F)

• Indicators: Dual-color LED (yellow/green) for operation and switching state

Technical Specifications

• Model: OBT500-18GM60-E5-V1

• Series: OBT500

• Ambient Light Limit: 10,000 Lux

• Voltage Drop: ≤ 2.5 V

• Operating Voltage: 10 to 30 V DC

• No-Load Supply Current: ≤ 25 mA

• Switching Current: Max. 100 mA

• Response Time: 1 ms

• Time Delay Before Availability: ≤ 25 ms

• Control Elements: Sensing range adjuster

Applications

• Material Handling: Object detection on conveyors

• Packaging Machines: Presence detection in packaging lines

• Automation Systems: Positioning and detection of components

• Robotics: End-of-arm tooling position sensing

Why Choose the Pepperl+Fuchs OBT500-18GM60-E5-V1?

• Extended Detection Range: Capable of detecting objects up to 500mm away

• Durable Construction: Nickel-plated brass housing ensures longevity in industrial environments

• Reliable Performance: High switching frequency suitable for dynamic applications

• Easy Integration: Standard M12 connector for straightforward installation

• Robust Protection: IP67 rating ensures resistance to dust and water

Order Now

The Pepperl+Fuchs OBT500-18GM60-E5-V1 diffuse mode sensor is available for prompt shipping.
