Pepperl+Fuchs OBT350-R100-2EP-IO | 350 mm Diffuse | IO-Link | IP69K

Pepperl+Fuchs OBT350-R100-2EP-IO | Photoelectric Sensor, Diffuse, 350 mm, IO-Link, IP67/IP69K

Overview:

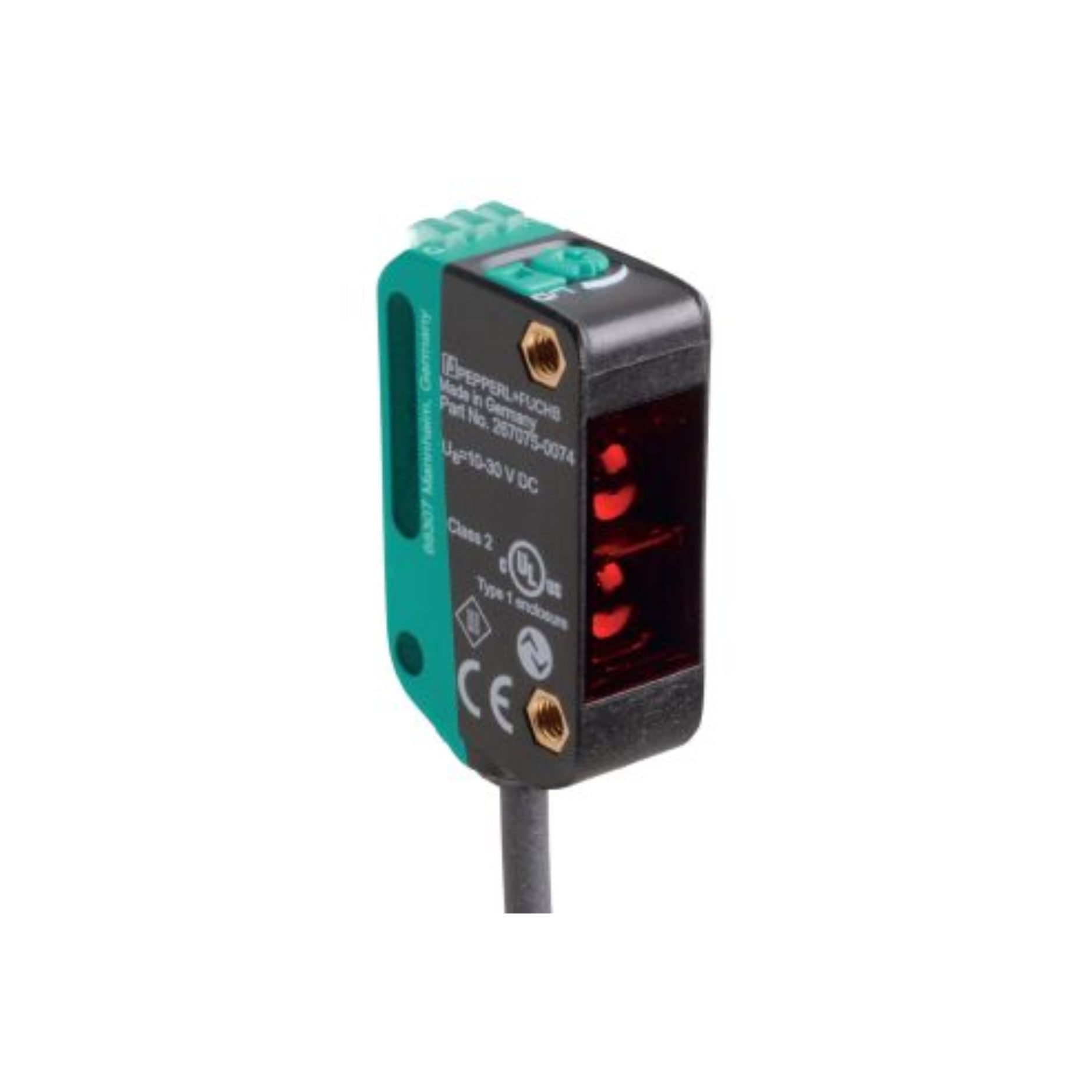

The Pepperl+Fuchs OBT350-R100-2EP-IO (Part No. 267075-0080) is a diffuse mode photoelectric sensor with background suppression and a 350 mm sensing range. Part of the R100 series, it offers dual PNP outputs, IO-Link communication, and is protected with IP67/IP69K, making it ideal for compact installations in harsh or hygienic environments.

Key Features:

• Sensing Distance: 350 mm (with background suppression)

• Output Type: Dual PNP, NO/NC (configurable)

• Communication: IO-Link (v1.1, Smart Sensor Profile)

• Light Source: Red LED, visible light

• Housing Type: Compact rectangular (R100 series)

• Connector: M8, 4-pin male

• Protection Rating: IP67 / IP69K

• Operating Voltage: 10–30 VDC

• Switching Frequency: Up to 1,000 Hz

• Teach-In Function: Manual and IO-Link configuration

• Material: VISTAL™ (high-performance thermoplastic)

• LED Indicators: Power and output status

Technical Specifications:

• Model Number: OBT350-R100-2EP-IO

• Part Number: 267075-0080

• Sensing Principle: Diffuse reflection with background suppression

• Repeat Accuracy: ≤ 5 mm

• Response Time: ≤ 0.5 ms

• Mounting: Through-hole or surface

• Ambient Temperature: -30°C to +60°C

• Dimensions: Approx. 11 x 31 x 18 mm

• Weight: Approx. 15 g

Applications:

• Packaging Machines: Detect object presence and fill levels

• Automation Cells: Compact sensor integration with remote diagnostics

• Robotics: Smart sensor feedback for positioning

• Conveyors: Object detection with tight space requirements

• Food & Beverage: IP69K protection for washdown environments

Why Choose the OBT350-R100-2EP-IO?

✅ Reliable background suppression up to 350 mm
✅ IO-Link support for full configuration and data access
✅ Compact and lightweight for tight machine layouts
✅ Dual PNP output with configurable logic
✅ High IP69K protection for demanding environments

Order Now:

Available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
