Photoelectric Sensor | 300mm | IO-Link | 267075-0059

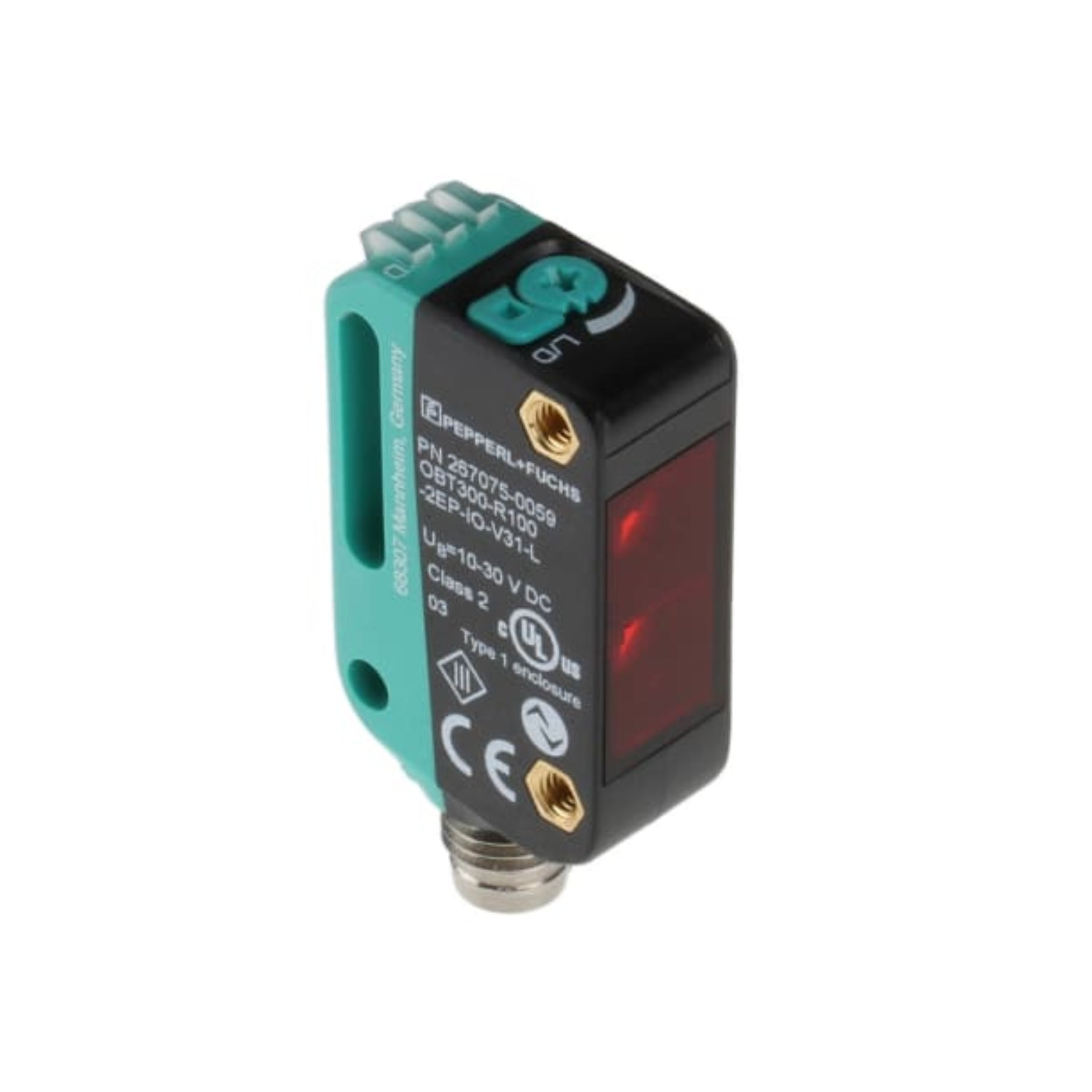

Pepperl+Fuchs OBT300-R100-2EP-IO-V31-L | Diffuse Mode Photoelectric Sensor – 300 mm Range, IO-Link, PNP

Overview

The Pepperl+Fuchs OBT300-R100-2EP-IO-V31-L (Part No. 267075-0059) is a compact photoelectric diffuse sensor from the R100 series, offering a 300 mm sensing range with 2 PNP outputs and IO-Link communication. Engineered for high-speed and space-constrained automation environments, this sensor provides precise object detection, along with advanced configuration and diagnostics via IO-Link.

Equipped with a V31 (M8 4-pin) connector and LED alignment aid, it ensures quick installation and intuitive operation.

Key Features

• Diffuse Mode Sensing – Up to 300 mm range

• Output: 2 x PNP (switching outputs)

• IO-Link Enabled – Advanced diagnostics & parameterization

• R100 Housing – Ultra-compact, flat design

• Alignment Assistance: Integrated LED feedback

• Connector Type: M8 4-pin (V31)

• Light Source: Red light, visible beam

• Protection Rating: IP67

Technical Specifications

• Model: OBT300-R100-2EP-IO-V31-L

• Part Number: 267075-0059

• Sensing Type: Diffuse reflection

• Sensing Distance: 30–300 mm

• Outputs: 2 x PNP, NO/NC configurable

• Communication: IO-Link (V1.1)

• Supply Voltage: 10–30 VDC

• Switching Frequency: ≤ 1 kHz

• Connector: M8, 4-pin (V31)

• Operating Temp: -25°C to +60°C

• Housing Material: Plastic

• Mounting: Front or side, via slotted holes

• Protection: IP67

Applications

• Packaging & Assembly Lines – Compact detection in limited spaces

• Industrial Automation – Fast, reliable object sensing

• Machine Builders & OEMs – Integrated IO-Link diagnostics

Why Choose the OBT300-R100-2EP-IO-V31-L?

• Compact sensor with powerful detection

• IO-Link support for smart factory integration

• Ideal for tight installation spaces and dynamic applications

Order Now

Available and ready to ship globally.
